Thanks David,

A little bit of light reading for me to do on the weekend (my Germans a bit rusty as well, but the level of detail is amazing).

Thanks David,

I have gone through these plans a bit and the level of detail is amazing. Thanks so much for your input!

Am I right in assuming that the cross-section drawings are internal? They seem to be missing details on armour/torpedo belt details etc.

Regards,

Mike

I have actually still been working on this. I better provide some updates

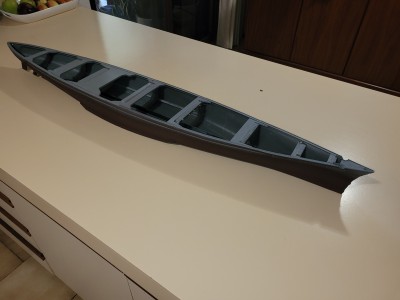

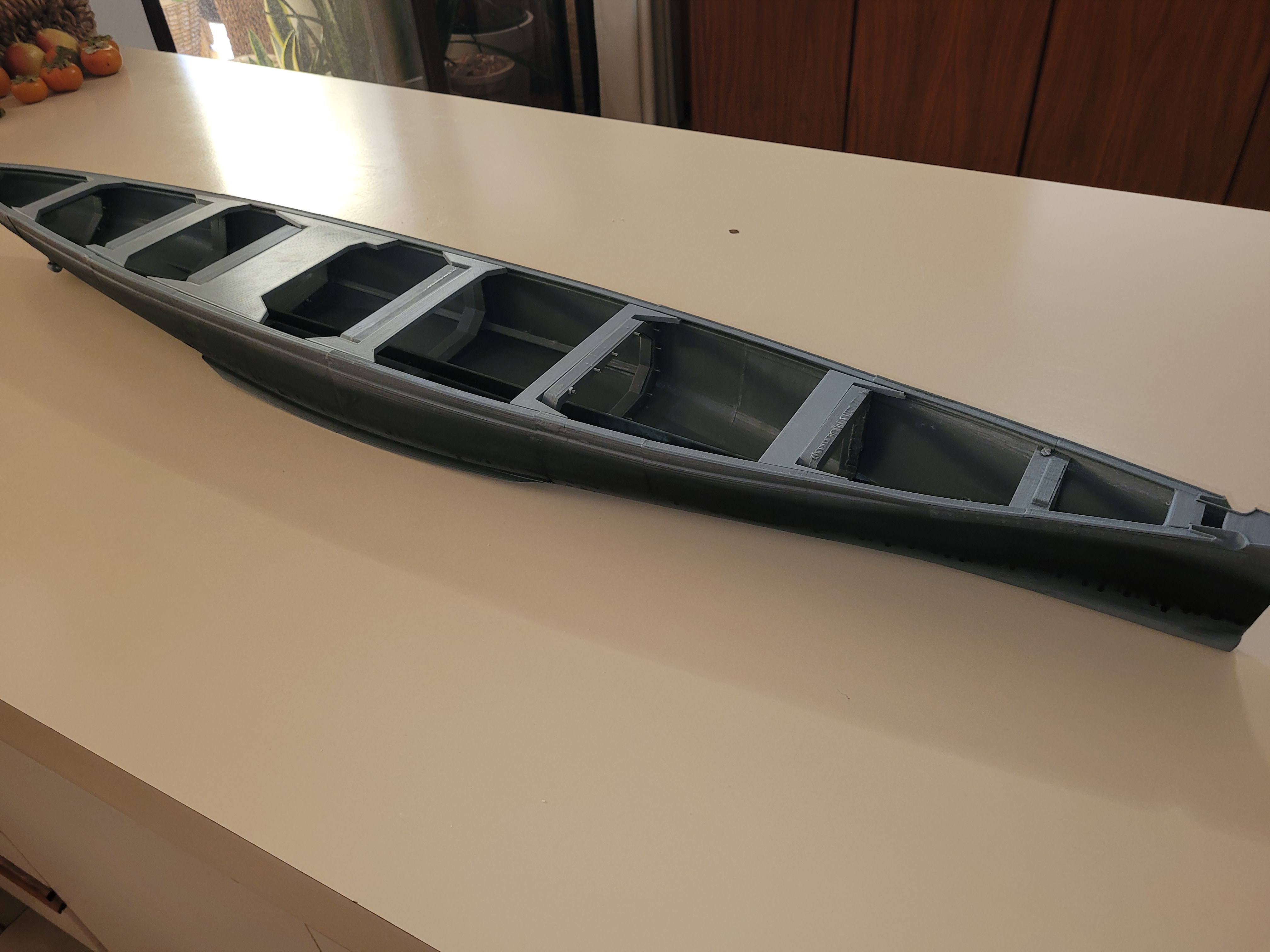

So the hull got stuck together , cleaned up and looks like this:

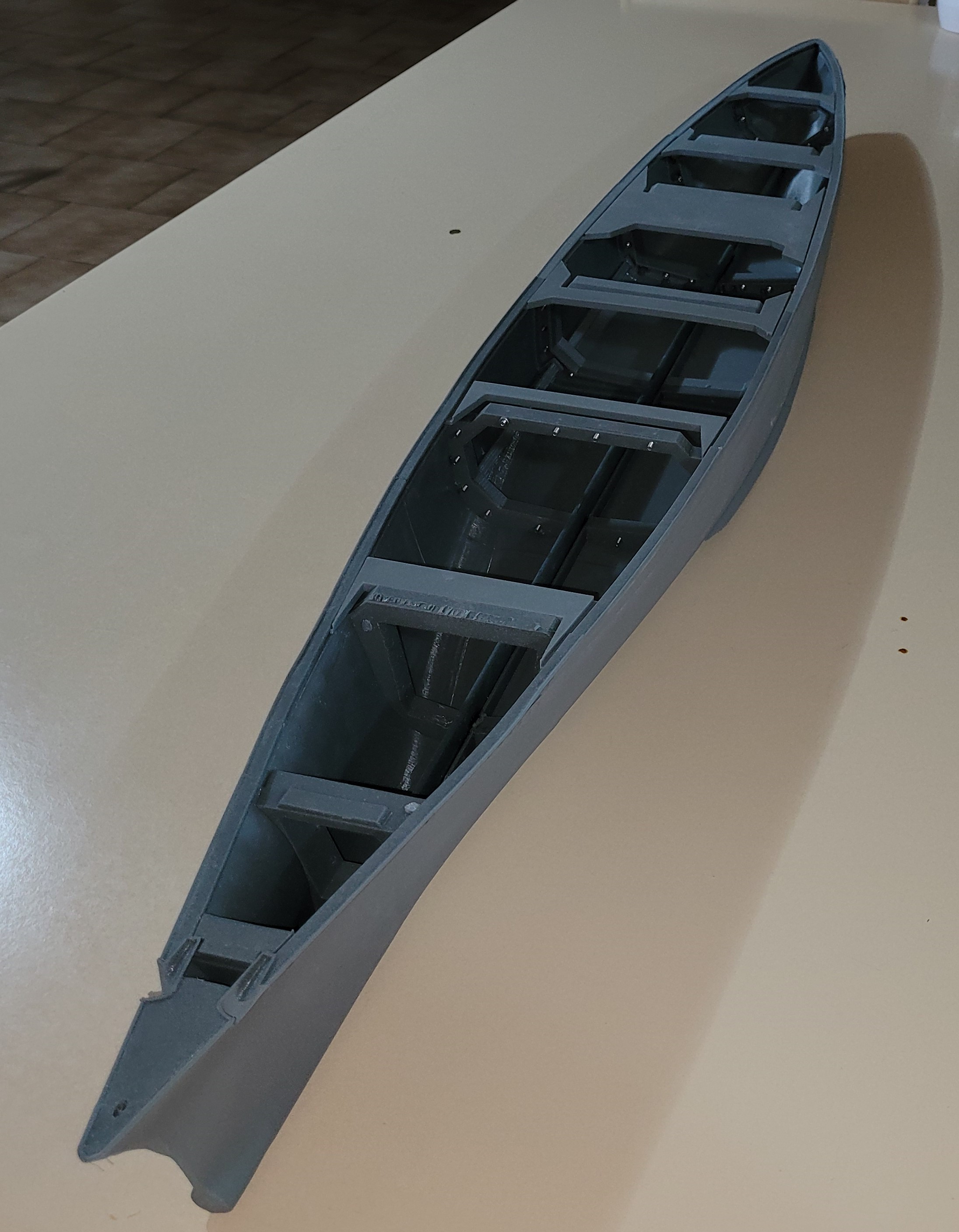

With cross sections and deck supports:



So the first thing to do is to apply the black waterline band. Just a rough shot of black will do:

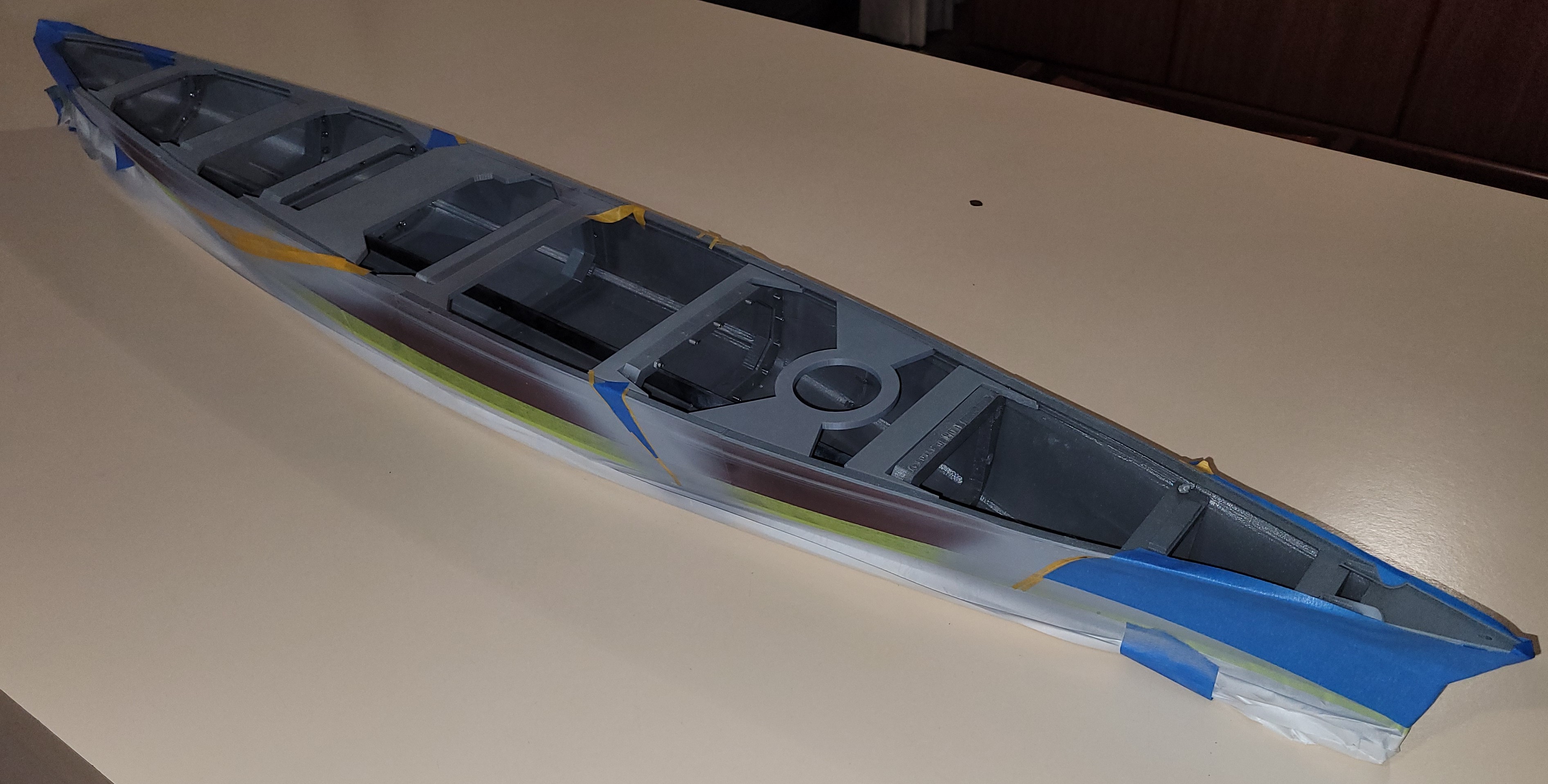

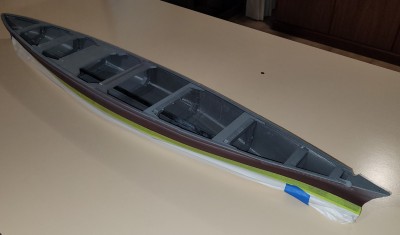

Then some careful masking:



Shoot the hull red:

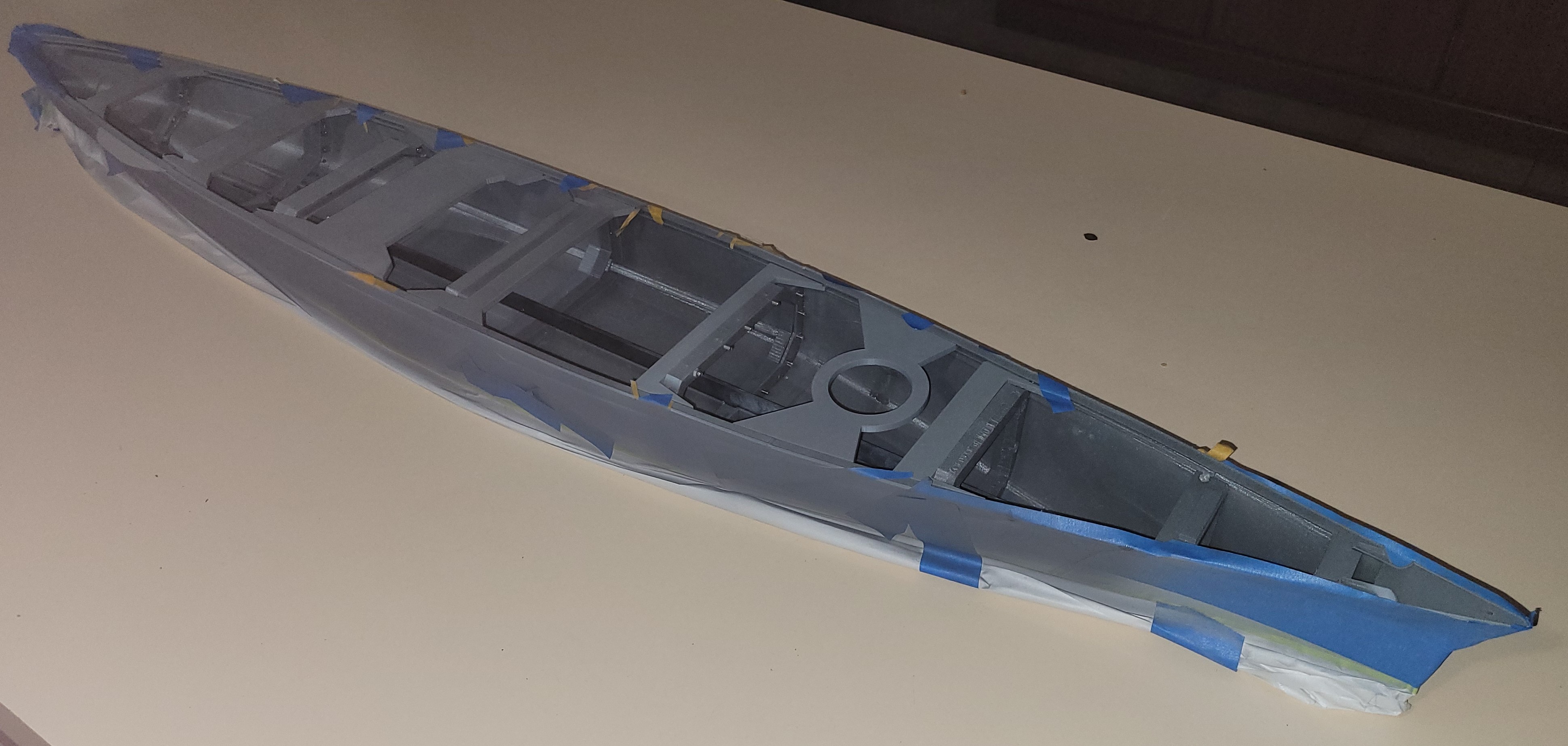

Then mask of the red paint:

Shoot the first tone of Hull Grey:

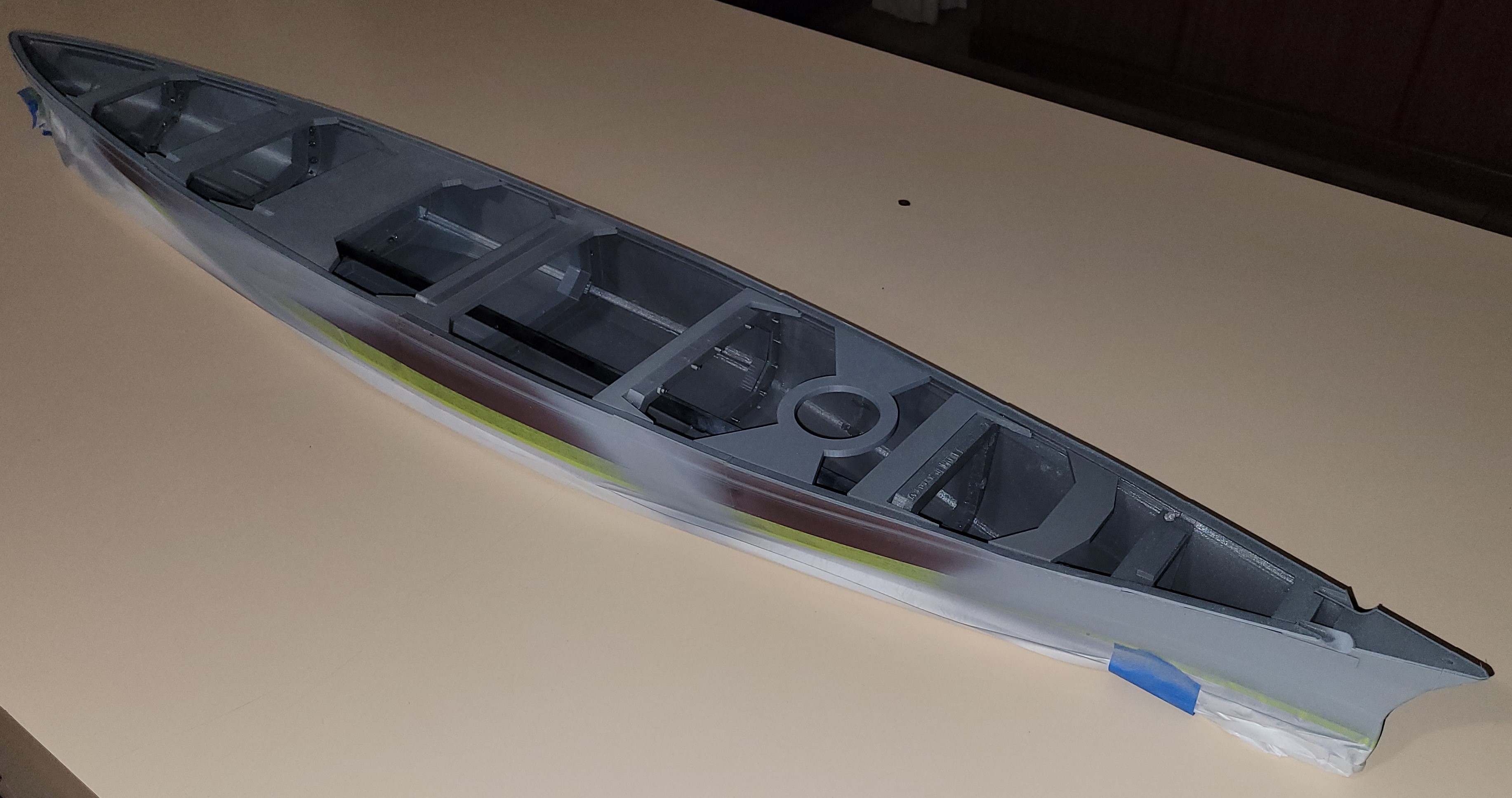

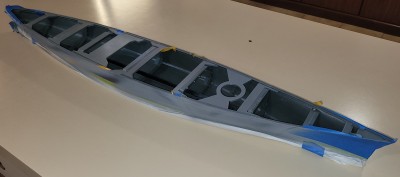

Then mask of the first tone grey that we want to keep:



Shoot the second tone of grey:

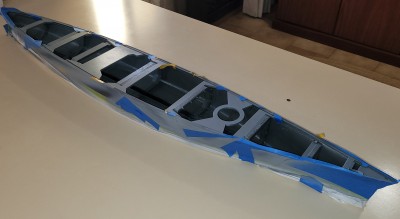

Then mask the bits of that we want to keep:



Spray the third tone of grey:

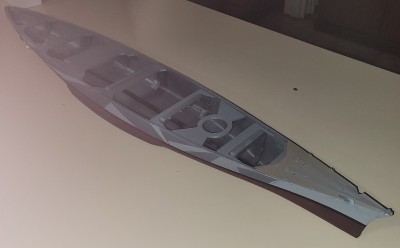

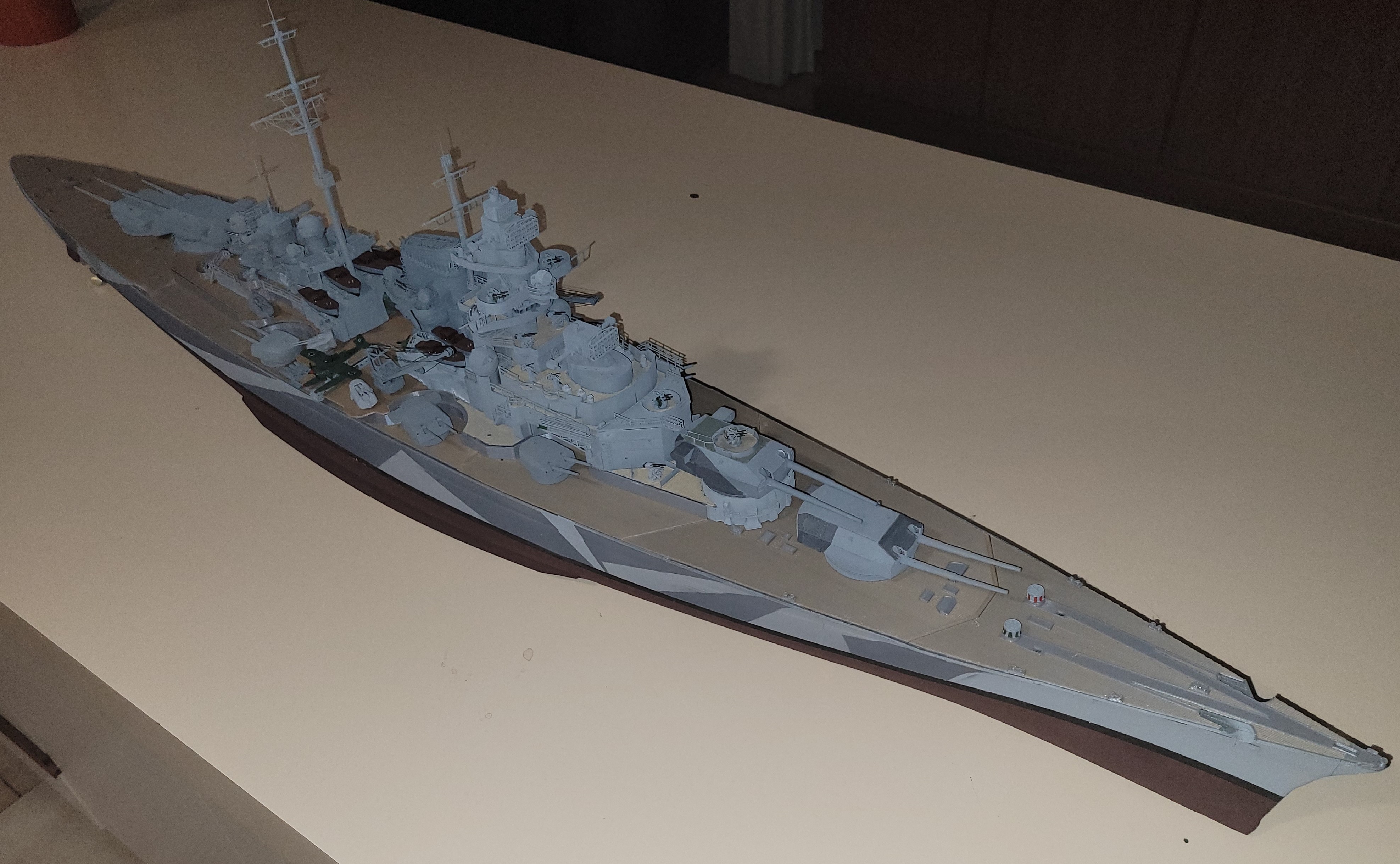

Let it dry and finally we can remove the masking to see what we have:

Now I start adding the deck prints:

Part 1:



Part 2:



And so on until all in place:



Which sort of completes the hull. One or 2 smaller bits of detail to be added.

The ship is basically 4 parts:

Hull

Forward control deck superstructureHull

Hangar deck superstructure

Rear control deck superstructure

Now I start adding the deck prints:

Part 1:



Part 2:



And so on until all in place:



Which sort of completes the hull. One or 2 smaller bits of detail to be added.

The ship is basically 4 parts:

Hull

Forward control deck superstructureHull

Hangar deck superstructure

Rear control deck superstructure

On to the rear control deck.

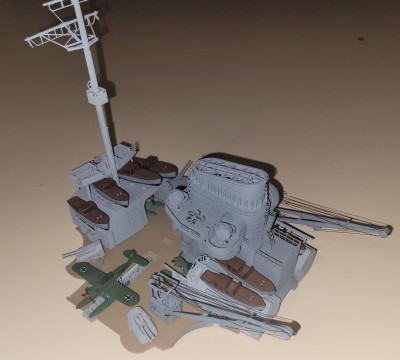

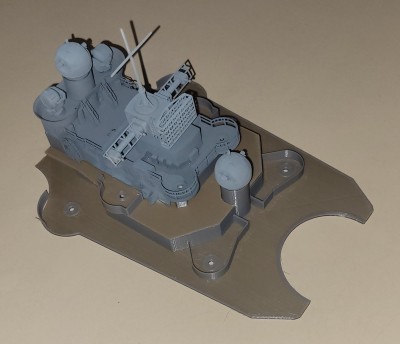

This is a mix of filament and resin print parts. Decks are printed in gray filament with 2 layers of wood filament for the planking levels which involves 2 filament swaps during the print. (start in gray, swap to wood, swap to gray)



Cyanoacetate fixes all the parts together really well.



And slowly add extra pieces to give it a bit more oompf:



Then it can be added to the hull along with other bits of detail:

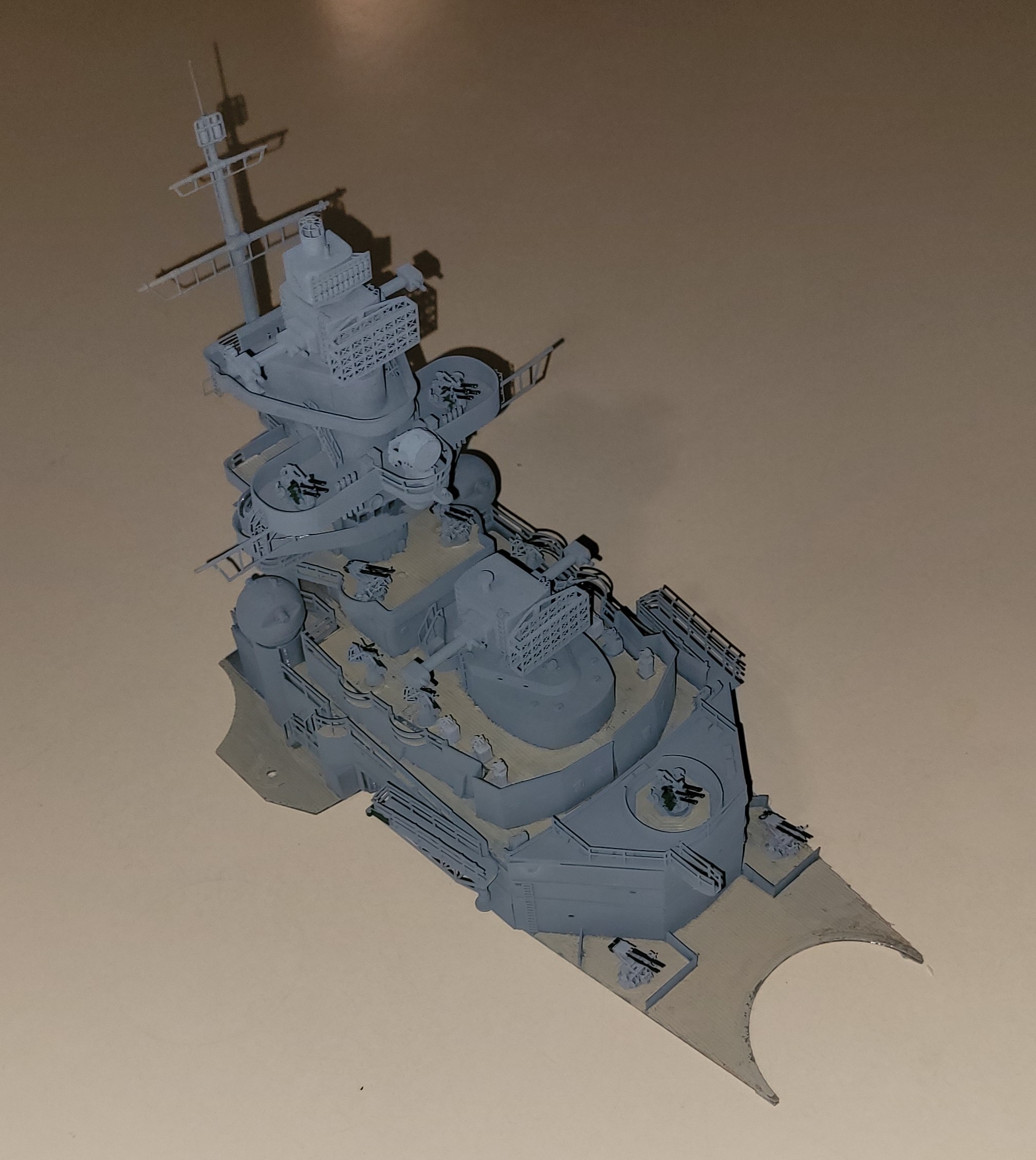

Forward superstructure gets the same treatment:



Then can be attached to the hull (I am leaving it separate at the moment as it makes addition of extra detail and painting easier):

Lastly the Hangar Deck:



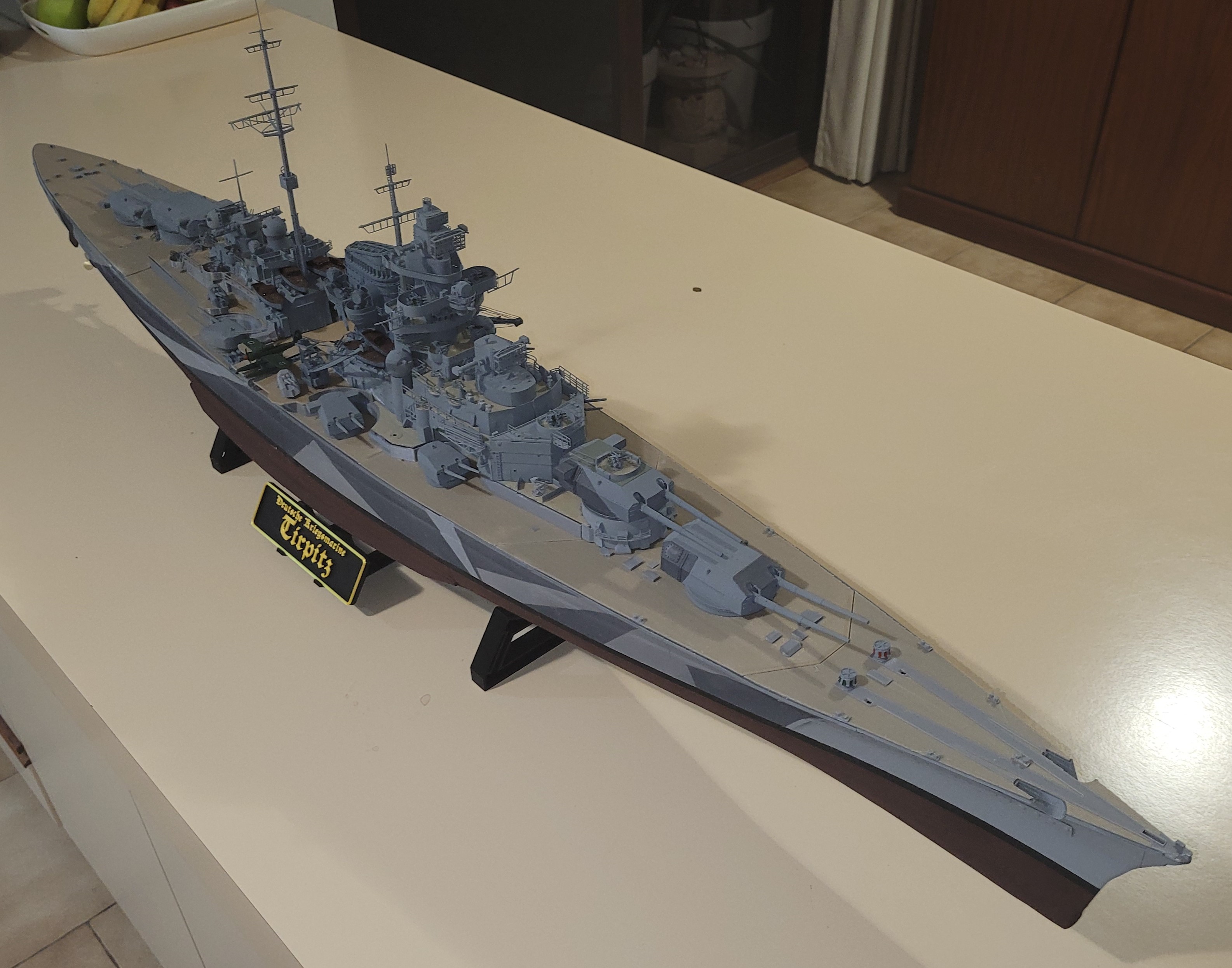

In place and nearly ready to go:



Or at least on stand(by)



Now I just have a ton of small detail to add and more painting to go.
