Hello,
five year ago I begun to build the "HMS Furious" in 1:200.
I've the plan of the "HMS Furious" as a large light cruiser with a fly-off-deck Forward and
two original planes from the "Royal Maritim Library". These are the "Rigging Plan" and a plan of the flight-deck. I 've a lot of Pictures of the ship and the planes too.

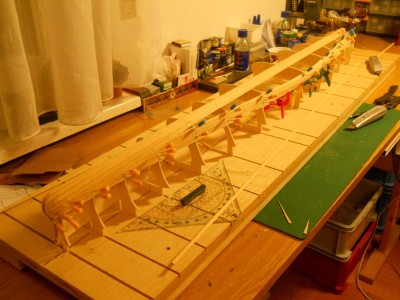

First, I've built the hull with Wood and fibre-glass:
Attachment:
Hull_1.jpg [ 122.9 KiB | Viewed 1347 times ]
Attachment:
DSCN3566_1.jpg [ 105.06 KiB | Viewed 1347 times ]
Attachment:
Rumpf.JPG [ 70.56 KiB | Viewed 1347 times ]
The superstructure is from Polystyrol and self-made resin parts:
Attachment:
Aufbau1.JPG [ 68.69 KiB | Viewed 1347 times ]
Attachment:
Aufbau2.JPG [ 62 KiB | Viewed 1347 times ]
The planes:

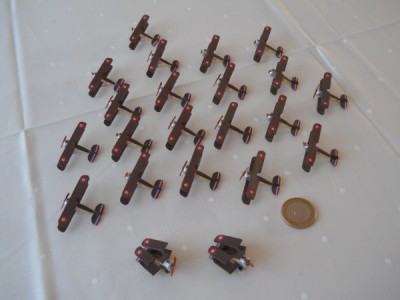

I bought a paper-model of the sopwith-pub in scale 1:24 and I reduced the print to the scale 1:200. After that I made one model and the reproduction with a form and resin:
Attachment:
Flugzeuge_Einzelteile.JPG [ 109.65 KiB | Viewed 1347 times ]
Attachment:
Flugzeuge1.JPG [ 77.4 KiB | Viewed 1347 times ]
Attachment:
Flugzeuge2.JPG [ 91.14 KiB | Viewed 1347 times ]

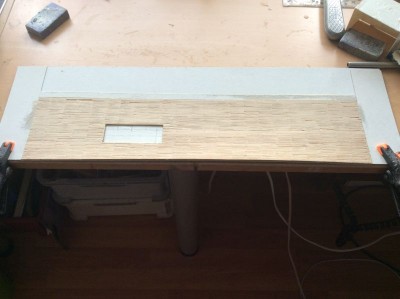

After this the shipbuilding had a rest for four years!. One reason was that I was sure that the flight-deck of the "HMS Furious" was a wooden-deck but I had no proof. After visiting the "Imperial War Museum" in London and the web-site, I found the proof in Pictures and literature about the first aircraft-carrier. So I begun to built the deck with wooden-stripes of 0,8 mm thickness and 40 mm length:
Attachment:
Flight_Deck1.jpg [ 50.2 KiB | Viewed 1347 times ]
Yours
Chrissi
