Tracy, thank you for the cleaned up BOGP for Lex. Very interesting, I have spent a few hours going over them!

But they bring questions:
The profiles show a "stern light" mounted on the bow. Was that there after the 1942 refit?
It also shows port or starboard running lights on the hull just above the last boat pockets. seems like a strange place for them, but I did not see anyone the island.

The openings Trumpeter has in the hull, 9 to port and 26 to starboard, the plans only list 6 of them on the port side as "vent door". As a modeler, how are they handled? Should they be backed by plastic sheet, have doors added to them, if they are open on the stb side are there rails inside the larger openings?

Flight deck lights and stern deadlights. were these plated or painted over or left operational? if operational, any ideas for depicting that in 1/350 scale?

Last question, I have done google searches (frustrating) for pictures and videos of Paul Allens exploration of her wreck, all I get are about 15 or so different pictures. Considering how long they spent over the wreck there must be more than that.
Any pointers as where to look?

Thanks!
Daniel

_________________
Dan
Field Artillery, King of Battle
Please check out the Secret Society of Model Builders on facebook.

This is the Trumpeter, 1/350, USS Lexington kit.

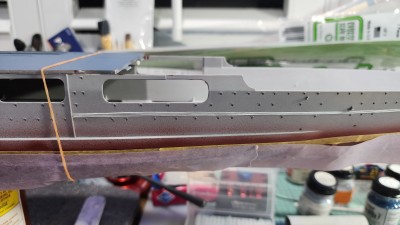

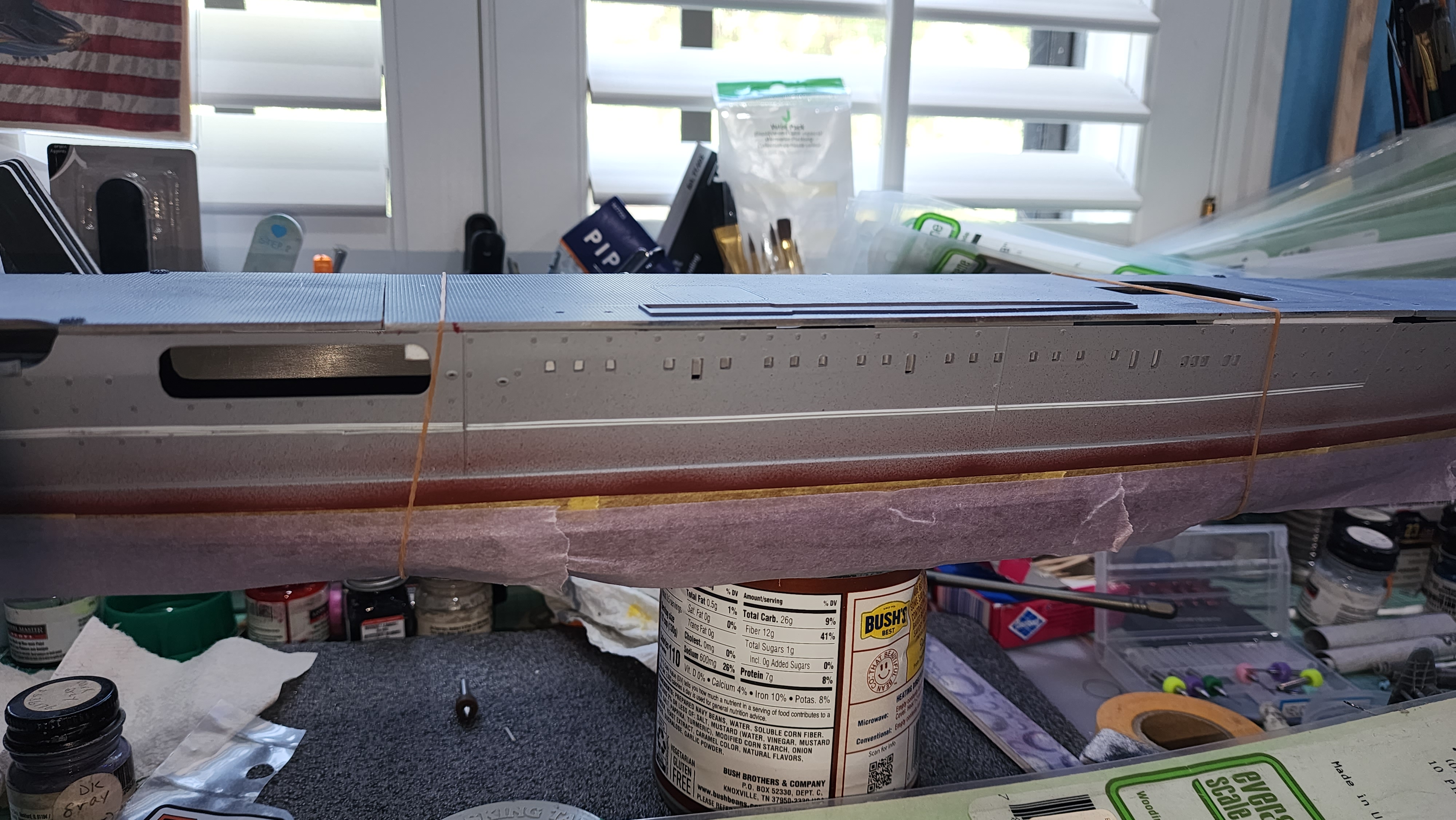

I am trying to replicate the degaussing cables on Lex. There are not a lot of pictures to go by. And they are of the Starboard side. Was the port side a mirror image? I hope so.
I am using the pictures of Enterprise to guesstimate a layout for Lex.
Looks ok to me, so far.

_________________
Dan
Field Artillery, King of Battle
Please check out the Secret Society of Model Builders on facebook.

Has anyone successfully used the Nautilus wood deck with the 1/350 Lexington? The top of the hull seems like it really needs the stability provided by a properly attached plastic deck, but the Nautilus deck is far to thick to go on top of the kit deck. It almost seems as if I would need to first create a thin deck out of styrene, attach it to the hull and then put the Nautilus deck on top. The deck looks great just not sure if it is ultimately worth the effort.

Your guess is as good as anyone else's There are some picture in Stern's Lexington Class book, which seem to show the number of cables varied, depending where on the hull they were.

Chris Smithers built a 1/350 Lex and made an educated guess on the degaussing cable here: http://www.modelshipgallery.com/gallery ... index.html

His cables terminate at some point, though photos seem to show (IMO) that these angle up near the bow, under the forward 5 inch gun platforms.

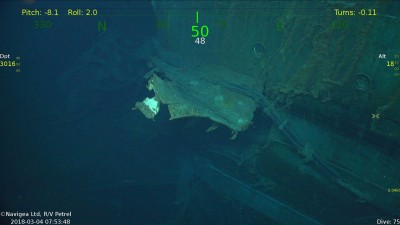

There are wreck photos too, but they only show snippets of the cable.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne
