Thank You and no problem. Glad to be of help.
There is so much more information I can remember, but it would be typing allot here. LOL
Any questions feel free to ask and if I can answer to help out I will.

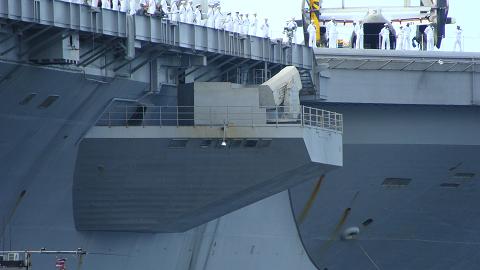

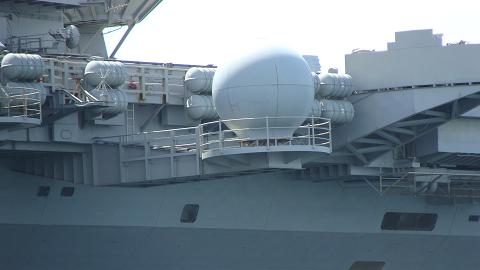

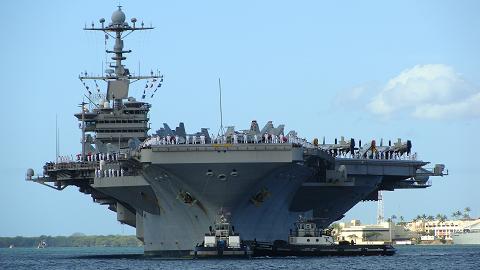

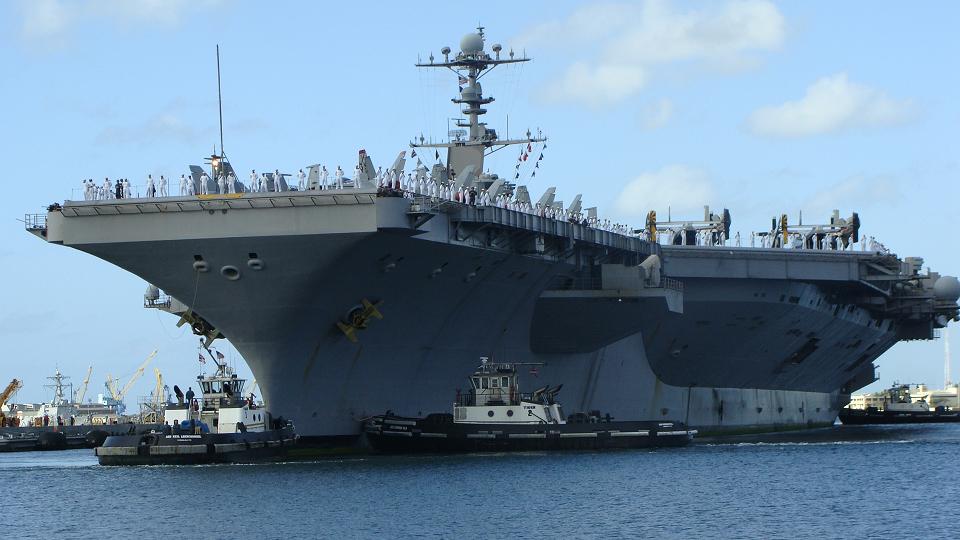

Just finished a 2 week trip to Pearl Harbor-Hickam. Was fortunate to catch the Stennis arriving at Pearl. What sight it was. Enjoy the pics...

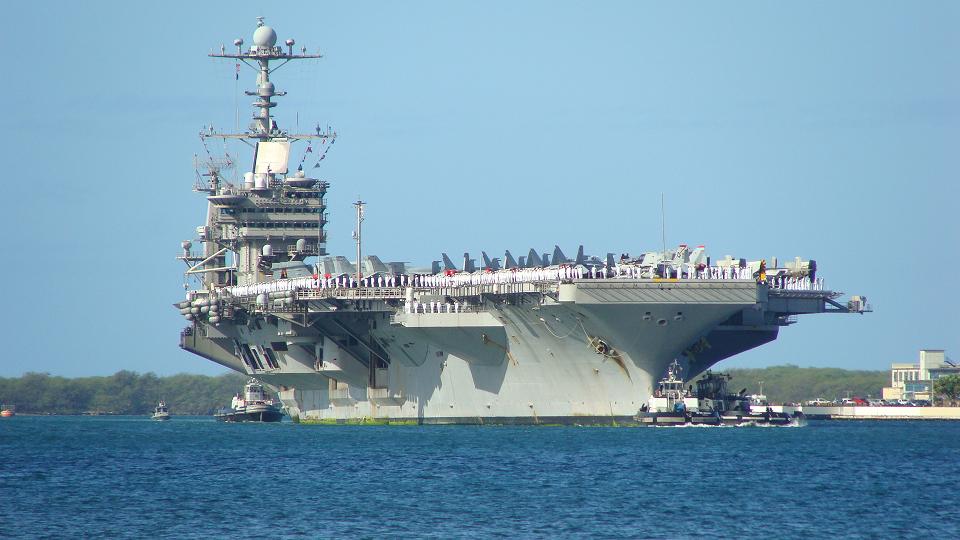

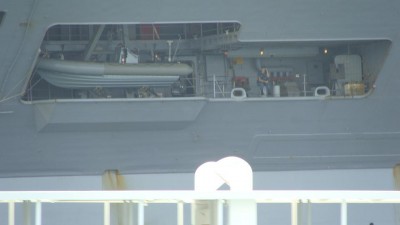

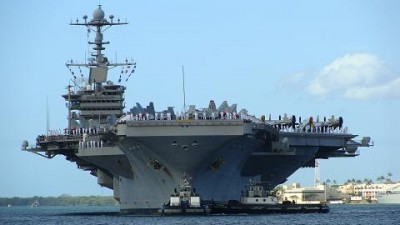

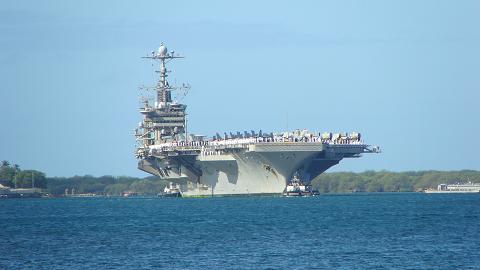

More Pics of the Stennis at Pearl

I was going through some old pics from 2008 on Nimitz and came across this. Its the crash rescue training bird.


DSC_3042 by gistsc, on Flickr

Scott

_________________
Scott Gist

Current build.
Tamiya 1/350 Scale USS Enterprise, 2001
http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=102167

Can someone tell me if these aircraft movers were used on the first cruise? (76-77) This pic was taken around 79-80.

_________________
_________________
James

http://www.modelshipgallery.com/gallery/users/James-Guard/user-index.html

of Nimitz class carriers?
TIA, Richard

Its a "bumper" for boats when in port.

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984

Bumper and dock - the bottom of the cage is a steel mesh area where people can step off from the boats and onto an attached ladder (two, actually) that leads into the hull.

_________________
De quoi s'agit-il?

Any good schematics containing mulitple cross sections from a CVN-71?

[quote="DennisJP"
I'am sure you miss it just as I do! [/quote]


I would like to ride a carrier for about a week. Get some more photo's, eat a little "dog" after meals. But that is about it. I am still doing the reserve thing with 7th Fleet so I might try to work a week or two on the GW for an exercise if I can.

does anyone happen to know the jet blast defector dimensions? I am particularily interested in the port side installation. Thanks in advance...

_________________
NIKOS (NICK)
ΜΕΓΑ ΤΟ ΤΗΣ ΘΑΛΑΣΣΗΣ ΚΡΑΤΟΣ
(GREAT IS THE NATION THAT MASTERS THE SEAS)

Jane's 1980-81 has a drawing of CVN-68 in her as built config in 1:1800 scale. The JBDs for cats 3 (6 sections like 1 & 2) and 4 (only 2 sections) are:

1:1800 = 2mm x 3.5mm and 2mm x 6mm
1:1 = 3,600mm x 6,300mm and 3,600mm x 10,800 mm
1:1 = 11.81' x 20.67' and 11.81' x 35.43'

http://www.worldwidemetric.com/measurements.html

Need a specific ship/time?

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984

thanks a lot for the reply. That info serves me well enough...

_________________
NIKOS (NICK)
ΜΕΓΑ ΤΟ ΤΗΣ ΘΑΛΑΣΣΗΣ ΚΡΑΤΟΣ
(GREAT IS THE NATION THAT MASTERS THE SEAS)

guys,

I have a few questions regarding 68 herself:

1 When was the lattice radar tower entirely closed up (or even replaced)?
2 When was the SPS43 radar replaced by the present SPS49? I would love to have an SPS49 atop a lattice tower (which took me forever to cut out), but I'm quite positive it never happened.
3. When did the first Hornets touch down on Nimitiz? I get the idea it was in the '90s



Thanks in advance

_________________
Ta,

Shiprat

The F/A-18s showed up in the Fall of 1990 as we were working up to deploy to Desert Storm with CVW-9. VFA-146 and VFA-147 transitioned from A-7s to Hornets in 1989/1990. They missed the ride around the Horn CVW-9 made on Conny in the Winter of 1990 along with VF-211 and VF-24 when they transitioned from F-14As to F-14A+ ( eventually designated F-14B). We took VF-33 and VFA-82 on that trip with the rest of CVW-9. I was flying in the back of E-2C+ Hawkeyes with VAW-112.


MM

Thanks Mark,

that resolves the Hornet issue. A least I don't have to get rid of my stash of kits.

You don't recall what the radar tower looked like in that time?

_________________
Ta,

Shiprat

Probably since the 1998(?) to 2001 refit. You might want to check the Nimitz pages over at navsource (->http://www.navsource.org/archives/02/68.htm). Unfortunately, they are currently down (a rather frequent issue with navsource).

Michi

_________________
ROMANES EVNT DOMVS!

Here are some enlightening photos from NAVSOURCE.

This pick is from 1985. Looks like SPS-49 with the old tower.

http://www.navsource.org/archives/02/0268aeb.jpg

Nimitz did a Complex Overhaul Jun 1983-Jul 1984 so I am guessing that is when she got the SPS-49

1997 with the same layout

http://www.navsource.org/archives/08/0876003.jpg

The new tower when she came out of RCOH in 2001,

http://www.navsource.org/archives/02/026815.jpg

and a better shot of it in 2003.

http://www.navsource.org/archives/02/026817.jpg


Hope that helps,

MM

Thanks Michi and Mark; you've answered some serious questions for me. As soon as Navsource is up I'm going to have a squizz at them.

_________________
Ta,

Shiprat

I have uploaded some photos to Photobucket from my week long visit to the Harry S. Truman last August. Links are also included to albums containing photos of other ships we passed along the way.

http://s488.beta.photobucket.com/user/n ... ber%202012
http://s488.beta.photobucket.com/user/n ... ust%202012
http://s488.beta.photobucket.com/user/n ... ust%202012

And finally some photos from my June 2012 visit to the National Naval Aviation Museum
http://s488.beta.photobucket.com/user/n ... une%202012

Hopefully there is something of interest in these.

Nick
