oldmodeller2024
PostPosted: Tue Jun 11, 2024 10:08 am
Offline

Joined: Tue Jun 11, 2024 9:53 am
Posts: 8
Good morning everyone. I’ve been away from modellung for many years and it’s nice to be back. I ha the Revell 1:426 Arizona and would like to modify it to match the ship as she came off the slips originally. Does anyone know of any good resources for this?

Thanks lots :wave_1:

_________________
On the slips: BB-39 USS Arizona ( Revell 1:429 ,1916 as built conversion )
Top
 Profile
Reply with quote
FFG-7
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Tue Jun 11, 2024 7:30 pm
Offline

Joined: Wed Mar 13, 2024 9:45 am
Posts: 529
try this,
BB-39 USS Arizona Technical Drawings (1915) https://archive.org/details/bb39ga1915
BB-38 USS Pennsylvania Booklet of General Plans (1927) https://archive.org/details/bb38bogp1927
is actually 1/429 scale not 1/426 scale. viewtopic.php?f=84&t=286900
it can be done but depends on how much correction you want to do to achieve that goal.
go thru this link https://cs.finescale.com/fsm/modeling_s ... 93339.aspx as somebody is doing somewhat that.
BB-39 USS ARIZONA http://www.navsource.org/archives/01/39a.htm
BB-38 USS PENNSYLVANIA http://www.navsource.org/archives/01/38a.htm
Top
 Profile
Reply with quote
oldmodeller2024
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Tue Jun 11, 2024 9:11 pm
Offline

Joined: Tue Jun 11, 2024 9:53 am
Posts: 8
Thanks. I was originally just going to build it as is, but while researching paint schemes it occurred to me that I wasn’t seeing any pre 1929 refit models. Yeah it’ll take a lot of work, but combining an engineer with OCD habits I just have to do this. :cool_1:

Oldmodeler2024

_________________
On the slips: BB-39 USS Arizona ( Revell 1:429 ,1916 as built conversion )
Top
 Profile
Reply with quote
FFG-7
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Tue Jun 11, 2024 10:15 pm
Offline

Joined: Wed Mar 13, 2024 9:45 am
Posts: 529
you will have to correct the stern as it is currently concave in shape when it should be convex in shape. also you will have to remove the wannabe torpedo bulges, fix the resulting gaping holes & install the armor belt that is somewhat missing because of the torpedo bulges. I did that for my 1939 USS Tennessee using Revell's 1/429 scale Arizona as a base as shown here.
the bottom picture in this link http://www.researcheratlarge.com/Ships/ ... B39_09.jpg shows the armor belt you would need to add to the model.


Attachments:
Tennessee starboard.JPG
Tennessee starboard.JPG [ 47.39 KiB | Viewed 3678 times ]
Top
 Profile
Reply with quote
oldmodeller2024
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Fri Jun 14, 2024 12:57 pm
Offline

Joined: Tue Jun 11, 2024 9:53 am
Posts: 8
A question about the torpedo bulges. If I’m reading the right info, Arizona had an original beam of 97’. After measuring the hull beam of the model I get 2.8 inches. 97’ works out to a scale (1:429) 2.713”. Can someone back check this for me? It looks like the model does not include the torpedo bulge.

Thanks

Oldmodeller2024

_________________
On the slips: BB-39 USS Arizona ( Revell 1:429 ,1916 as built conversion )
Top
 Profile
Reply with quote
FFG-7
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sat Jun 15, 2024 9:35 am
Offline

Joined: Wed Mar 13, 2024 9:45 am
Posts: 529
the bulges are there but not completely there but does show the bulges outline. as you are doing the model as when the ship became commissioned then she did not have the bulges.
Top
 Profile
Reply with quote
oldmodeller2024
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sun Jun 16, 2024 2:09 pm
Offline

Joined: Tue Jun 11, 2024 9:53 am
Posts: 8
Ok I see the outlines now. Thanks

Oldmodeller2024

_________________
On the slips: BB-39 USS Arizona ( Revell 1:429 ,1916 as built conversion )
Top
 Profile
Reply with quote
FFG-7
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sun Jun 16, 2024 2:31 pm
Offline

Joined: Wed Mar 13, 2024 9:45 am
Posts: 529
no problem. once you are ready, you should post your build in "Works in Progress" at this link. viewforum.php?f=59
Top
 Profile
Reply with quote
oldmodeller2024
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Tue Jun 18, 2024 11:26 am
Offline

Joined: Tue Jun 11, 2024 9:53 am
Posts: 8
My goodness, just realized the modernization moved the 5”/51 guns up one deck. Moving them back down is beyond my skills right now. So I’ll build it probably as a 1930’s instead of the 1941 arrangement. I’ll definitely build one out in the 1916 as built arrangement when I feel more comfortable. ☹️

_________________
On the slips: BB-39 USS Arizona ( Revell 1:429 ,1916 as built conversion )
Top
 Profile
Reply with quote
FFG-7
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Tue Jun 18, 2024 11:52 am
Offline

Joined: Wed Mar 13, 2024 9:45 am
Posts: 529
correcting the stern would be more of a challenge then lowering those guns into the hull.
BB-39 USS Arizona Technical Drawings (1930) https://archive.org/details/bb39ga1930/mode/2up
BB-39 USS Arizona Booklet of General Plans (1928) https://archive.org/details/bb39bogp192 ... 1/mode/2up
Top
 Profile
Reply with quote
Jeff Sharp
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Fri Aug 02, 2024 9:06 pm
Offline

Joined: Mon Jan 07, 2008 10:15 pm
Posts: 1000
Here is a rare look inside of USS Arizona's range finder that was high up on the superstructure over looking the two forward turrets. This is a colorized shot looking into the backside of the range finder. You can see the french style doors are open on the back exposing the chairs the crew sat in to man the range finder. This would be a cool little detail to add to a 1/200 kit.

Top
 Profile
Reply with quote
ArizonaBB39
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Wed Aug 14, 2024 6:03 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 1321
Location: Tempe, Arizona

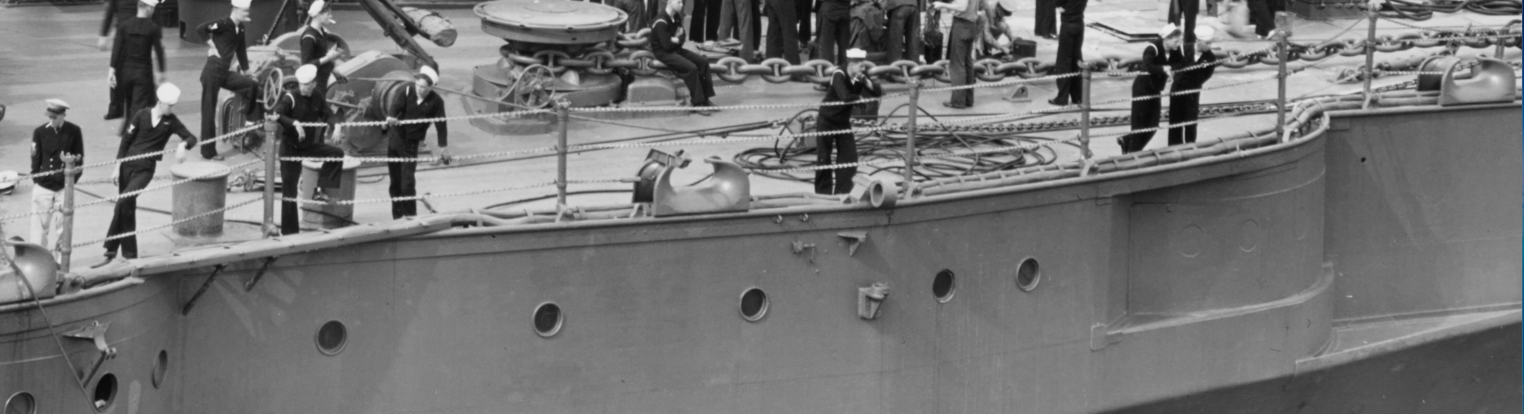

I was looking at the pictures of Pennsylvania from February 1942 and noticed something about the way her degaussing cables were run and was curious if Arizona's could have been the same? They run along the deck edge spillways, but I noticed at the casemates, except for the forward most, they actually go out over the edge on trays, instead of following the contour of the deck. Other than the addition of the 20mm guns and their associated platforms and the move of the aft 1.1" gun and tub up to boat deck level Pennsylvania is basically in the same configuration as she was at Pearl Harbor, right?

Attachment:
File comment: Bow, you can see the forward most follows the contour, but the other one doesn't
Screenshot 2024-08-14 155312.png
Screenshot 2024-08-14 155312.png [ 586.76 KiB | Viewed 3109 times ]


Attachment:
File comment: Stern, both go out on trays
Screenshot 2024-08-14 155232.png
Screenshot 2024-08-14 155232.png [ 381.31 KiB | Viewed 3109 times ]


Attachment:

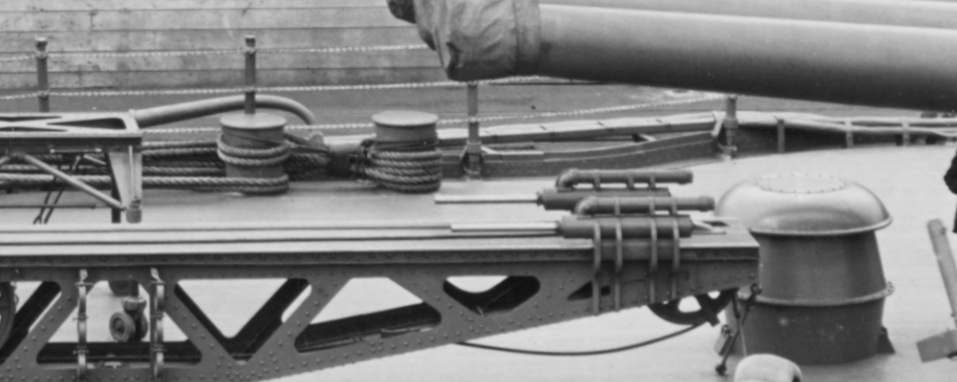

File comment: Looking across the deck you can see the cables go up and over onto the tray.
Screenshot 2024-08-14 160600.png
Screenshot 2024-08-14 160600.png [ 288.37 KiB | Viewed 3108 times ]

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page
Top
 Profile
Reply with quote
MartinJQuinn
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Wed Aug 14, 2024 6:36 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8363
Location: New Jersey
ArizonaBB39 wrote:
I was looking at the pictures of Pennsylvania from February 1942 and noticed something about the way her degaussing cables were run and was curious if Arizona's could have been the same? They run along the deck edge spillways, but I noticed at the casemates, except for the forward most, they actually go out over the edge on trays, instead of following the contour of the deck. Other than the addition of the 20mm guns and their associated platforms and the move of the aft 1.1" gun and tub up to boat deck level Pennsylvania is basically in the same configuration as she was at Pearl Harbor, right?


Discussed here: viewtopic.php?f=47&t=12942&start=1980#p744178

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery
Top
 Profile
Reply with quote
ArizonaBB39
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Wed Aug 14, 2024 8:54 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 1321
Location: Tempe, Arizona
MartinJQuinn wrote:
Discussed here: viewtopic.php?f=47&t=12942&start=1980#p744178


Doh, thanks Martin. I should've guessed this was already discussed. The Photobucket water marks make it hard to see some parts, but based on the photos it looks like Arizona's followed the contours the whole way. An interesting detail for a Pennsylvania build, though.

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page
Top
 Profile
Reply with quote
Jeff Sharp
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Fri Oct 18, 2024 3:32 pm
Offline

Joined: Mon Jan 07, 2008 10:15 pm
Posts: 1000
Here is a nice detailed look at Arizona's Mainmast levels in 1935. Yes, it is colorized but shows some great detail of the different deck levels. The camera was positioned on the Superstructure's Range Finder Platform and is looking aft over the smokestack at the Mainmast. On the far right of this shot is the Searchlight that was positioned at the rear of the Rangefinder Platform. The black objects in the middle of this shot are all the different vents and the whistle on top of the smokestack.

The blue dot on this next photo indicates where the camera was positioned.
Top
 Profile
Reply with quote
Jim Azelton
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Fri Oct 25, 2024 4:14 pm
Offline

Joined: Fri Jun 10, 2011 11:08 am
Posts: 26
@JeffSharp

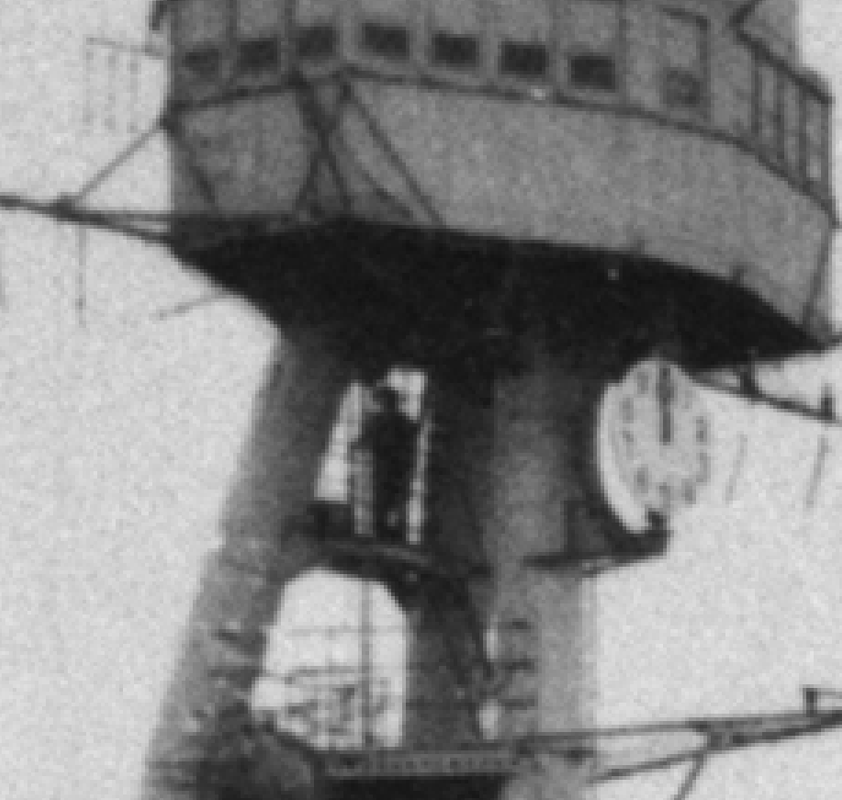

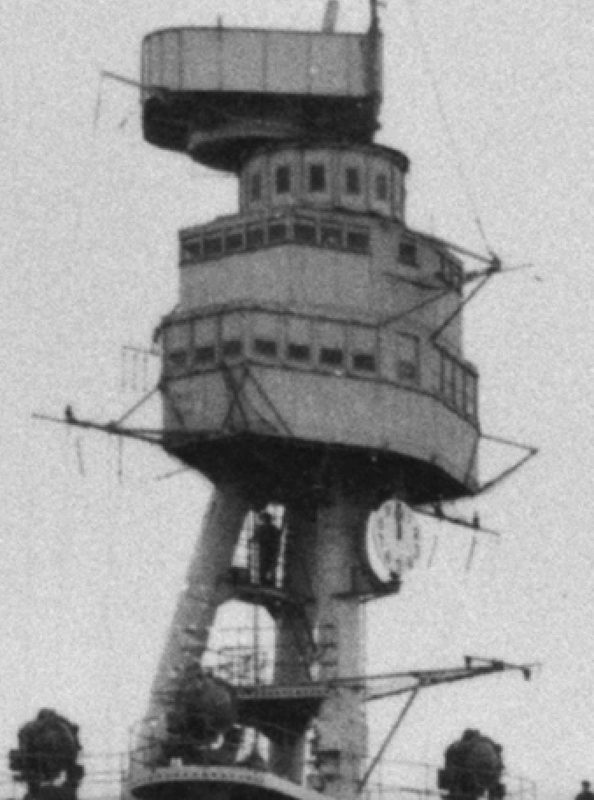

Great pic! Any idea about what type material the small futtock platform just below the control top was made of? I cannot find it in plans and have seen a photo (somewhere!?) which appears to me that the platform is a grating, basically. I'd like to know if it's just my eyes playing tricks or if it WAS a grating. Thanks!

_________________
Thanks,
Jim

The more I learn, the more I realize how little I know.
Top
 Profile
Reply with quote
Jeff Sharp
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sat Nov 16, 2024 9:08 pm
Offline

Joined: Mon Jan 07, 2008 10:15 pm
Posts: 1000
Hi Jim,
I have not seen anything that suggests that platform was grated.


Top
 Profile
Reply with quote
66misos
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sat Nov 23, 2024 3:41 pm
Offline

Joined: Wed Feb 03, 2021 4:19 am
Posts: 28
Hi,
probably silly question, but what was inside of the "houses" on the top of the tripods? Does anybody have a photo of their inside, please?

Seems new-tool 1/350 kit of USS Arizona is behind the horizon https://squadron.com/blog/all-new-tooling-1350-uss-arizona-plastic-kit-coming-soon/

Top
 Profile
Reply with quote
Timmy C
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sat Nov 23, 2024 4:47 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 12340
Location: Ottawa, Canada
66misos wrote:

Seems new-tool 1/350 kit of USS Arizona is behind the horizon https://squadron.com/blog/all-new-tooling-1350-uss-arizona-plastic-kit-coming-soon/



Note that they had to issue a quasi-retraction in a follow-up newsletter:

Quote:
*** Update On 1/350 USS Arizona ***

Announcing exciting new products, building model kits, hanging out with you guys at the model shows... these are fun things for me. What is not so fun is when I have to go back on something I said... and that is the release date being soon with Trumpeter's Arizona kit. Sometimes things get lost in translation and lets just say I jumped the gun on the announcement of Trumpeter's 1/350 Arizona kit. It is still coming... one day. Lets hope sooner than later... especially now that the cat is out of the bag so-to-speak! I will continue to update you as I have more information!

_________________
De quoi s'agit-il?
Top
 Profile
Reply with quote
BB62vet
 Post subject: Re: At 'Em Arizona Fans!
PostPosted: Sat Nov 23, 2024 7:39 pm
Offline
User avatar

Joined: Mon Nov 18, 2013 3:41 pm
Posts: 3118
Location: Mocksville, NC
66misos wrote:
Hi,
probably silly question, but what was inside of the "houses" on the top of the tripods? Does anybody have a photo of their inside, please?


66misos -

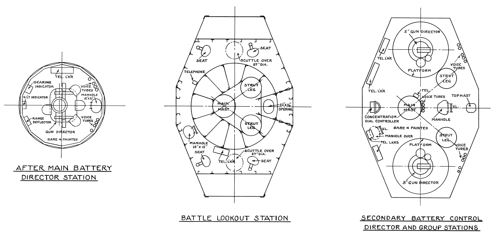

No photos, but this may help a bit - the following are the 1935 plan drawings of the main mast fire control house on BB-38:
Attachment:
BB-38 Main Mast FC House 1935_1.JPG
BB-38 Main Mast FC House 1935_1.JPG [ 23.44 KiB | Viewed 2323 times ]


The corresponding drawings for the fore mast FC house are identical. In addition, I don't think these would be any different for BB-39.

Hope this is of some help!

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48
Top
 Profile
Reply with quote
