Willie,

I have been admiring your detail work on your FFG. 1/700 right? "Wow!" Is all that I can come up with.

It is both a thrill to see your master work on these scratch built pieces and yet a little depressing, as well. I can't help but to have a split second feeling of "Why do I even bother with this hobby? I don't think that I could ever strive to conduct such fine work, myself."

But then, I come back to reality and tell myself that it is just too much fun and so satisfiying to finish a model and knowing that I have tried my best and that it all adds up to more practice and an increase in my skills. The next one will be even better.

I have ordered another DRAGON 1/700 USS Ingraham kit in order to try that one, again. I have done three models since my first Perry class FFG that my first Ingraham just doesn't seem worthy anymore. For one thing, I used the wrong color on it. I used Light Ghost Gray on it. Totally wrong!

Please keep the photos coming!

Most humbly yours,

Carl M.

My first FFG........The photo's effect makes it look better than it really is.


I am much prouder of my lastest build. 1/700 USS Knox FF-1052



_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Willie
PostPosted: Fri Apr 18, 2008 4:41 am
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
NukeMM wrote:
I have been admiring your detail work on your FFG. 1/700 right?


Hi Nuke,

No, it is 1/300. I am more for bigger models. I cannot imagine the vast amount of patience that you have to invest in your tiny 1/700´s :worship_1:
Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Sat Oct 12, 2019 2:08 pm, edited 1 time in total.

Top
 Profile
Reply with quote
NukeMM
PostPosted: Fri Apr 18, 2008 6:13 am
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
1/300!! Thank goodness! Now I feel much better.

I was wondering, if it was 1/700, what kind of tiny tools do you use. I would want some, in that case.

_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Willie
PostPosted: Sun Apr 27, 2008 10:43 am
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi there :

I was working this week on the aerials, vent trunks and some other equipment aft.

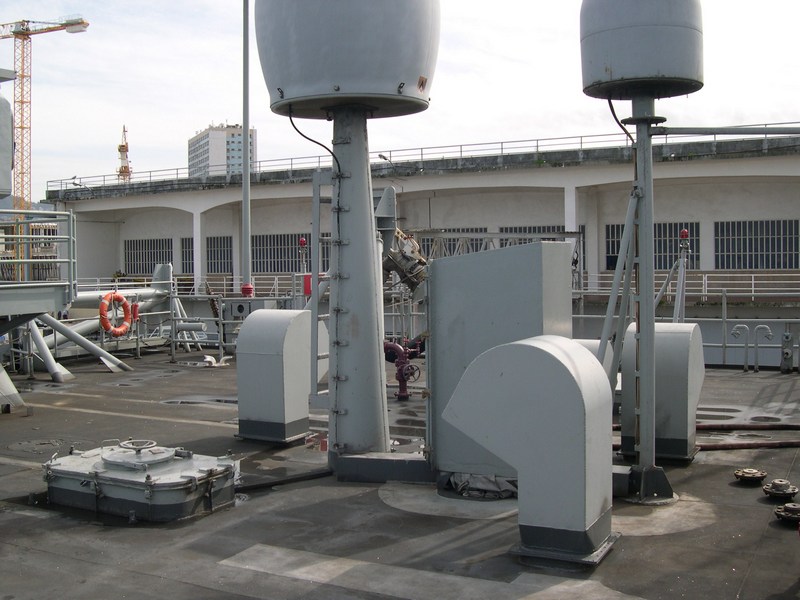

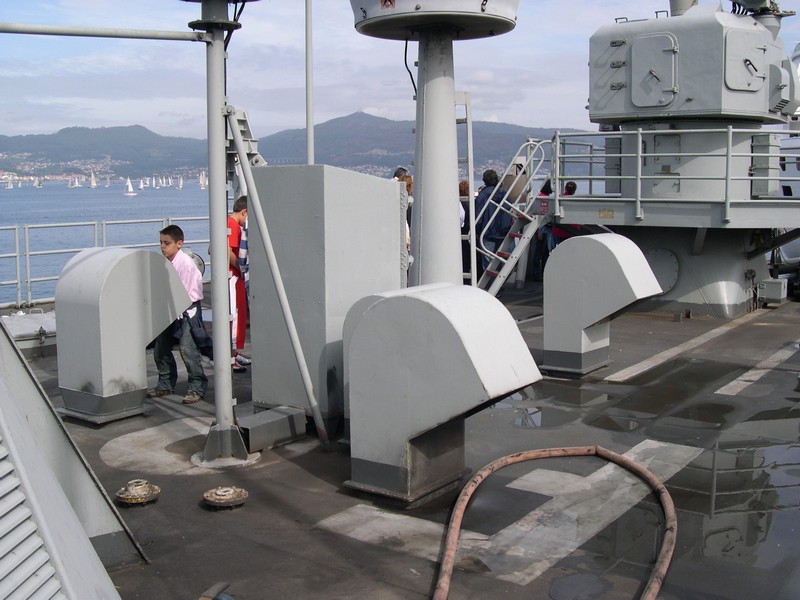

As for info, I had to cross some pics that more or less cover the whole area :
Attachment:
(67).jpg [ 137.02 KiB | Viewed 1264 times ]

Attachment:
(68).jpg [ 144.17 KiB | Viewed 1264 times ]

According to it, these are the solutions that I made.
Aerials and sensors, made with a piece of sprue, carved with file, and smoothed with sandpaper -- and some patience :
Attachment:
(70).JPG [ 172.71 KiB | Viewed 1264 times ]

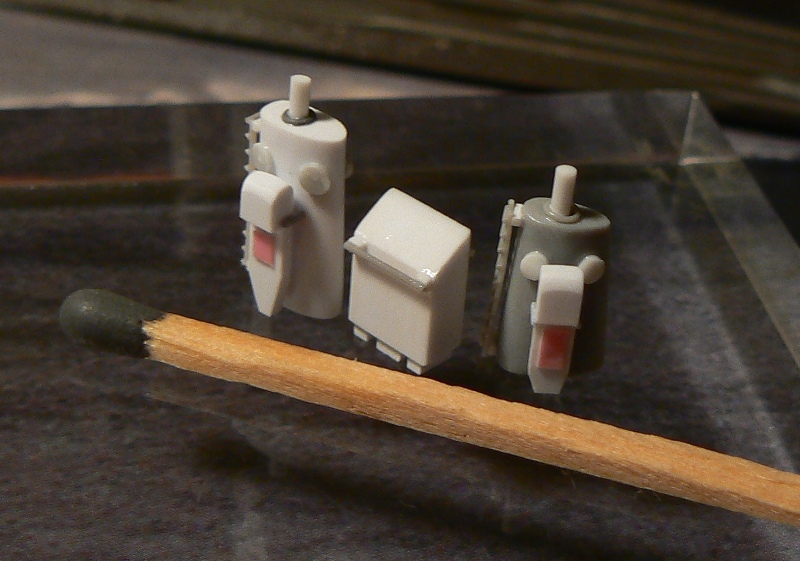

The ventilation trunks were correct in shape but too thin, so I had to thicken them using Evergreen strip, and adding the bases afterwards :
Attachment:
(69).JPG [ 145.4 KiB | Viewed 1264 times ]

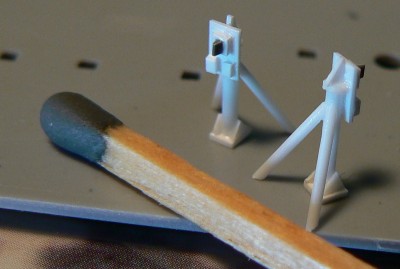

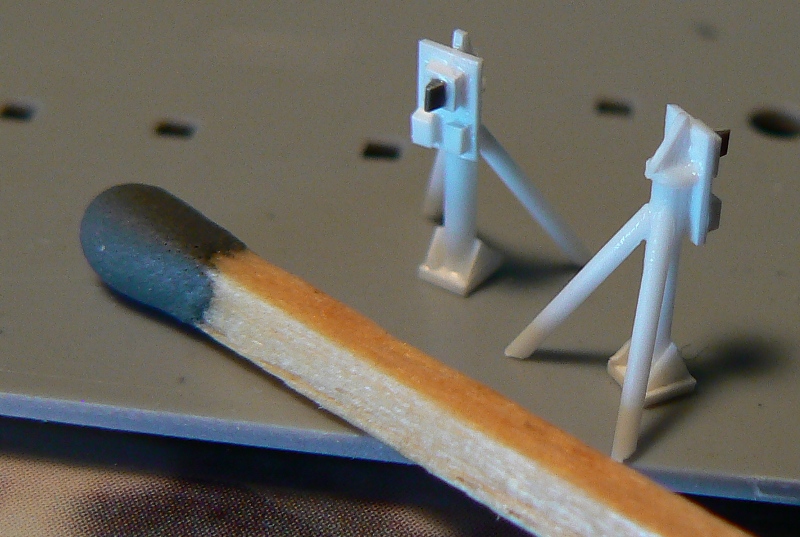

Refueling poles :
Attachment:
(71).jpg [ 113.23 KiB | Viewed 1264 times ]

Attachment:
(72).JPG [ 200.22 KiB | Viewed 1264 times ]

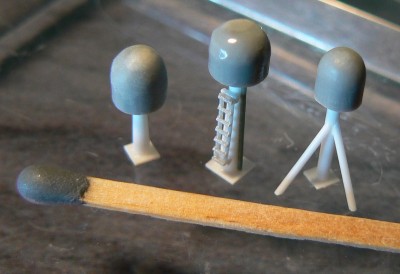

One of the aerials was a bit more complicated because of the conical base, and required special attention, but it came out at last, more or less :
Attachment:
(73).JPG [ 226.41 KiB | Viewed 1264 times ]

Attachment:
(74).JPG [ 187.29 KiB | Viewed 1264 times ]

So this is the present appearance of the aft-upper deck at the moment :
Attachment:
(75).JPG [ 197.28 KiB | Viewed 1264 times ]

I hope you like it, and very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 2:35 pm, edited 1 time in total.

Top
 Profile
Reply with quote
Willie
 Post subject: Re: Re:
PostPosted: Sun Apr 27, 2008 12:49 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi there again,

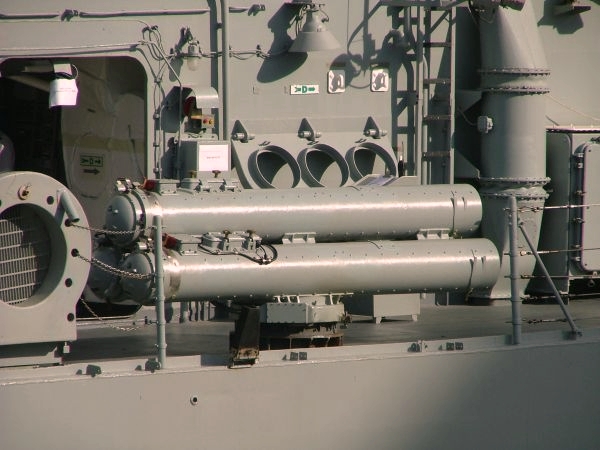

The last of today, the mk.32 TT, which are like this :
Attachment:
(76).jpg [ 156.26 KiB | Viewed 1264 times ]

The tubes that were issued in the box were not too good, and after the sanding they would be far too thin, so I had to scratch-build them with Evergreen rod and stretched sprue. Very easy to build.
Attachment:
(77).JPG [ 177.41 KiB | Viewed 1264 times ]

Brgds,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 3:07 pm, edited 1 time in total.

Top
 Profile
Reply with quote
Tony Bunch
PostPosted: Tue Apr 29, 2008 9:26 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:22 pm
Posts: 1260
Location: Santee, CA
Hi Guys,
Willie,
NOW THAT's how it's done!
Sweet!
NukeMM told me to check this out. Now I know why.
I'll be checking back with regularity.
Tony
:thumbs_up_1: :thumbs_up_1:

_________________
"You guys make this hobby fun!"
"Some of my dearest friends I have made right here on Modelwarships"
Top
 Profile
Reply with quote
Willie
PostPosted: Tue Apr 29, 2008 12:12 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Tony Bunch wrote:
NOW THAT's how it's done!


Hi Tony,

Thanks for your kind remarks. As you can see the process is quite easy -- needs only a bit of patience.
Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Sat Oct 12, 2019 2:09 pm, edited 2 times in total.

Top
 Profile
Reply with quote
NukeMM
PostPosted: Tue Jun 17, 2008 5:25 pm
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
Willie,

Have you taken a break from your FFG? What are you working on now? I love checking out your scratch building!

I am working on FFG-14 USS Sides in 1/700 from Skywave.


I'm intending to display her with my USS Vincennes CG-49 model to depict Operation Earnest Will in the Persian Gulf in 1988. It will look something like this.


_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Willie
PostPosted: Thu Jun 19, 2008 5:37 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi Nuke and all,

No, nothing is stopped, actually I have been building the main mast, but with little time to post the progress.

Two weeks ago, the frigate F86 Canarias, sister to my Santa Maria was visiting our port in Vigo, and I could visit her. As I was making my visit with a modeler´s eye, among other little details I could notice that the auxiliary stack is some how higher than the flag boxes besides, and not levelled with them as is the case of the Lee stack that was in the kit, and that I used as a base. So I decided to scratch-build another one, good from the beginning, and with the correct profile.
Attachment:
(78).JPG [ 170.25 KiB | Viewed 1295 times ]

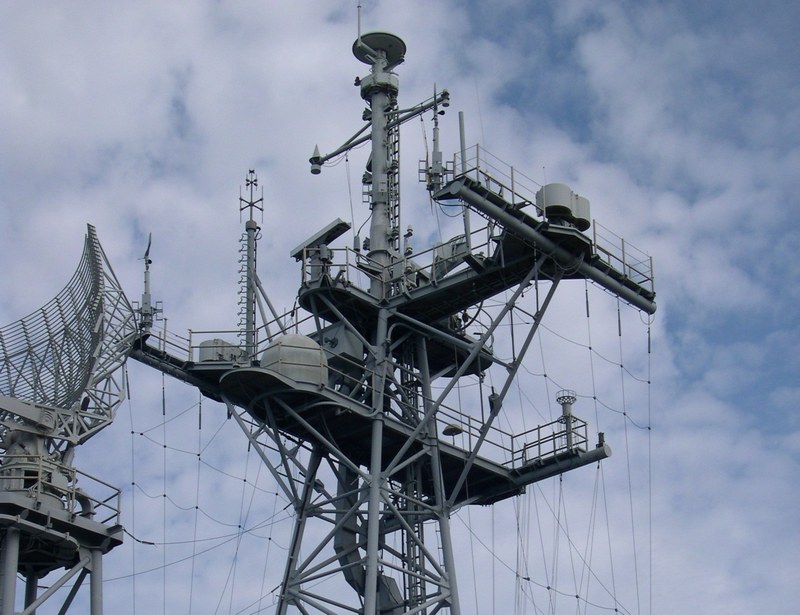

Afterwards I started the main mast, which is like this :
Attachment:
(79).jpg [ 122.35 KiB | Viewed 1295 times ]

All masts that come OOB are far too short, and the main mast lacks a cross section as well, so they have to be scratch -built from zero.
The necessary measures were obtained from the profile pic that opens my part in the thread, knowing that the overall length is 138.10 m. Actually, I found out that Lee´s mast is more than 1 cm. short at 1/300.

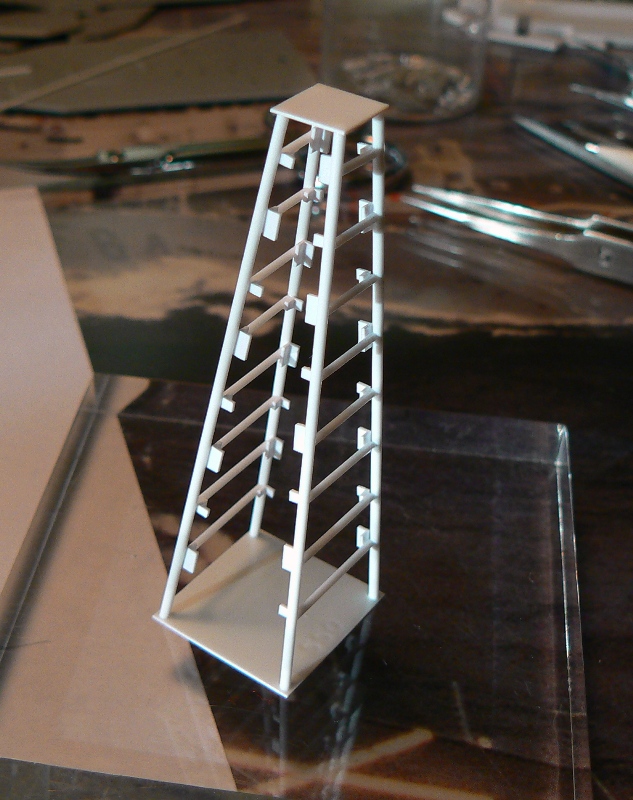

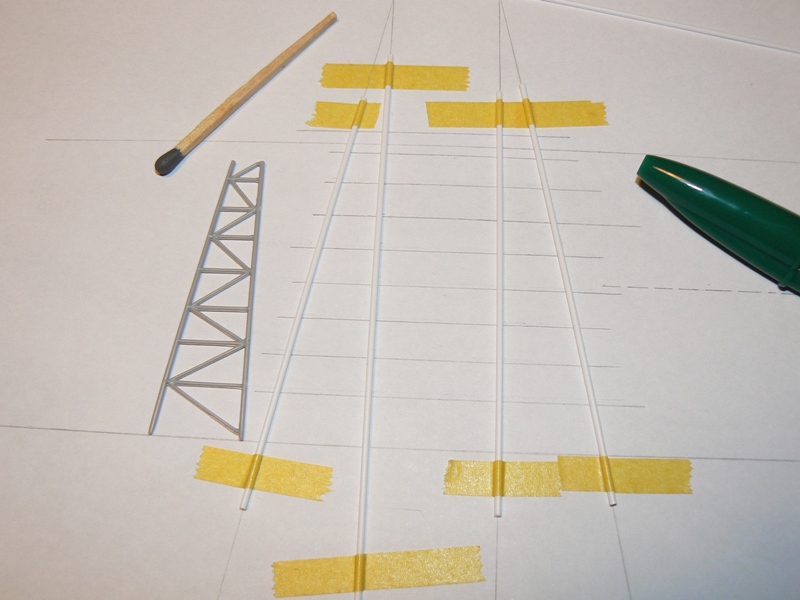

The next steps are easy : to draw the profile on a paper, with very thin lines, to place the vertical rods with tape, making sure that they are placed exactly on the lines.
Attachment:
(80).JPG [ 153.27 KiB | Viewed 1295 times ]

Then it is necessary to cut the horizontal bars, making sure they are exactly the length needed, so that the rod does not bend.
Attachment:
(81).JPG [ 133.98 KiB | Viewed 1295 times ]

Now it is necessary to let it dry a whole day, so that the rods are firmly fixed.

Brgds,
Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 3:18 pm, edited 1 time in total.

Top
 Profile
Reply with quote
Willie
PostPosted: Thu Jun 19, 2008 5:47 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Once the sides are dry, I added the supports for the horizontal and oblique bars, and the base and top of the main structure. The base is only provisional, and will be removed later. Both base and top are made with pic-nic glass bottoms, the ones you can find in a Dollar City for $1.
Attachment:
(82).JPG [ 230.69 KiB | Viewed 1295 times ]

Once this is dry as well, we can add the rest of the bars. They are not the same caliber, as can be observed in a high res, pic.
Attachment:
(83).jpg [ 78.56 KiB | Viewed 1295 times ]

I have made them with Evergreen rod, 1.2, 0.88 and 0.64 mm. I have inverted the position of the 0.88 and 0.64 so that the structure is a bit tougher, as it will be very manipulated when painting and adding details. As it can be seen in the pic, the horizontal bars do not go exactly from side to side, and it makes the work much easier.
Attachment:
(84).JPG [ 218.34 KiB | Viewed 1295 times ]

Attachment:
(85).JPG [ 221.89 KiB | Viewed 1295 times ]

I hope you like it, and very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 3:24 pm, edited 1 time in total.

Top
 Profile
Reply with quote
Willie
PostPosted: Thu Jun 19, 2008 5:55 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi all again,

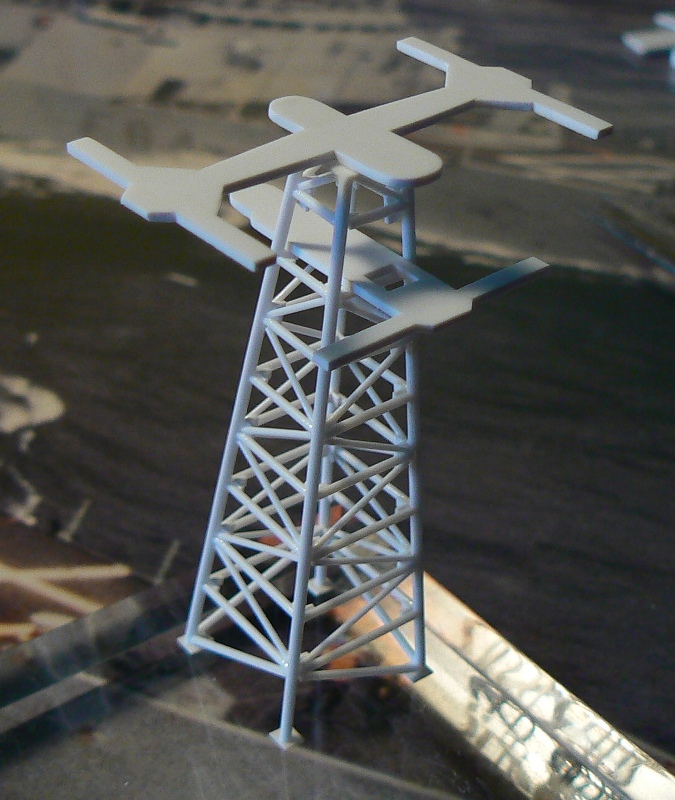

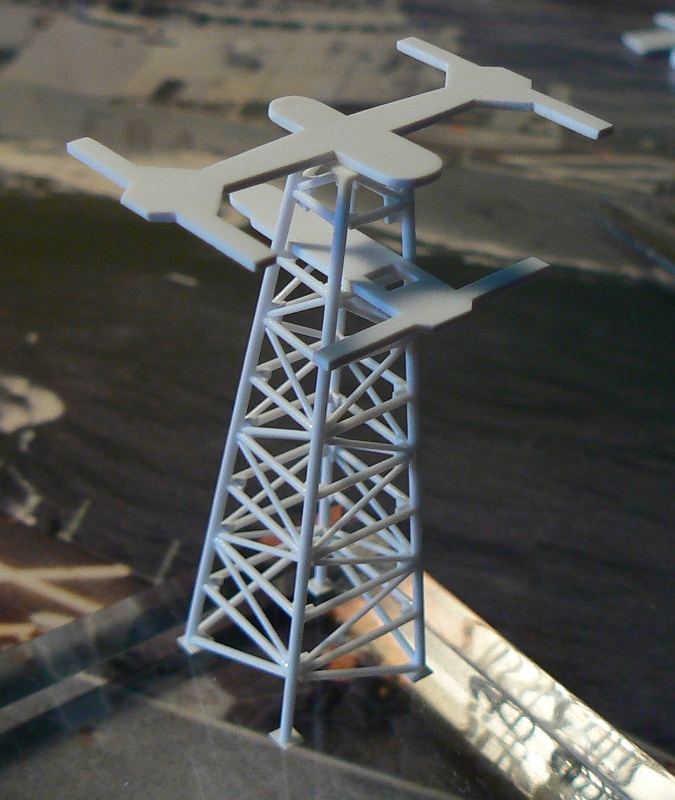

The next step are the platforms for the aerials and other equipment. They had to be done from scratch, as the pieces OOB were ad good as nothing. I think that the problem with this Lee model is that the hull and main structure are 1/300, and all details and equipment are 1/350 !!!! Not a very good kit, to put it politely... :dry:

The upper platform is made with 12 pieces. The cuts should be done very carefully, so that the structure remains flat. The lower platform ( 4 pieces ) is much easier, and the scuttle for teh scale was made with a file.
Attachment:
(86).JPG [ 222.01 KiB | Viewed 1295 times ]

Attachment:
(87).JPG [ 219.8 KiB | Viewed 1295 times ]

A dock view, as in the big pic of the mast in the other post :
Attachment:
(88).JPG [ 219.38 KiB | Viewed 1295 times ]

I hope you like it, and very best regards to you all,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 3:29 pm, edited 1 time in total.

Top
 Profile
Reply with quote
NukeMM
PostPosted: Fri Jun 20, 2008 4:49 pm
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
WOW, WOW, and WOW!

While assembling my 1/700 PE mast for my FFG, I actually had the thought, "Man! I'd hate to have to scratch build one of these." No matter what scale, really.

I am always awed and amazed, Willie.

_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Francisco P. de Nanclares
PostPosted: Sat Jun 21, 2008 12:54 pm
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
And he actually keeps telling it´s a piece of cake!.

Fantastic job Willie.

Cheers.
Pachi.

_________________
Image I will miss you Werner. Fair winds and following seas.
Top
 Profile
Reply with quote
jgrease
PostPosted: Sat Jun 21, 2008 10:42 pm
Offline
User avatar

Joined: Sat Sep 30, 2006 9:30 pm
Posts: 363
Location: Richmond TX
Remarkable stuff! I look forward to the next step!
Top
 Profile
Reply with quote
Willie
PostPosted: Sun Jun 22, 2008 3:52 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi all again,

Thanks a lot for your kind remarks. It is really apleasure to share this construction and the interest in these beautiful ships with you guys.

The construction goes on. After the structure is completely dry, we can proceed with the handrails, equipment and supports for the aerials.

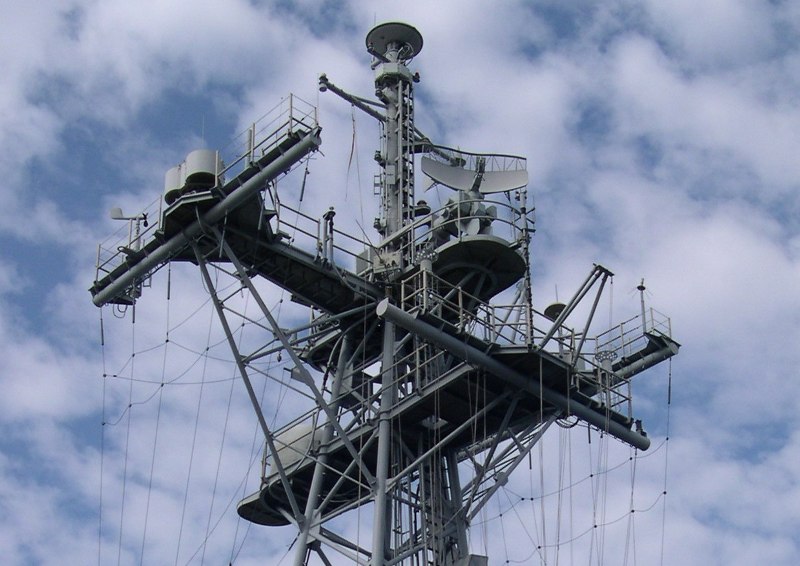

What should be done is this :
Attachment:
(89).jpg [ 95.24 KiB | Viewed 1295 times ]

Attachment:
(90).jpg [ 106.93 KiB | Viewed 1295 times ]

Attachment:
(91).JPG [ 234.62 KiB | Viewed 1295 times ]

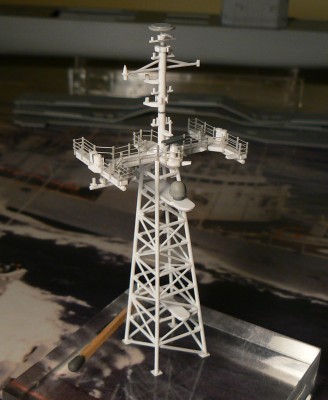

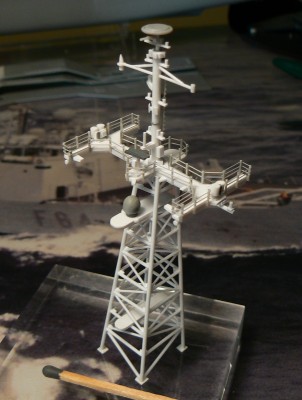

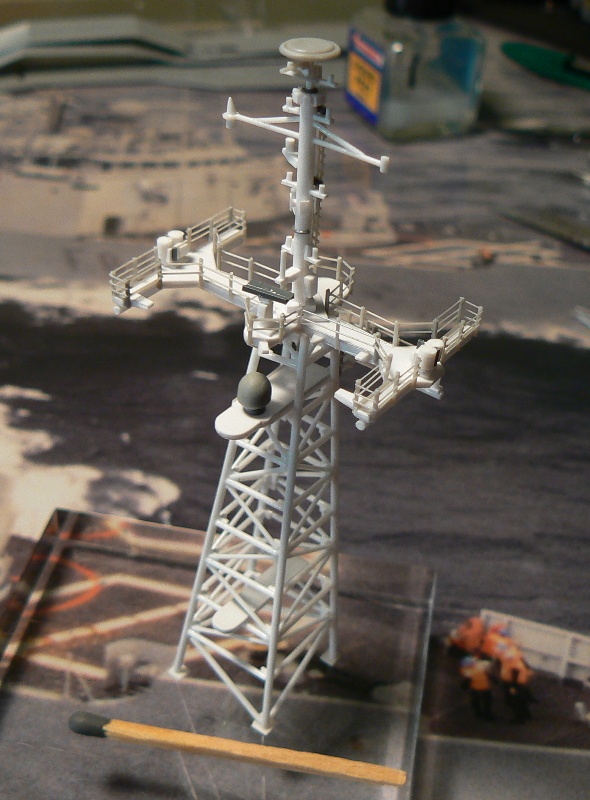

And here is what I have done at the moment :
Attachment:
(92).JPG [ 182.78 KiB | Viewed 1295 times ]

Attachment:
(93).JPG [ 167.64 KiB | Viewed 1295 times ]

Attachment:
(94).JPG [ 191 KiB | Viewed 1295 times ]

Attachment:
(95).JPG [ 227.18 KiB | Viewed 1295 times ]

The equipment is already 50% complete, but some tiny details will have to wait until the very end of the construction, so that they do not break in the process. The cable handrails were a headache, because they are made with stretched sprue, and are so thin that they break easily with the excess of glue that has to be applied.

This mast has really hooked me...

Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Wed Oct 09, 2019 3:44 pm, edited 3 times in total.

Top
 Profile
Reply with quote
NukeMM
PostPosted: Sun Jun 22, 2008 5:37 pm
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
That is just beautiful, Willie!

I have been working on my FFG USS Sides, this weekend. Painting the small details, gloss clear coat, and ready to put on some decals.

I'm going to attempt to put on some warning circles around the aft antennas and CIWS and then put the remaining railings on, there. Then the Helo Pad netting.





_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
NukeMM
PostPosted: Sun Jun 22, 2008 10:32 pm
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
By the end of the day, I have placed the decals on. The masts and towers are not permanently attached, yet.



_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Kazec
PostPosted: Mon Jun 23, 2008 12:48 am
Offline
User avatar

Joined: Wed Jan 12, 2005 1:08 am
Posts: 122
Hi,

Share my 1/700 Reina Sofía , finished on May.



_________________
Hong Kong Naval Model Association
https://www.facebook.com/groups/659559407492511/
Top
 Profile
Reply with quote
Willie
PostPosted: Mon Jun 23, 2008 3:13 am
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 681
Location: Vigo, Spain
Hi Nuke, Kazek and all,

B-E-A-U-T-I-F-U-L !!!!!!!!! The only thing I can say is that I would go nuts with these tiny 1/700 !!!!!!! And the round handrails on the bridge :thumbs_up_1:
Keep the excellent work, and best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).


Last edited by Willie on Sat Oct 12, 2019 2:09 pm, edited 1 time in total.

Top
 Profile
Reply with quote
NukeMM
PostPosted: Mon Jun 23, 2008 8:34 am
Offline
Back-Aft Models
Back-Aft Models

Joined: Tue Feb 05, 2008 12:44 am
Posts: 2974
Location: Omaha, NE, USA
Kazec,

I like your model of the Reina Sofia, very much. Is that a Spanish ship?

What model kit did you use for yours? Mine is an older Skywave 1/700 kit, identical to DRAGON. I am curious about the conversion differences from USN to Spain's FFG. Where did your detail parts come from?

I am looking for a 1/700 Mk 38 25mm chain gun in 1/700 to put on my model. I was told that some Fujimi FFG kits have them included.

_________________
Carl Musselman
(Formerly Back-Aft Models)

Photobucket
https://app.photobucket.com/u/carlomaha

YouTube Channel:
https://www.youtube.com/channel/UCcH4XXgrwKkhbIHgFtIYhAg
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  Page 3 of 27
  [ 531 posts ]  Go to page Previous  1, 2, 3, 4, 5, 6 ... 27  Next

Board index » ModelWarships.com general forum » Calling all Ship Fans » CASF » Destroyers and Frigates

All times are UTC - 6 hours [ DST ]

Who is online

Users browsing this forum: No registered users and 39 guests

You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
