ModelMonkey
 Post subject:
PostPosted: Sat Oct 28, 2006 10:30 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Thanks to all!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Wed Apr 11, 2007 5:38 pm, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Thu Nov 23, 2006 4:32 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
DUDE YOU STILL ALIVE!!! :lol_3: :lol_3:

Reid :thumbs_up_1:

P.S. just checking!


Report this post
Top
 Profile
Reply with quote
Tony Bunch
 Post subject:
PostPosted: Thu Nov 23, 2006 4:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:22 pm
Posts: 1260
Location: Santee, CA
Hi Guys,
Steve,
Yes indeed, where you been???
Hope you and your family are well, Tony
ps I'm going to quote you now...."Fletcher's Rock!"
Rock on!

_________________
"You guys make this hobby fun!"
"Some of my dearest friends I have made right here on Modelwarships"


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Fri Nov 24, 2006 6:22 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Reid, Tony!

Thanks for checking! Yep all is well. Just finishing up some resin orders before I return full bore on DD-804.

Although I intended to wait until next year, the Essex class bug bit hard and I have started building a 1/350 Trumpy Yorktown. If you guys would quit posting inspirational pics of your models of ships of other classes I might just get one model done, hehehe.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Sat Nov 25, 2006 8:11 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
GOOD TO HEAR STEVE!!!

Reid :thumbs_up_1:


Last edited by Reid on Sun Apr 29, 2007 5:21 pm, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Sat Apr 28, 2007 11:28 am
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA

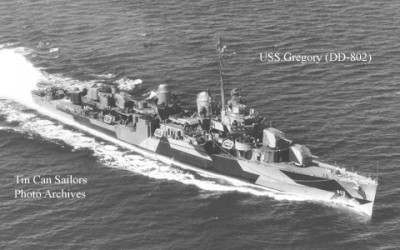

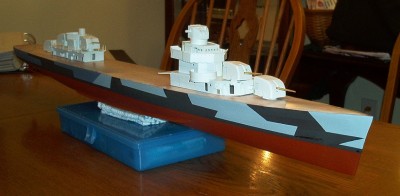

Comparison of the model's painted hull to photos of the actual ship reveals
very little adjustment is necessary and then hull numbers can be added.
I will use dry letter transfers to number the hull.


Attachments:
802gregory.02.jpg [ 38.57 KiB | Viewed 1638 times ]
File comment: The turrets are not yet fixed to the decks yet so they aren't sitting level.
IM002624a.jpg [ 198.66 KiB | Viewed 1638 times ]
im003498.jpg [ 199.39 KiB | Viewed 1637 times ]
Steve Larsen im003500.jpg
Steve Larsen im003500.jpg [ 196.12 KiB | Viewed 1637 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Mon Dec 15, 2014 2:48 pm, edited 3 times in total.
Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Sat Apr 28, 2007 1:59 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
Nice to see you back again. can't wait to see what magic you will work now. i think the depth charges are MK. XI. not to sure though :lol_1:

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Sat Apr 28, 2007 4:38 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Reid, thanks! I think you are right about the mine being a depth charge. Good eye!

Detailing the funnels begins; insides first. The Lindberg funnels, except for the caps,
match the plans from Floating Drydock so I am using them. The caps need only slight
reshaping so are usable and need interior detailing. On a real Fletcher, there is a
platform inside the cap containing two openings for two uptakes per funnel separated
by baffle. The baffle on some ships was smooth, others were ribbed. The uptake
openings have a diamond-pattern grate mounted inside the uptake slightly below the
top of the opening.

The kit's funnel halves were assembled then the funnel caps were cut off using a razor
saw. The interior was the built up from Evergreen styrene and K&S brass photo-
etched mesh. The top of the baffle will be trimmed later and stiffeners will be added
across the top of each cap.

A real Fletcher's funnels are raised above the midships deckhouse by a rectangular
structure that acts as a funnel base. Lindberg does not include these funnel bases in their
kit. New bases were fabricated for each funnel from styrene strip.

The exterior of the funnels and their respective platforms will be detailed later.

Click on thumbnail to view larger photo








Attachments:

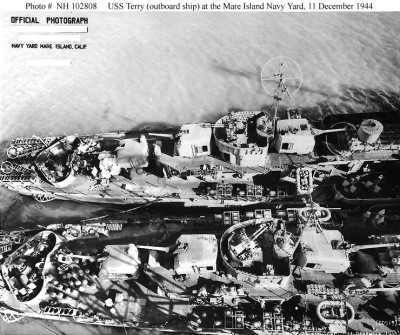

File comment: DD-804's funnels and funnel platforms appeared almost certainly as these.
Notice differences in these ships' 20mm Oerlikon positions.
i02807.jpg [ 154.01 KiB | Viewed 2506 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Sun Apr 29, 2007 10:14 pm, edited 4 times in total.
Report this post
Top
 Profile
Reply with quote
JIM BAUMANN
 Post subject:
PostPosted: Sat Apr 28, 2007 5:04 pm
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5570
Location: Nr Southampton England
Good to see progress resuming here!

Its a kit I built some years ago--after adding the required sheer to the hull--I completed her and gave her away!
Looks like yours will be a beauty!!

Looking forward to progress

JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Sat Apr 28, 2007 5:53 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
wow great job on the funnel detail

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Sun Apr 29, 2007 7:41 am
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Jim and Reid, thanks so much!

Reid,

I think you nailed the identity of the depth charges. Here's a photo of depth charges aboard USS Kidd:

Thanks to Bruce Ross for the photo!


Attachments:
661kidd 18.jpg
661kidd 18.jpg [ 59.8 KiB | Viewed 1637 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Mon Dec 15, 2014 2:44 pm, edited 4 times in total.
Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Sun Apr 29, 2007 10:06 am
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
WOW thats a nice picture you got there of Mk. XI. i was on Kidd last fall and i thought those depth charges looked familiar. :jump_1:

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Mon Jun 04, 2007 9:01 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA

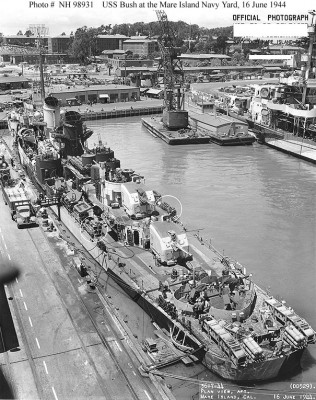

Aft, 20mm "Heart Tub" is installed. There are 37 pieces needed to build this feature.
Three 20mm Oerlikons and their associated crews were protected by this shield. This
splinter shield differed from ship to ship. On Fletchers built at Seattle-Tacoma like
DD-804, the shield was heart-shaped, enclosed three single mounts, and the reinforcing
ribs were welded to the interior. The other common variation was ribs welded to the
exterior. Check your sources carefully for the ship you are building.

Click on thumbnail to view larger photo



Next update: intake vents on the funnels. There are 56 pieces needed to build the intake vents.


Attachments:
h98931.jpg [ 186.86 KiB | Viewed 2484 times ]
i02808.jpg [ 151.08 KiB | Viewed 2423 times ]
529bush fantail.jpg
529bush fantail.jpg [ 153.9 KiB | Viewed 1633 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Mon Dec 15, 2014 3:36 pm, edited 2 times in total.
Report this post
Top
 Profile
Reply with quote
Reid
 Post subject:
PostPosted: Mon Jun 04, 2007 10:11 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
Very smooth steve!!! looks great. just one thing, can u give as a kind of over all shot of her so we can see how shes lookin now!!! Can't wait to see the funnels!!

P.S. do you anything about the aft shields from fletchers built in Boston.

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
Dave Wooley
 Post subject:
PostPosted: Tue Jun 05, 2007 3:54 am
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Hi Steve I always enjoy seeing your builds in progress and your skilled use of styrene , great work . Now were are those funnels? :thumbs_up_1: :wave_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
MartinJQuinn
 Post subject:
PostPosted: Tue Jun 05, 2007 8:36 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8356
Location: New Jersey
Fantastic work Steve!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Tue Jun 05, 2007 6:42 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Thanks so much for all the kind comments!

Reid wrote:
...do you anything about the aft shields from fletchers built in Boston?


Generally, the ribs appear to be fixed to the splinter shield interiors with some exceptions: it is difficult to make such a determination of rib locations on the heart tub splinter shields of some Square Bridge ships built at Boston from photos. The photo of USS Connor seems to show exterior ribs on the aft part but a smooth exterior forward. See: http://www.destroyerhistory.org/fletcherclass/582conner_01.html

According to DestroyerHistory.org the Round Bridge Fletchers built at Boston were:
DD-472 USS Guest
DD-473 USS Bennett
DD-474 USS Fullam
DD-475 USS Hudson
DD-476 USS Hutchins

According to DestroyerHistory.org the Square Bridge Fletchers built at Boston were:
DD-581 USS Charrette
DD-582 USS Connor
DD-583 USS Hall
DD-584 USS Halligan
DD-585 USS Haraden
DD-586 USS Newcomb
DD-662 USS Bennion
DD-663 USS Heywood L. Edwards
DD-664 USS Richard P. Leary


Attachments:
File comment: A clear photo of USS Haraden (square bridge built at Boston) shows that her
heart tub ribs were fixed to the splinter shield exterior.
585haraden_01.jpg [ 94.64 KiB | Viewed 2394 times ]
File comment: Likewise, a clear photo of USS Hudson (round bridge built at Boston) seems to
show that her heart tub ribs were also fixed to the splinter shield interior.
475hudson_01.jpg [ 99.44 KiB | Viewed 2361 times ]
File comment: A clear photo of USS Guest (round bridge built at Boston) seems to show that
her heart tub ribs were fixed to the splinter shield interior.
472guest_01.jpg [ 79.14 KiB | Viewed 2361 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby
Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Tue Jun 05, 2007 10:19 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4055
Location: USA
Funnel intake vents are fabricated and installed. There are 7 parts to each intake vent for a total of 56 parts.
Some final shaping and cleanup of the vents is yet to be done to even out their appearance in relation to each other
and there is much more detailing to be done to the funnels, platoforms and searchlights. The funnel caps will be
replaced with more accurately shaped caps later. A director platform will be added to the aft funnel. Both funnel
platforms will have underside structural members added as well as rails.

Click on thumbnail to view larger photo








Attachments:
File comment: Notice the funnel vent style and the closeness of the individual louvers to one another.
h44906.jpg [ 105.1 KiB | Viewed 2420 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Wed Aug 08, 2007 10:16 am, edited 2 times in total.
Report this post
Top
 Profile
Reply with quote
Avery Boyer
 Post subject:
PostPosted: Wed Jun 06, 2007 12:15 am
Offline
User avatar

Joined: Mon Apr 24, 2006 4:56 pm
Posts: 934
Location: Berks County, Pennsylvania
:thumbs_up_1:

_________________
"It is best to remain silent and let others assume you are dumb than to speak up and remove all doubt"

http://nssavannah.wordpress.com/


Report this post
Top
 Profile
Reply with quote
Mike Glasgow
PostPosted: Wed Jun 06, 2007 9:12 am
Offline
User avatar

Joined: Tue Mar 29, 2005 3:04 pm
Posts: 51
Location: Washington state
Your build is looking great! Could you describe how you made the aft 20mm gun tub. Did you heat the plastic in warm water? Just wondering how you kept that perfect symmetrical shape, no twisting, looks really nice. How many pieces did you use for the vertical wall? Thanks for all the information you have passed on.


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  Page 6 of 10
  [ 181 posts ]  Go to page Previous  1 ... 3, 4, 5, 6, 7, 8, 9, 10  Next

Board index » ModelWarships.com general forum » Picture Post » Works in Progress

All times are UTC - 6 hours [ DST ]

Who is online

Users browsing this forum: JIM BAUMANN and 133 guests

You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
