PostPosted: Wed Jan 31, 2024 5:53 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 2580
Location: Belgium
It is coming to life! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

Now some figures?


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Feb 01, 2024 2:49 am
Offline

Joined: Mon Apr 17, 2017 2:43 am
Posts: 299
Excellent progress! The planes are great. outstanding canopies! :cool_1:

_________________
http://www.3xblackcats.wordpress.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Feb 02, 2024 2:23 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Thanks Marijn figures are coming soon
Thanks SG1 l'm really pleased of the result..and l was lucky it worked out

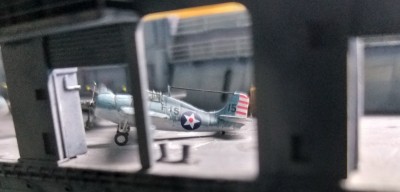

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...the 7 F4F-3 are in the hangar...the 3 remaining will go on the flight deck...enjoy


Attachments:
20240202_191931.jpg [ 848.96 KiB | Viewed 754 times ]
20240202_192006.jpg [ 678.18 KiB | Viewed 754 times ]
20240202_200950.jpg [ 529.05 KiB | Viewed 754 times ]
20240202_201049.jpg [ 501.05 KiB | Viewed 754 times ]
20240202_201116.jpg [ 529.83 KiB | Viewed 754 times ]
20240202_201154.jpg [ 419.37 KiB | Viewed 754 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Feb 14, 2024 2:38 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Dear all...today l started a boring but necessary built..well here it is.
All the truss beams are made with hangar lamps...buut those lamps are very poorly made in 2 dimensions....so l decided to make all the lamps. So the red circle in the picture is the wrong lamp ...the yellow are the "correct one" that l made and 2 per beam....each lamp is 2mm in diameter
Every single lamp will accomodate a fiber optic cable to give light to the hangar....
The 2nd picture is what a ww2 hangar lamp should look like

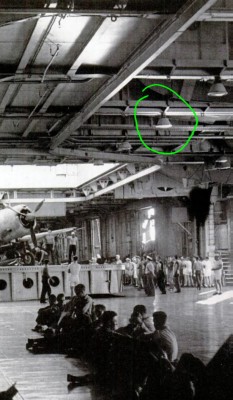

3rd picture in green what the lamps look like in the hangar..in this case in Enterprise twin sister of Yorktown


Attachments:
20240214_203723.jpg [ 699.39 KiB | Viewed 687 times ]
emaille-hanglamp.jpg [ 105.37 KiB | Viewed 687 times ]
20240214_201145.jpg [ 471.57 KiB | Viewed 687 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Feb 15, 2024 2:27 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Dear all here is today's update on the carrier for the diorama battle of Coral Sea...l started the painting on the Dauntless and the Devastators...it took me some time to have what i think is the correct hue... enjoy


Attachments:
20240215_202605.jpg [ 918.92 KiB | Viewed 641 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Feb 17, 2024 2:13 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336

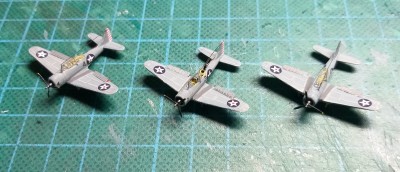

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...the first 3 Dauntless of VB-5 are done...enjoy


Attachments:
20240217_201131.jpg [ 616.71 KiB | Viewed 593 times ]
20240217_201107.jpg [ 541.09 KiB | Viewed 593 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Feb 17, 2024 7:19 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8342
Location: New Jersey
TF17Greg wrote:
All the truss beams are made with hangar lamps...buut those lamps are very poorly made in 2 dimensions....so l decided to make all the lamps. So the red circle in the picture is the wrong lamp ...the yellow are the "correct one" that l made and 2 per beam....each lamp is 2mm in diameter
Every single lamp will accomodate a fiber optic cable to give light to the hangar....
The 2nd picture is what a ww2 hangar lamp should look like
3rd picture in green what the lamps look like in the hangar..in this case in Enterprise twin sister of Yorktown

Wow!! That's amazing!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 18, 2024 3:36 am
Offline

Joined: Mon Apr 17, 2017 2:43 am
Posts: 299
Great attack wing! :cool_2:

the lamps look perfect, how did you manage to produce a series of such perfect shapes?
Are you going to drill a hole in each one for the optic fibers? :cool_1:

_________________
http://www.3xblackcats.wordpress.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 18, 2024 5:53 am
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
SG1 wrote:
Great attack wing! :cool_2:

the lamps look perfect, how did you manage to produce a series of such perfect shapes?
Are you going to drill a hole in each one for the optic fibers? :cool_1:

Thank you for your comment
Well the lamps were made by heating a 2mm ball tool and press it gently into 0.5mm plasticard to have half sphere then l cut them and they look almost all the same...and yes l will drill them all to fit the fibers...hopefully i will not break them...


Attachments:
GSW8436554363353ES.jpg [ 41.72 KiB | Viewed 534 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 18, 2024 5:54 am
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Thank you Martin
:thumbs_up_1: :big_grin:


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 18, 2024 2:18 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336

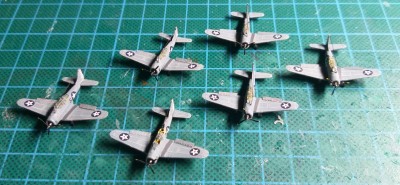

Dear all...nothing more to say than 3 More Dauntless for VB-5...
Enjoy


Attachments:
20240218_201338.jpg [ 977.98 KiB | Viewed 506 times ]
20240218_201415.jpg [ 731.59 KiB | Viewed 506 times ]
20240218_201442.jpg [ 775.16 KiB | Viewed 506 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Feb 20, 2024 12:46 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2464
Location: Hoboken, NJ
The air wing is shaping up nicely. What paint are you using the the blue-gray upper surfaces on the aircraft? I've always loved the old Model Master blue gray, but it's long out of production, and I need to find a replacement for future projects.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 03, 2024 2:20 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Devin wrote:
The air wing is shaping up nicely. What paint are you using the the blue-gray upper surfaces on the aircraft? I've always loved the old Model Master blue gray, but it's long out of production, and I need to find a replacement for future projects.

Dear Devin sorry for the late reply
This is what l used base color: ghost grey, then blue grey wash then panels in Us blue grey and finally highlights 50-50 Us blue grey and white grey...hope it helps all colors and washes are vallejo model air


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 03, 2024 2:29 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336

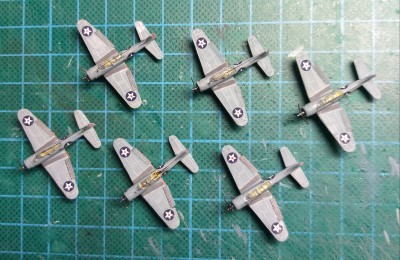

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...finished both squadrons VB-5 and VS-5... l also made the plane of Lt. Stanley "Swede" Vejtasa and Rm3 Walter Schindler plane number 10 from sqd VS-5. Enjoy


Attachments:
20240303_202632.jpg [ 598.12 KiB | Viewed 356 times ]
20240303_190946.png [ 629.5 KiB | Viewed 356 times ]
20240303_184746.jpg [ 550.11 KiB | Viewed 356 times ]
20240303_184822.jpg [ 815.71 KiB | Viewed 356 times ]
20240303_202712.jpg [ 777.62 KiB | Viewed 356 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Mar 04, 2024 7:38 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8816
Location: New York City
wow. Outstanding work. Love that air group.


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Mar 04, 2024 7:51 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 2580
Location: Belgium
:thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

Great detail and paintwork on those SBD's!


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 10, 2024 3:22 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Thanks Dan K andMarijn for your comments and support.
Dear all here is today's update on the carrier for the diorama battle of Coral Sea.

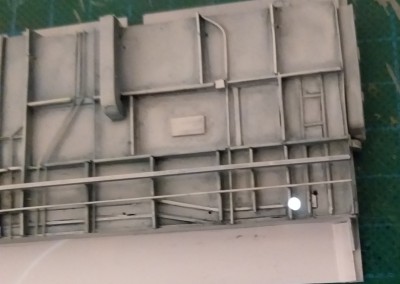

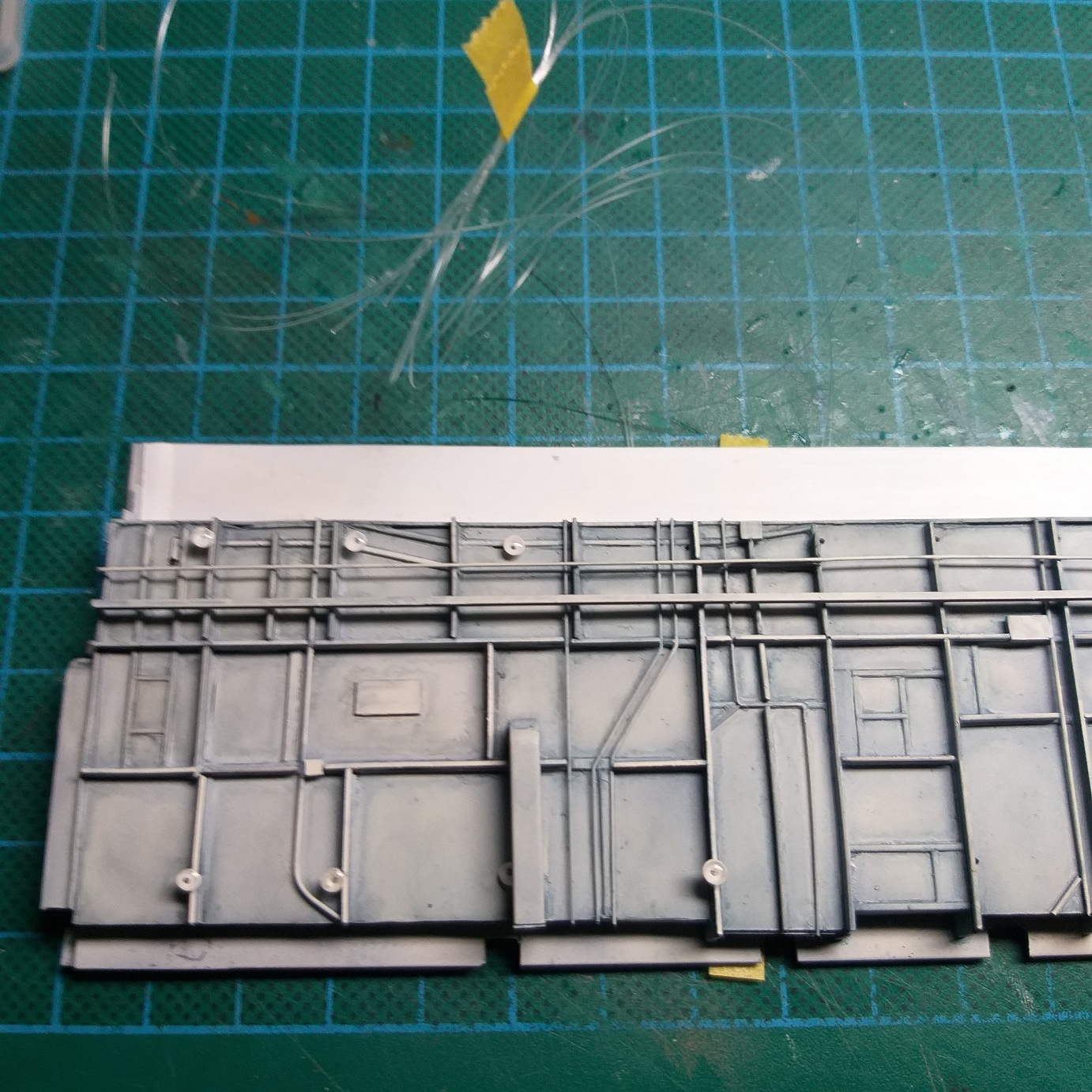

I placed the lamps on the forward truss beams very fiddly but they look much better. I placed also the first lamp on central roof of the hangar and l put the fiber optic and clear resin...it looks really cool..


Attachments:
20240310_211151.jpg [ 520.47 KiB | Viewed 260 times ]
20240310_211240.jpg [ 523.69 KiB | Viewed 260 times ]
20240310_211346.jpg [ 574.65 KiB | Viewed 260 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 10, 2024 4:23 pm
Offline
User avatar

Joined: Tue May 01, 2012 4:38 pm
Posts: 1091
Location: The Buckeye State
Very fine work. The idea for the lamps is awesome.

_________________
_________________
James

http://www.modelshipgallery.com/gallery/users/James-Guard/user-index.html


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Mar 11, 2024 12:37 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2464
Location: Hoboken, NJ
Nice to see that lighting method works in 1/350th, I plan on doing something similar for my 1/350th Yorktown build. I experimented a bit with it in 1/700 scale, but the space is too tight and the fibers won't handle the bends required to make everything fit.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Mar 12, 2024 2:46 pm
Offline
User avatar

Joined: Mon Dec 07, 2020 7:02 am
Posts: 336
Thanks @ Devin and boomstick68/ aka James for your comments@ DavidP the lamps are in plastic then you put in the middle the fiber optic cable and then you pour in the lamp clear UV resin...hope l answered your question

Dear all here is today's update on the carrier Yorktown CV-5 for the diorama battle of Coral Sea...placed more functioning lamps...boy they are fiddly and those fiber cables go everywhere...enjoy


Attachments:
20240312_203815.jpg [ 597.62 KiB | Viewed 317 times ]
Report this post
Top
 Profile
Reply with quote
