Oh thanks now l know what are those..
Then these are the structures where the cables rest ("pits") look at the pic...hope l explained what l meant

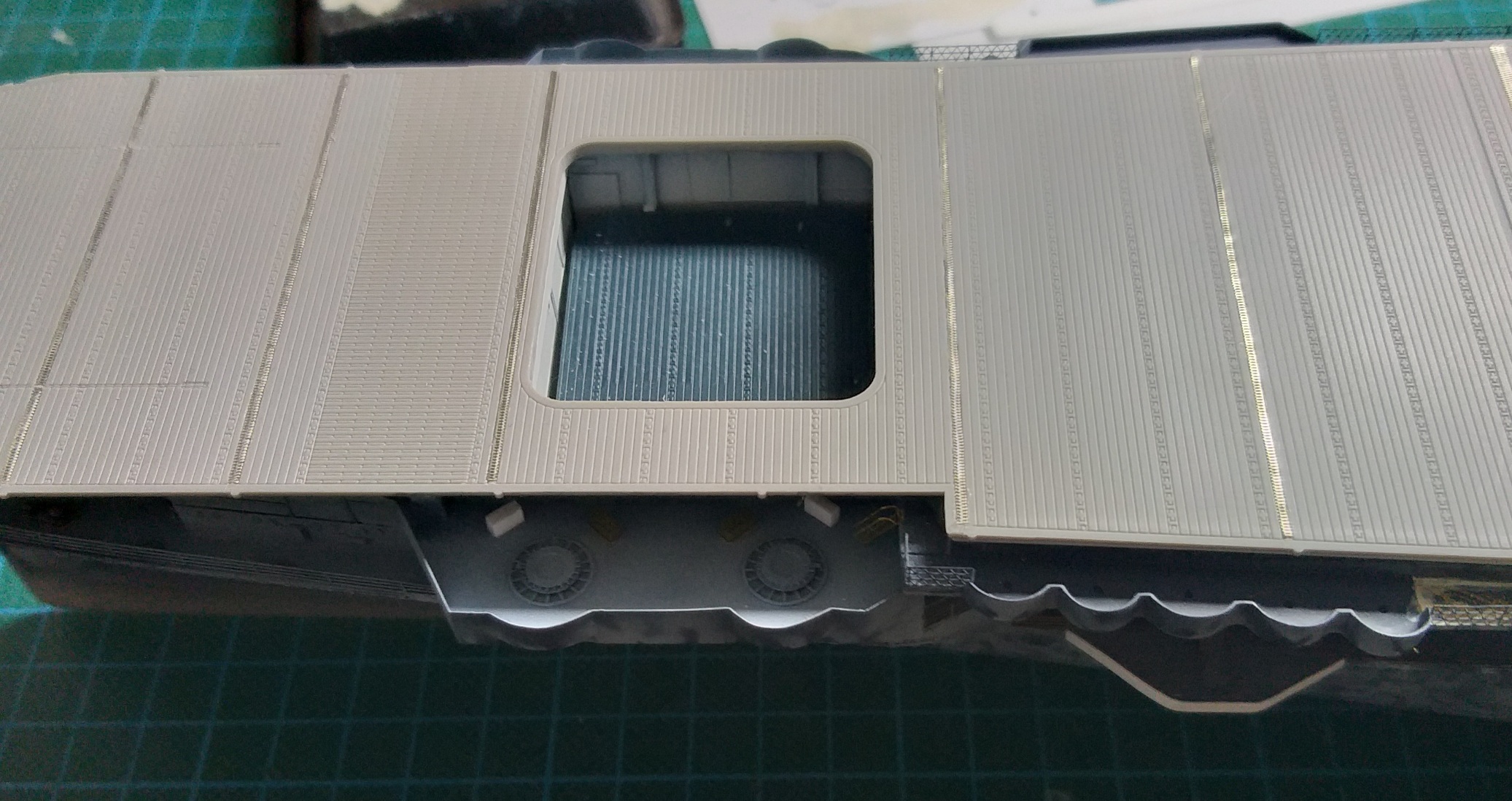

Actually, it looks like the outer edge of the center elevator. You can see in the distance the curve of the forward starboard corner.

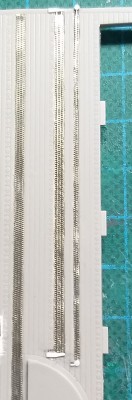

You are right it's the outer edge of the elevator but l wanted to show the metal structure what l called the "pits" where the cable rested..here check these pics...and thank you for your comment

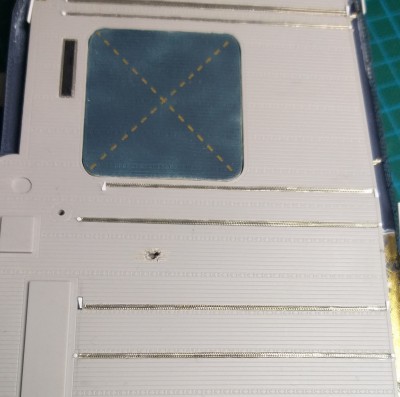

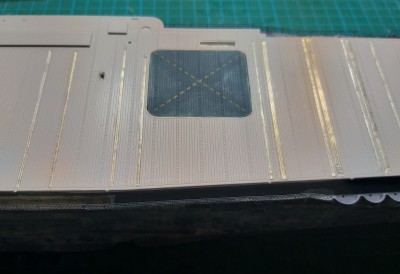

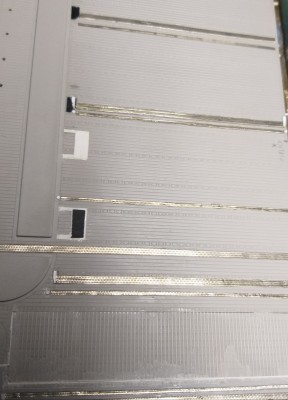

Dear all here is today's update on the carrier. I finished the super detailling of the 2 parts of the flight deck and placed the first cables and brakes..have a nice evening and enjoy

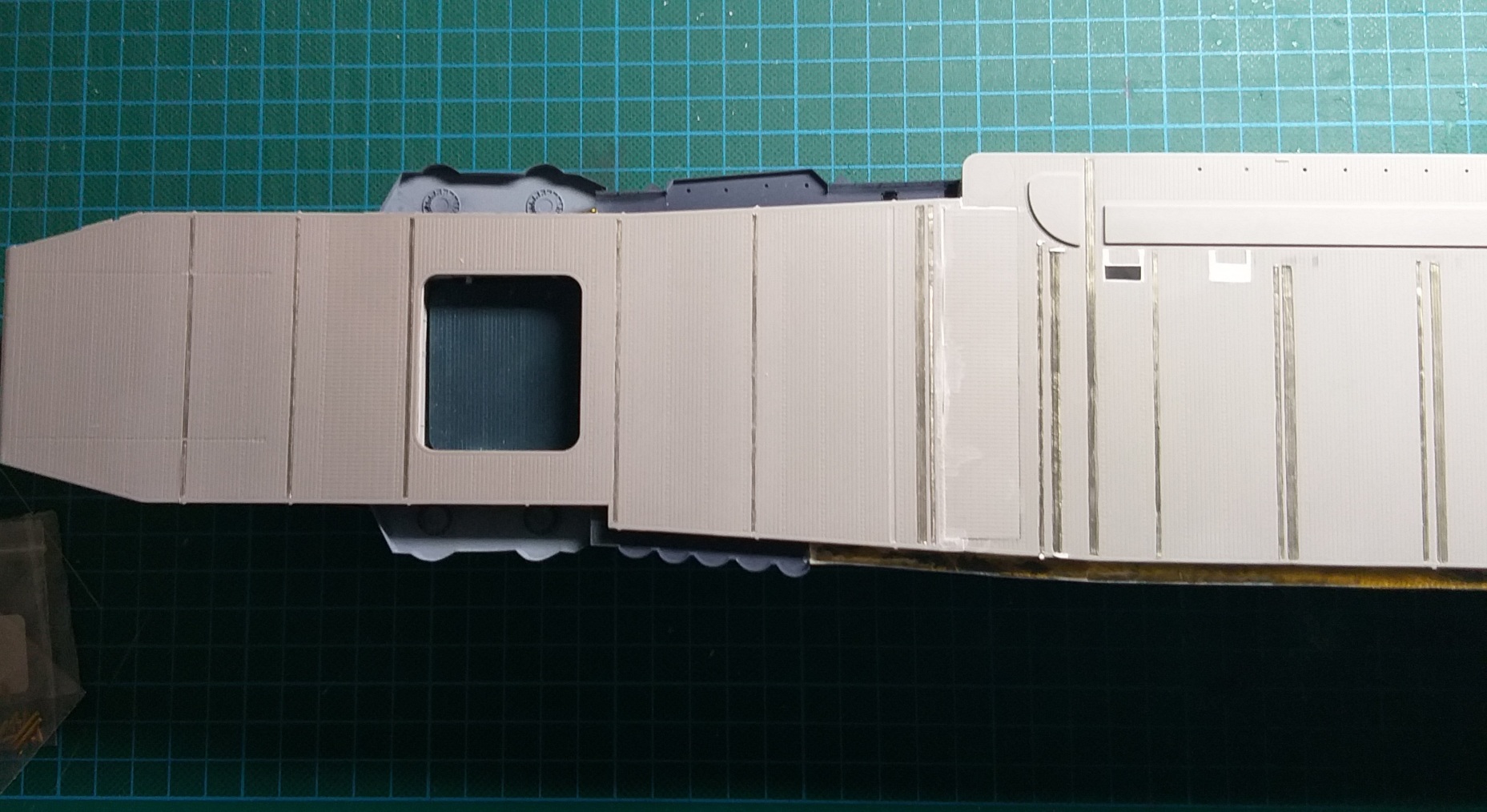

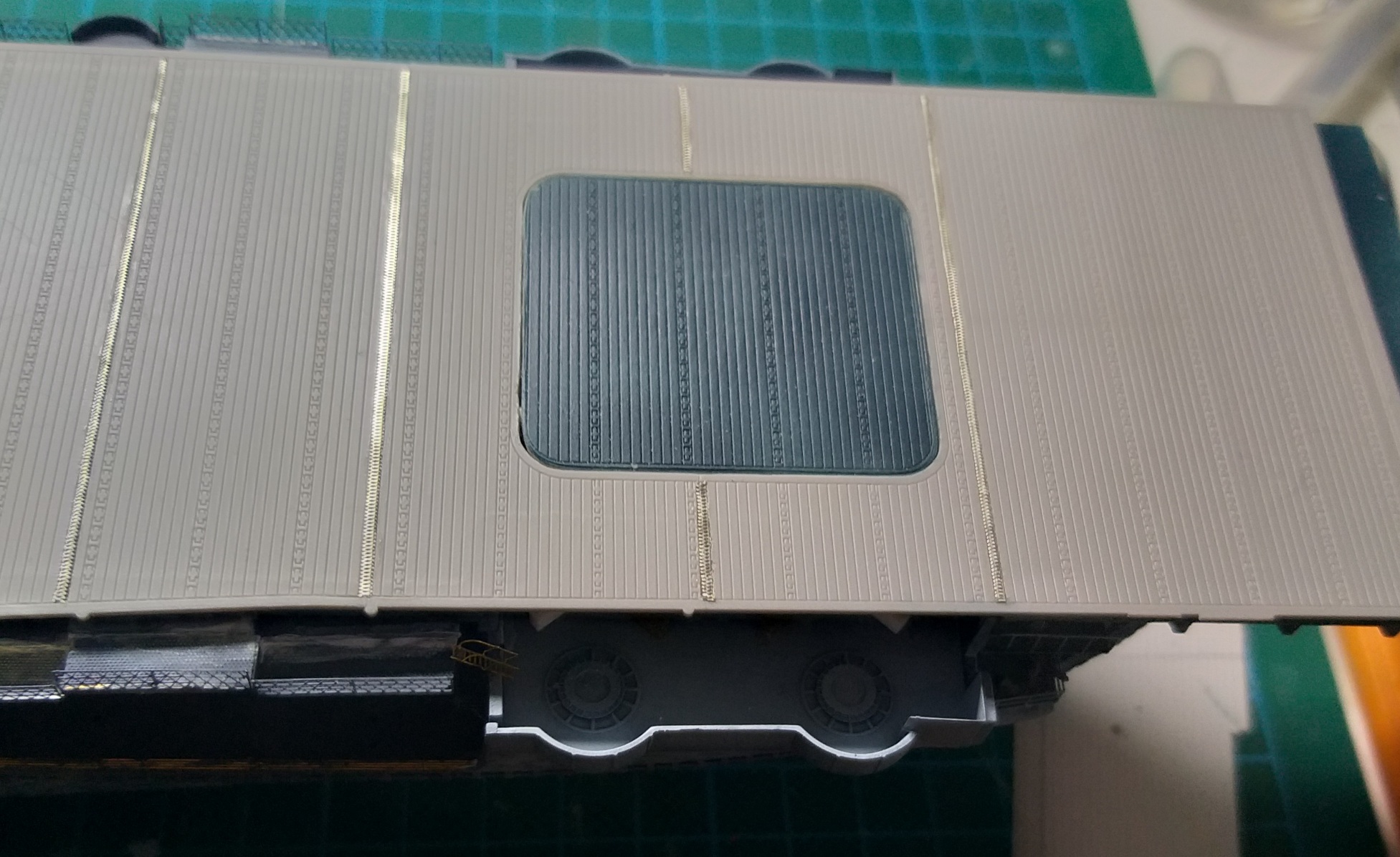

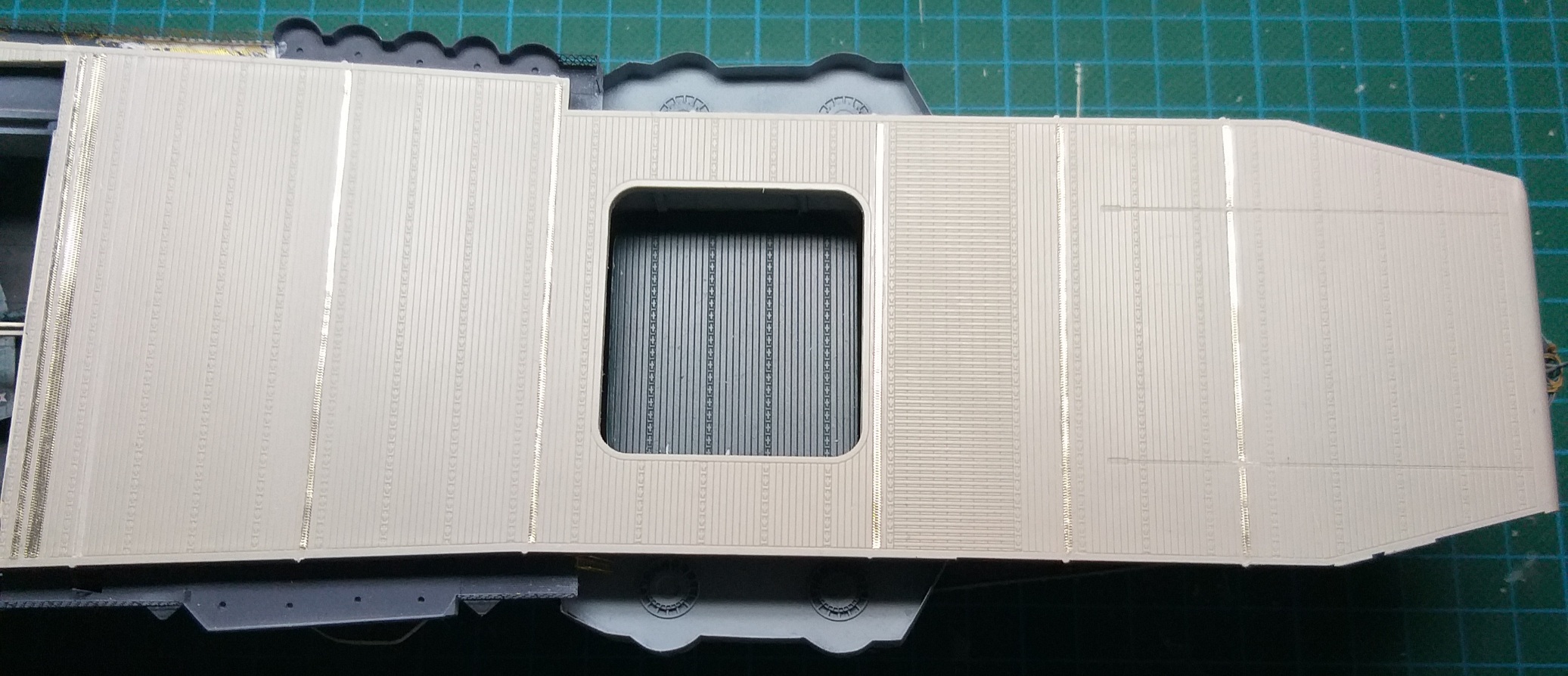

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...finally l placed the main decks and the 3 elevators on the main structure..many gaps were filled and corrected...enjoy

Looks great.

Happy modeling,

Chris

Thank you Dadeo911
So here is today's update on the carrier for the diorama
I started the catwalk's super detailling..enjoy

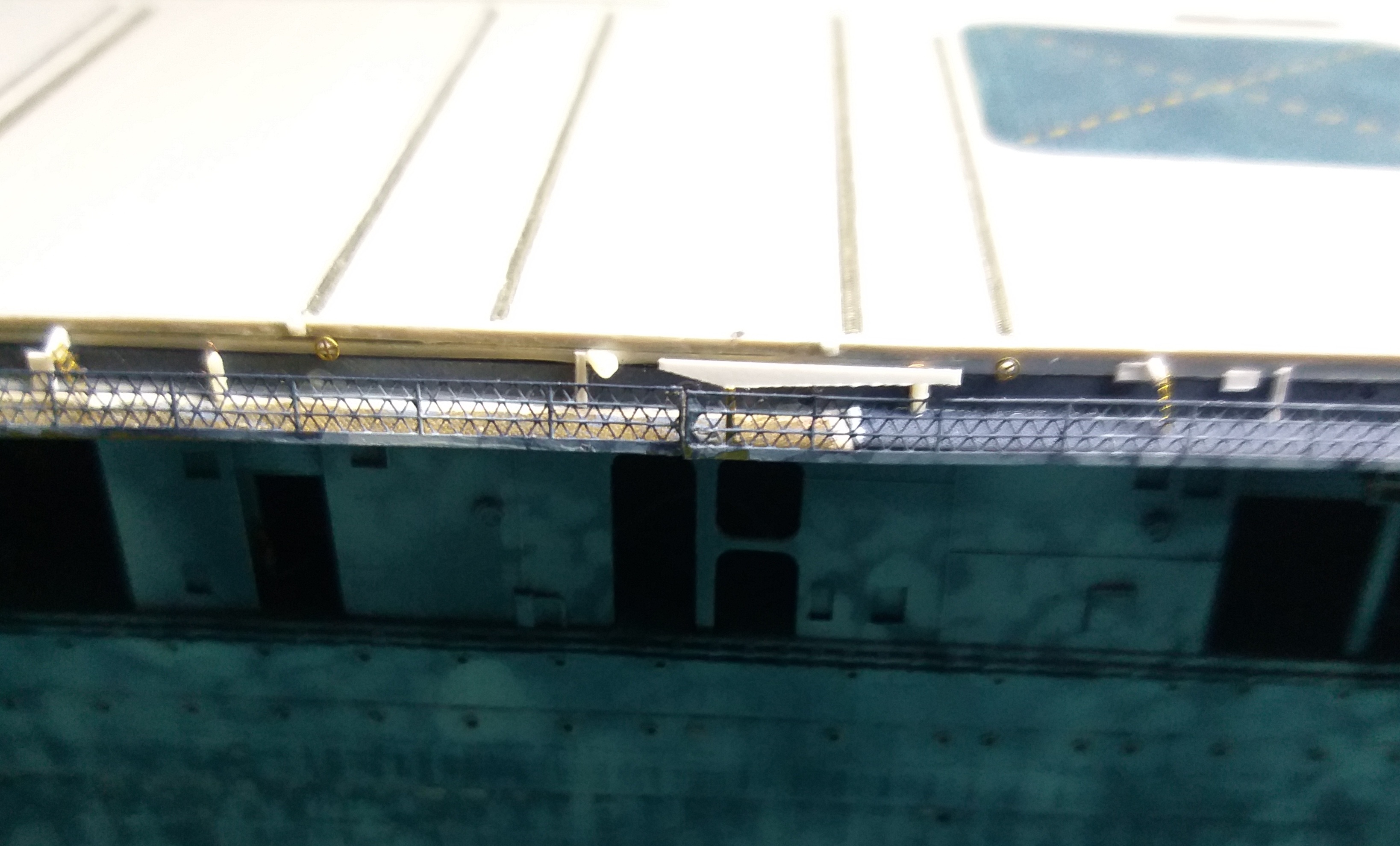

Dear all here is today's update on the carrier for the diorama battle of Coral Sea. I placed extra detailing on the forward starboard platform and placed starboard's bow catwalk...enjoy
PS
Sorry for this long delay..it was too hot here to do anything

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...l placed the port's platform and bow's catwalk connection

the bow mounted flagstaff was not mounted like you have it on the model but appears to be mounted on the backside of the 20mm gun tub as shown in this link. https://www.navsource.org/archives/02/020503.jpg
https://www.navsource.org/archives/02/05.htm

Thanks FFG-7
The flagpole will be removed...and the tube that you see there is connected with the 20mm platform and of course l will place it

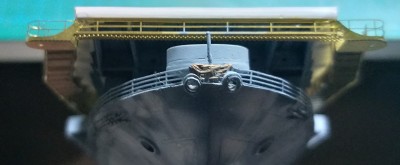

Dear all here is today's update on the carrier l had to make a massive correction for the 20mm oerlikon platform...it was misplaced by the plan..so l had to move it forward then removed the flagpole (thank you FFG-7 ) that was not on the carrier at that moment of time, finally l added a bended tube on the platform itself...and last by not least l started stern's platforms.
PS
note the searchlight in the center of the connecting bow's catwalk

Nice work, as always.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley

Thanks Devin

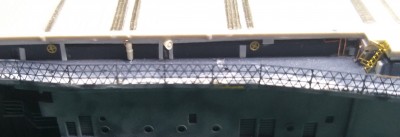

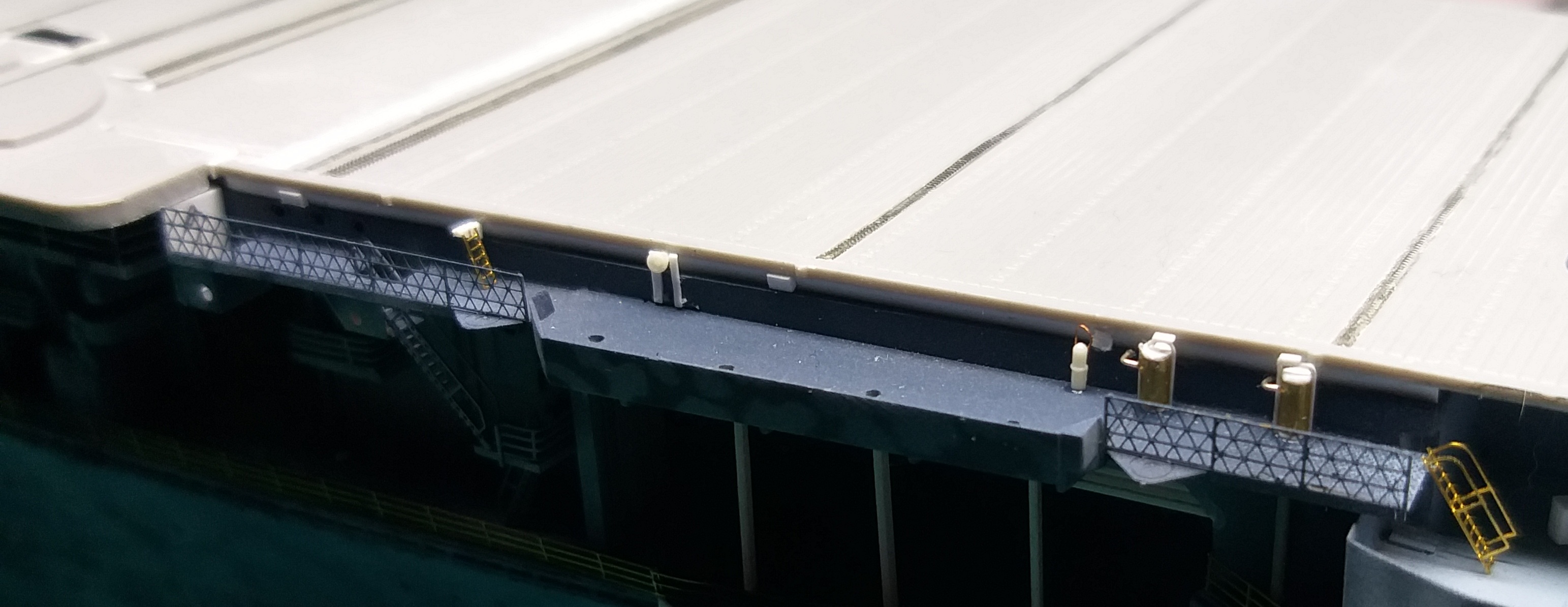

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...adding super detailing on starboard's catwalks..enjoy

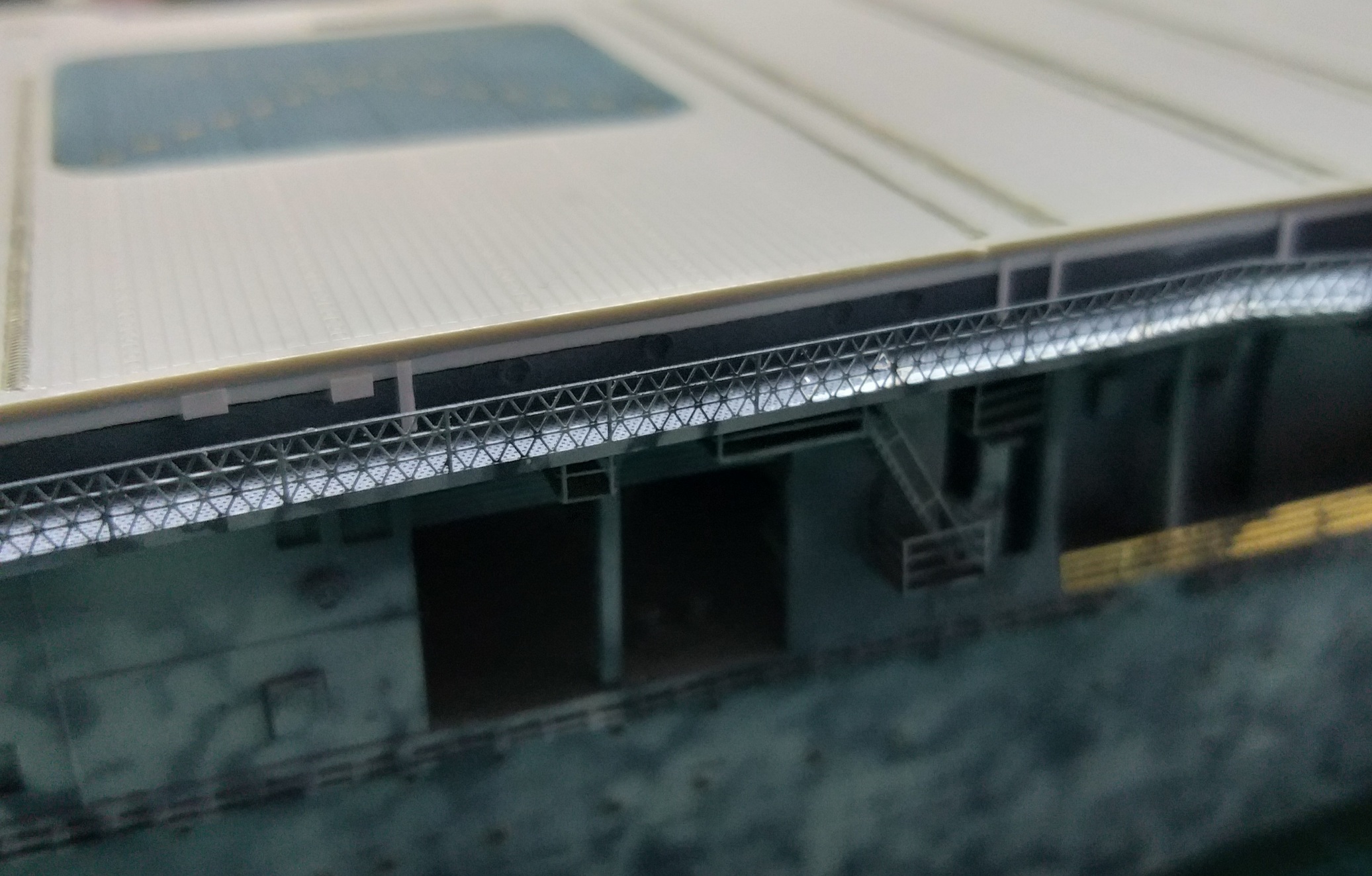

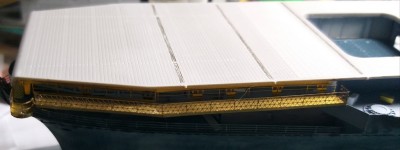

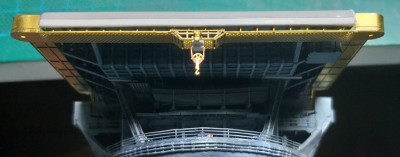

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...l placed stern's catwalk...it was extremely difficult to place it, since l had to heavily modify it. Hard but rewarding...enjoy

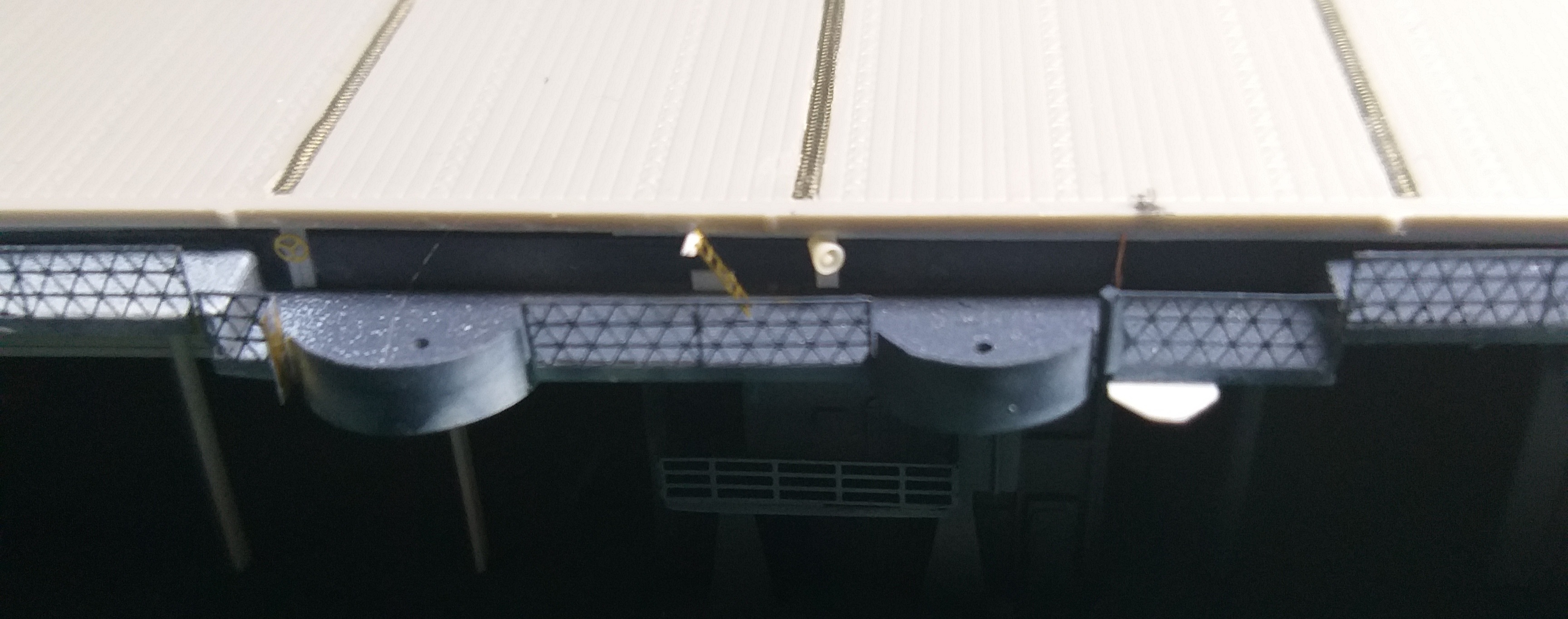

Dear all here is today's update on the carrier for the diorama battle of Coral Sea. I placed all the details on port's platform. Plus note the outriggers..enjoy

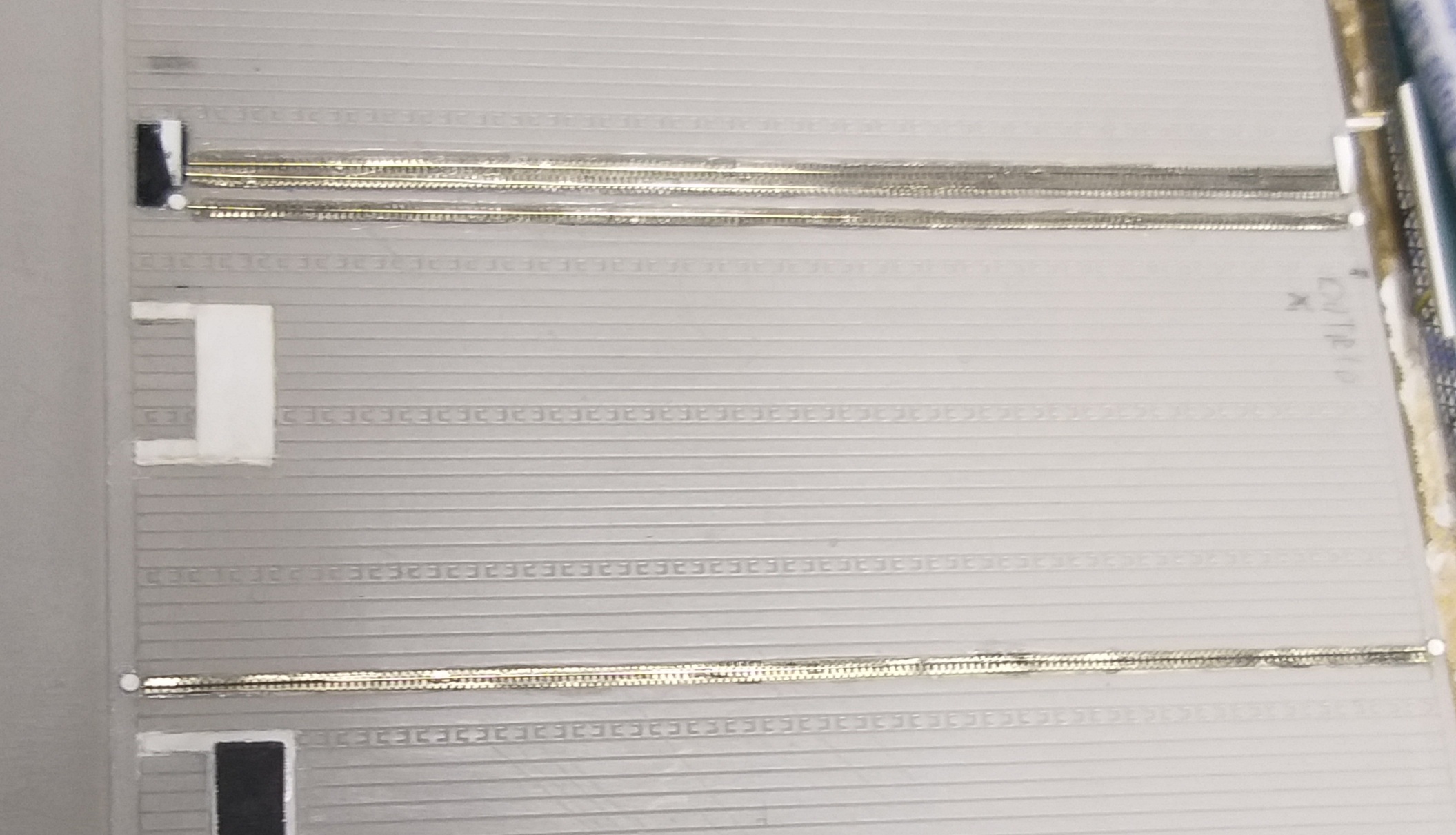

Dear all here is today's update on the carrier for the diorama battle of Coral Sea...l started to place the cable brakes on the main deck. Enjoy

Dear all here is today's update on the carrier..
More brake cables and more net cables...l know it's boring but necessary.
Enjoy

Nice progress. That catwalk and the area under the aft end of the flight deck look sharp

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Thank you Martin for your kind comment and support
