After summer break I return to construction of its models.

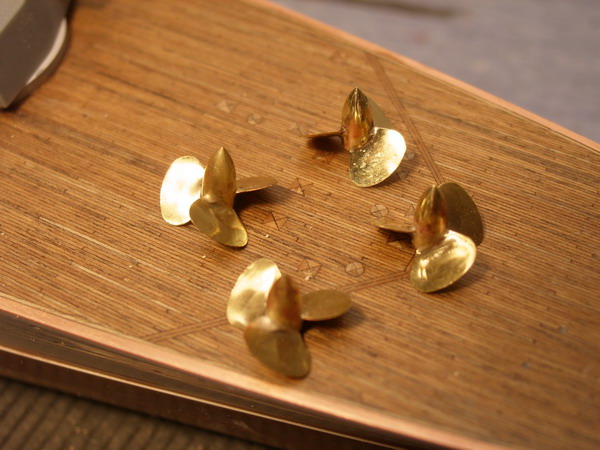

After ascent of models happen to make anew all small details:

_________________
Max

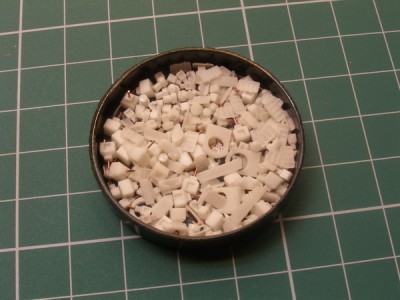

it was got 0,01 kg details

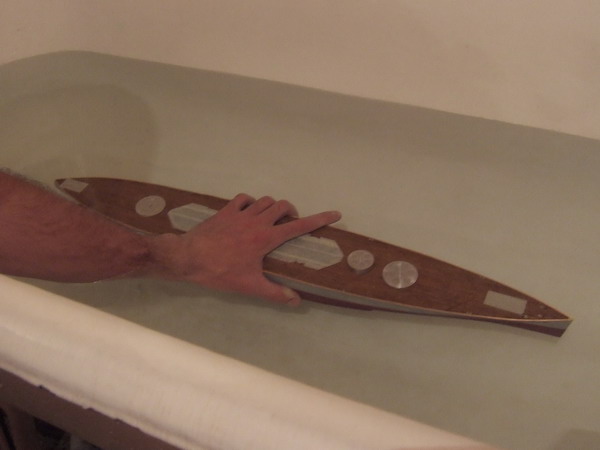

hope that model has not sunk

_________________
Max

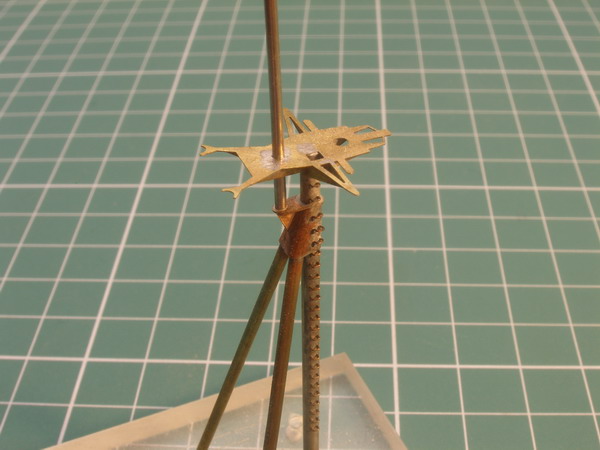

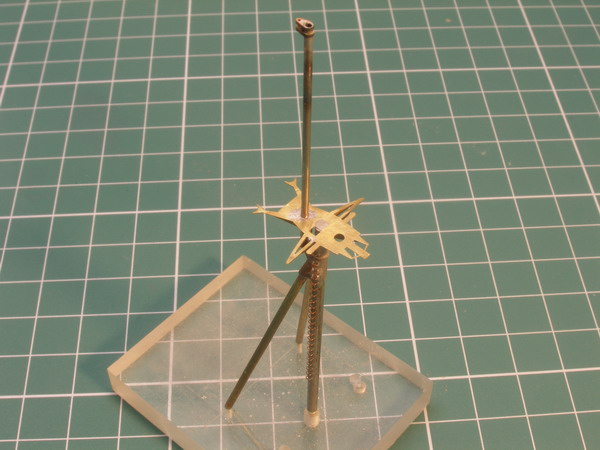

today work with fabrication mast:

_________________
Max

g8t attention to detail

but your wooden deck caught my attention can you please provide details on it, thanks

Good to see you back!

Maybe you can repost some of your deck mAking pictures, and maybe sme of of the sinking and recovery...?

Its a mystery how you can bear to put such fine modelmkaing afloat-in REAL water!!!

.....not like my fake water- of paper and gel....



JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Regard Jim!
But me for instance much like your naves on paper sea! I want to return back, be 14 - year boy, and play in sea battle by your battleships.

Repeat the history about sinking and recovery … I think this will uninteresting. This already there was is told.

_________________
Max

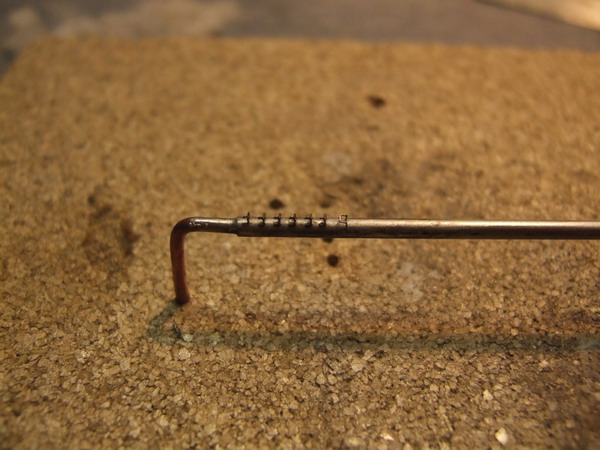

fabrication of mast

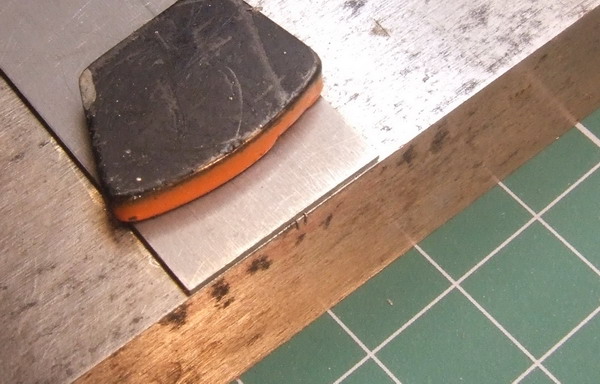

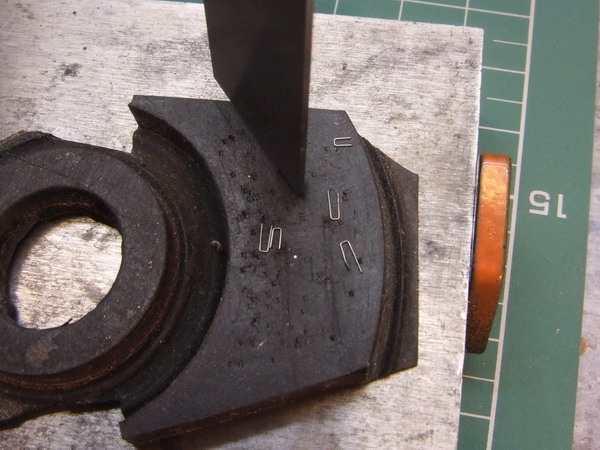

steps I gag straightedge in rubber


bent

_________________
Max

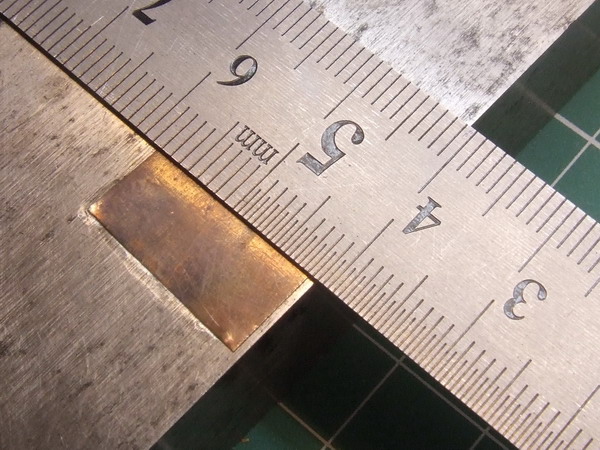

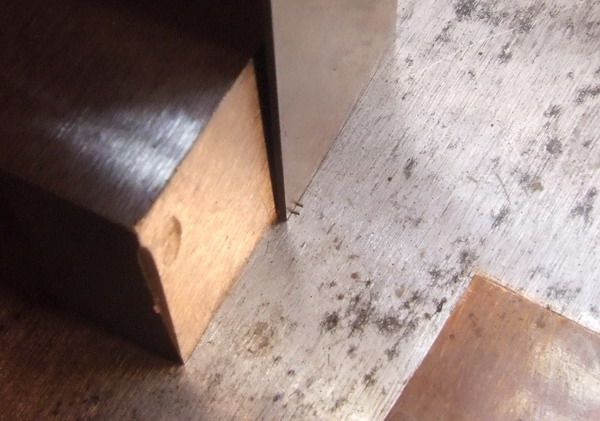

cut

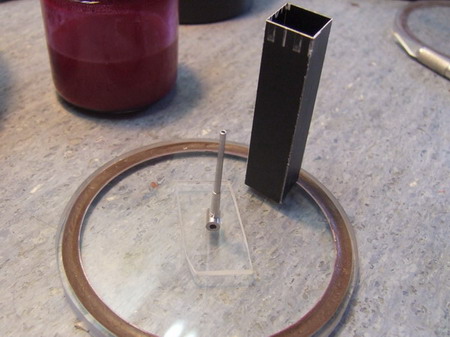

soldering by gas (the right step cost (stand)s on acid possible there was and so solder!)

_________________
Max

EXCELLENT Methodology!!!!
Love the forming of the steps in the Rubber-_ I have been using a soft pad of paper for a similar effect and similar purpose

but it does not do as good a job as your method-

I am off to look for some rubber....

JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Can you tell a little more on the soldering? I've been trying without much succes!

Foeth

Impressive job so far Maximus , i'll make sure to keep an eye on this one.




Jose

I am bad storyteller in english - so I has drawn.

Soldering:
1. Cover fine layer tin(олова) a whole tube. there where will be steps.
2. To drip the acids under extreme steps (the detail 3 and 4) install the steps. Neatly, (from afar) warm the tube by gas burner.
3. Salve acid a tube between stairs (3) and (4)
4. Place firmly straightedge (1) in steps (3) and (4)
…

E further I think all understandable.

_________________
Max

_________________
Max

@ Maximus: I think I more or less understand, even though I do not understand how to apply the tin and what acid to use. Actually, I don't think I understand too much about the process so far ...

How do you apply a fine layer of tin? This is by heating solder or? I think I need a basic course in metal working!

Foeth

but me with plastic!

forgive me my english

1. tin(олова)=solder (http://en.wikipedia.org/wiki/Solder)
2. acid = ZnCl

_________________
Max

Stunning work!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

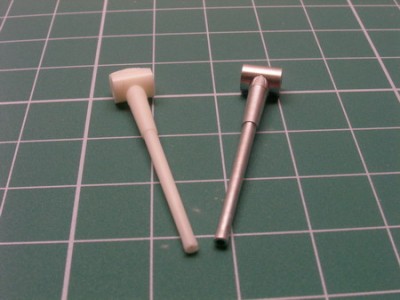

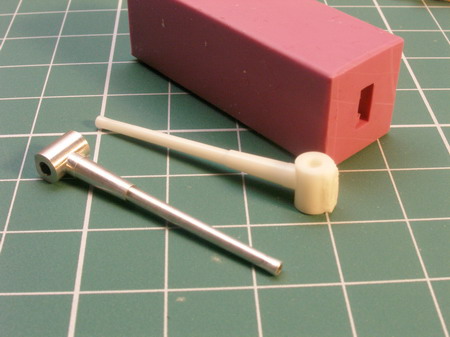

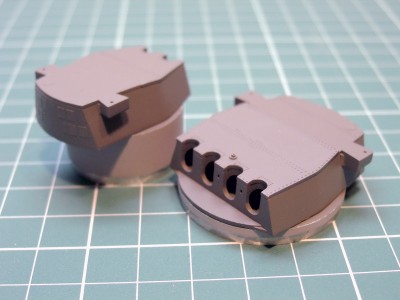

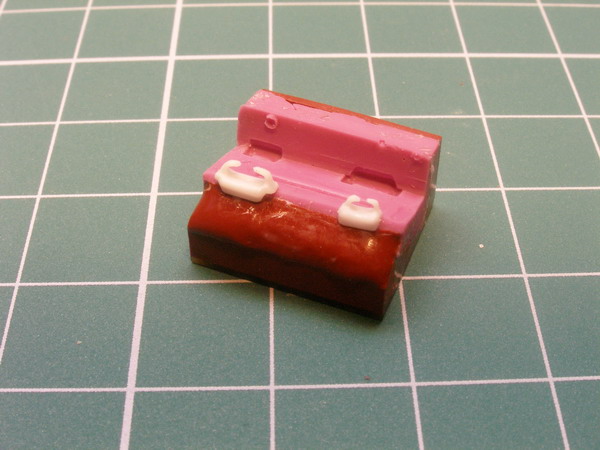

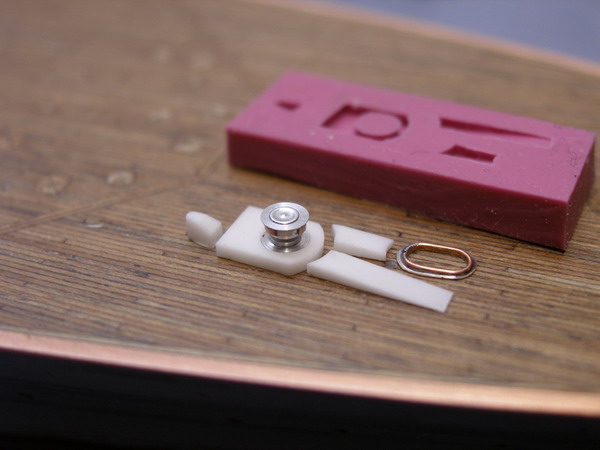

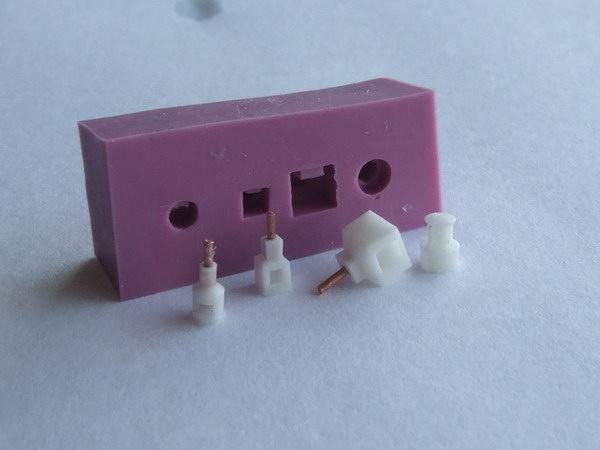

"master" model of stem of main calibre


ready stem

_________________
Max

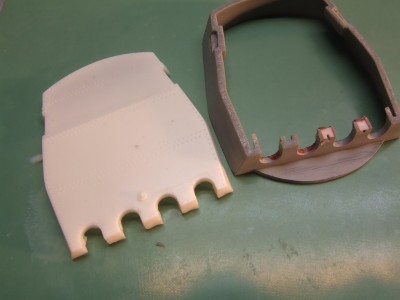

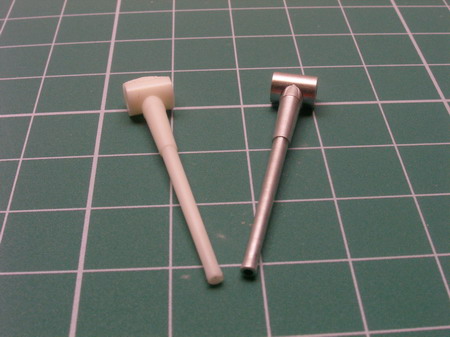

experimental "rabbits"

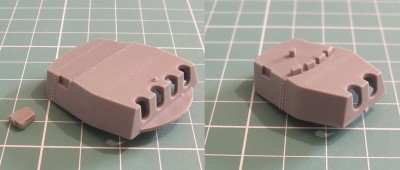

fabrication upper armor captive


original destruction

_________________
Max

is it nearly ready


it is ready!

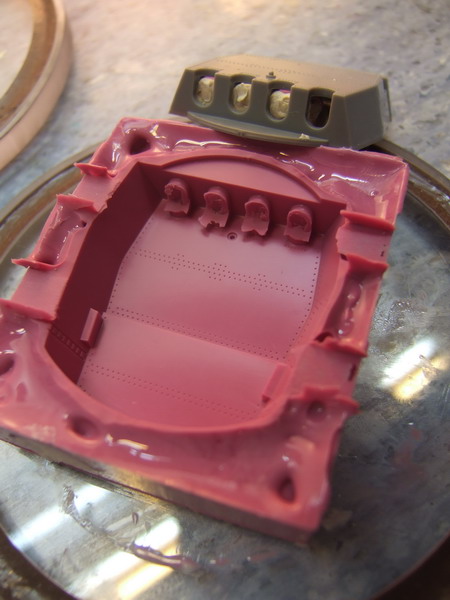

This not yet end. This only master-models

_________________
Max

Hi Maxim A man that likes soldering Simply superb craftmanship .
Dave Wooley
