PostPosted: Fri Mar 11, 2016 7:20 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
Make 127mm AA-gun turrets using Flyhawk PE and a little scratchbuild (ladders, breechs of guns)
Barrels from Master

And I don't cut through the back of the AA-turrets
Maybe it's mistake

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Mar 14, 2016 8:47 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
Complete 127mm AA-gun platforms using Flyhawk PE and Hasegawa details
Aft pair of guns were at the wrong place and I correct them

make some details: doors, portholes, ventilators, ladders, grilles, lamps

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Mar 15, 2016 2:29 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
Assemble aft searchlight platform using Flyhawk PE
Make new portholes and doors

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 16, 2016 12:22 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8837
Location: New York City
Really nice work so far. Great progress.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 16, 2016 5:55 pm
Offline

Joined: Sat Jan 24, 2009 5:16 pm
Posts: 821
Location: Wisconsin
That looks great!


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Mar 17, 2016 5:21 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1381
In a word: wow

_________________
Gabriel


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Mar 17, 2016 6:43 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
Thanks to all!

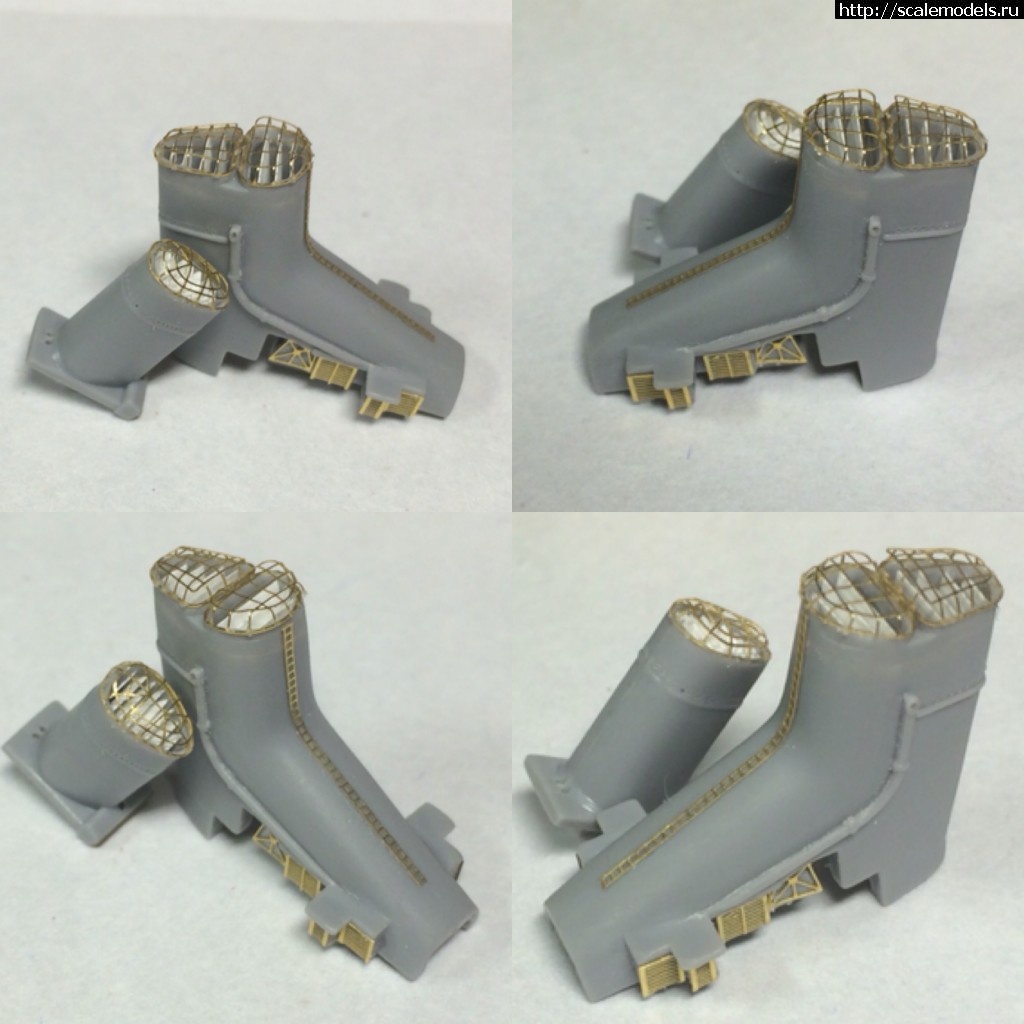

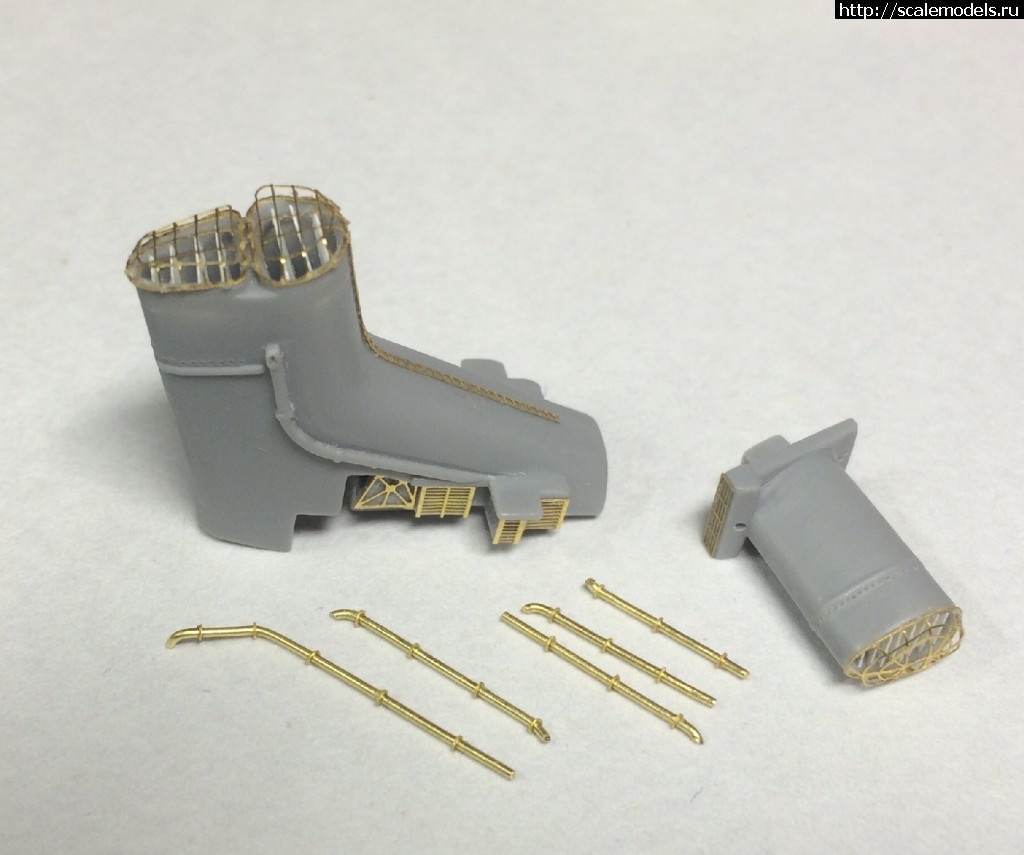

3 nights I spent on the assembly of funnels:
- remove plastic grilles (replace by Flyhawk PE)
- scratchbuild details inside funnels using Evergreen plastic 0.15mm
- scratchbuild pipes from wire
- fixing rings on pipes from Rainbow PE
- drill 0.1 mm holes on the funnels
- over grilles and details from Flyhawk PE
- remove 1 pipe from each side of forward funnel (Haguro had only 1 pipe on each side of funnel, Nachi - 2)

Total number of details at funnes (without PE railings) - 70
PE Railings on funnels will be install after painting.


Andrew

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Mar 18, 2016 10:37 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
Yesterday, I bought North Star Models resin crew
"Japanese Navy Parade" and ... "Imperial Russian Navy in working position" :heh:
It's not a joke
North Star doesn't make Japanese Navy in working position in this scale, and I needed a way out
So I bought Russians :big_grin:
In 1/700 scale nobody will be able to distinguish the Japanese from Russian
Because they have similar uniform
Unfortunately japanese uniform isn't for tropics...


The height of figures equal to 2.5-2.7 mm
I have headlight magnifier, super thin brush size 10/0 and much experience (when I paint in January 143 resin crewmens in 1/350 for battleship Sevastopol)

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Mar 19, 2016 12:54 pm
Offline

Joined: Wed Feb 21, 2007 4:46 pm
Posts: 193
Your incredible attention to detail will result in a truly magnificent model. Well done and keep up hte amazing work!


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Mar 19, 2016 1:50 pm
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
warspite63 wrote:
Your incredible attention to detail will result in a truly magnificent model. Well done and keep up hte amazing work!


Thank you!
In detailing funnels I use Takao schemes (Nachi-class funnels had similar construction)

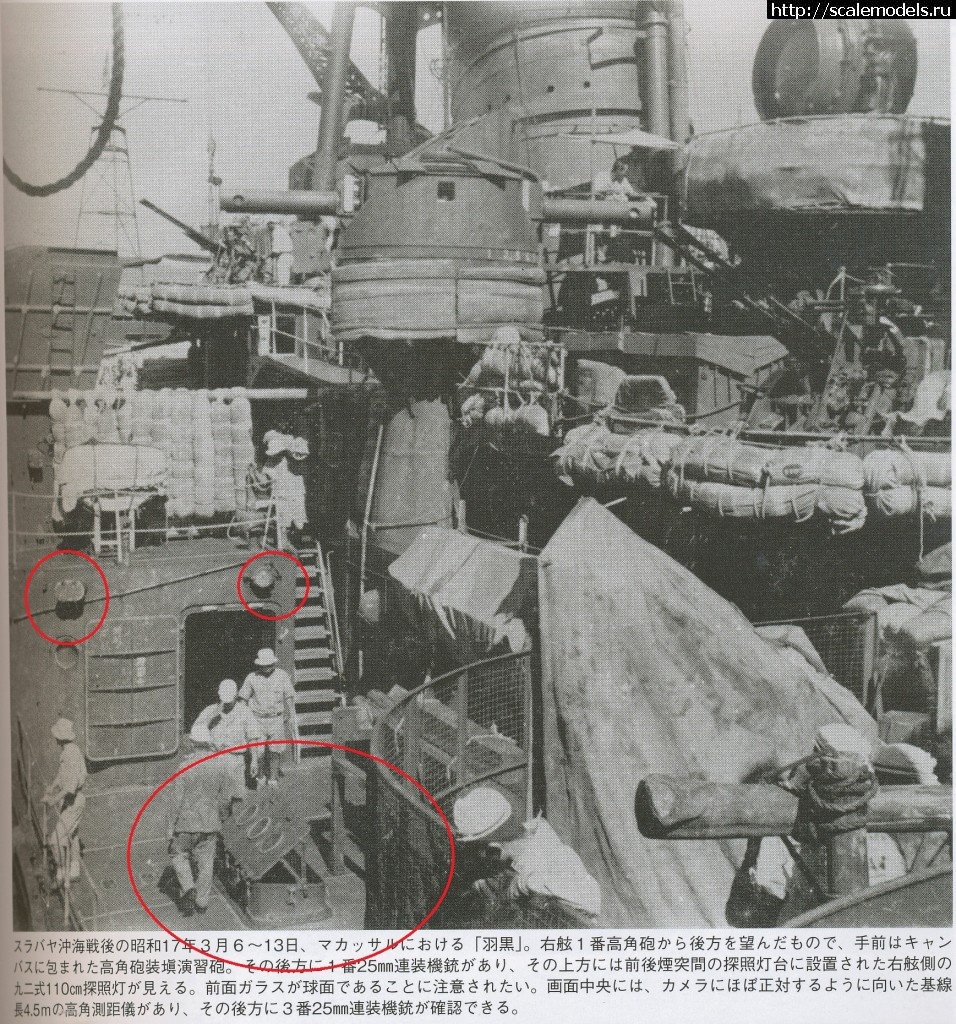

Pipes on funnels were made using these photos of Haguro

Nachi had similar pipes (1 pipe on each sidewall of first funnel)

Myoko and Ashigata had 2 pipes on each sidewall of first funnel
Myoko
Ashigara

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 20, 2016 12:56 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia

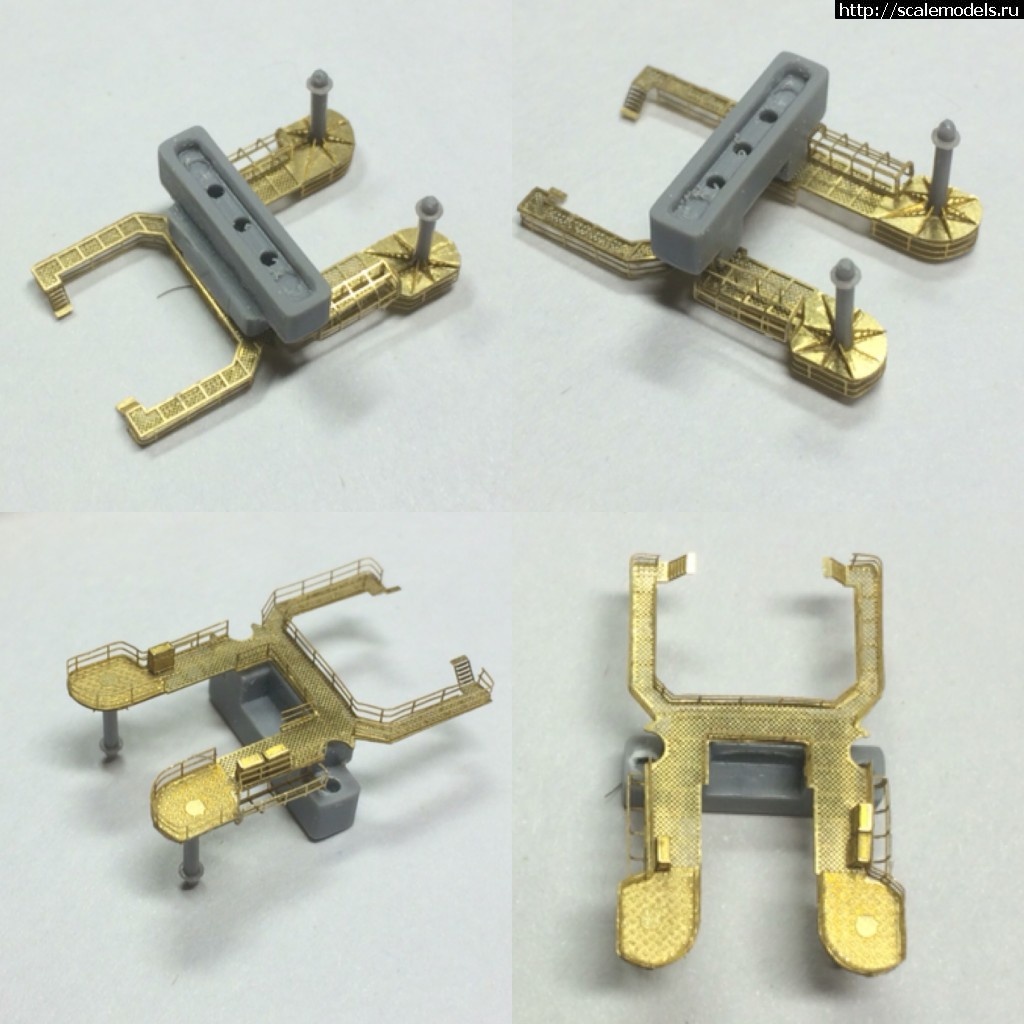

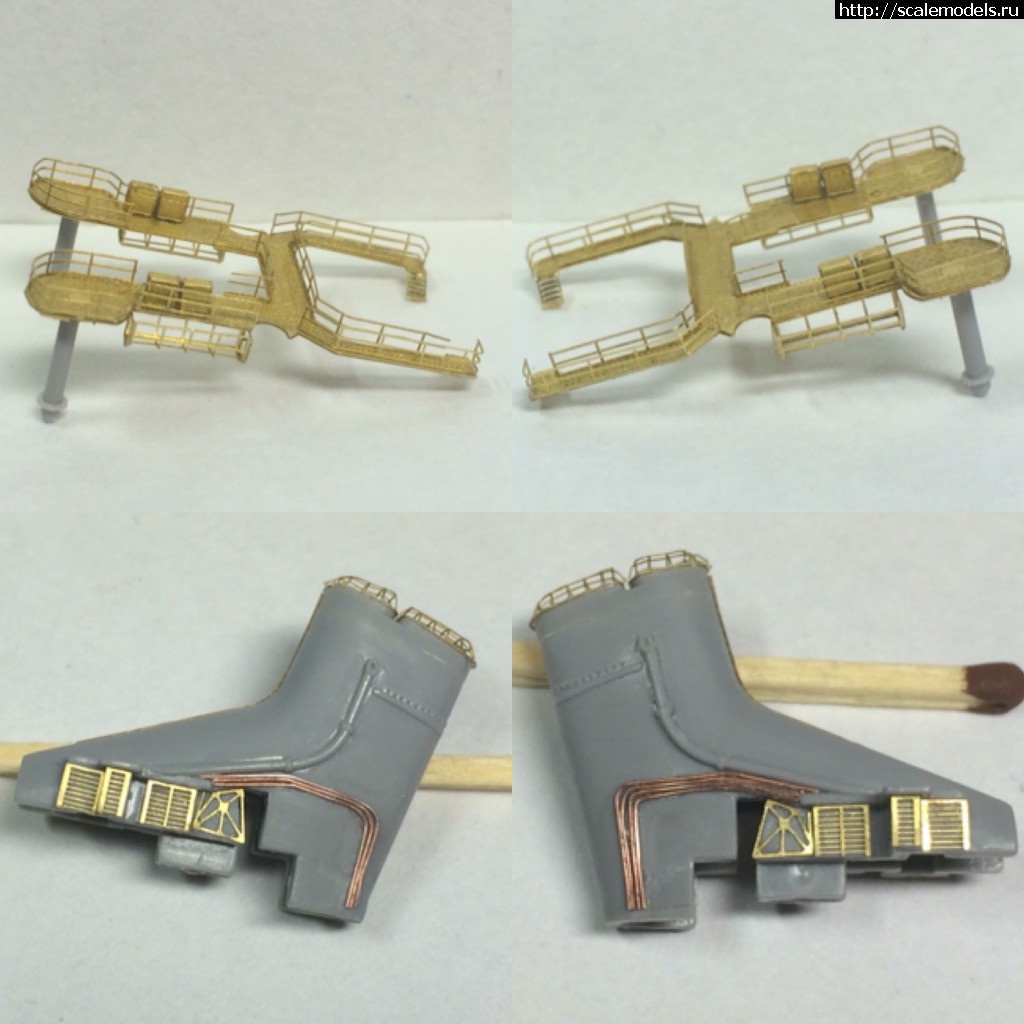

Aft 25mm AA-guns platforms
Standard Flyhawk PE, new portholes, additional doors

Nose 25mm AA-guns platform
Standard Flyhawk PE, additional fenders first shots

Additional wiring on first funnel

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 20, 2016 2:32 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 2588
Location: Belgium
Those funnels and AA platforms look great! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Mar 20, 2016 4:08 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 1321
Location: Tempe, Arizona
Amazing work!

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Mar 21, 2016 4:12 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia
ArizonaBB39, marijn van gils
Abram, Marjin, thank you guys!

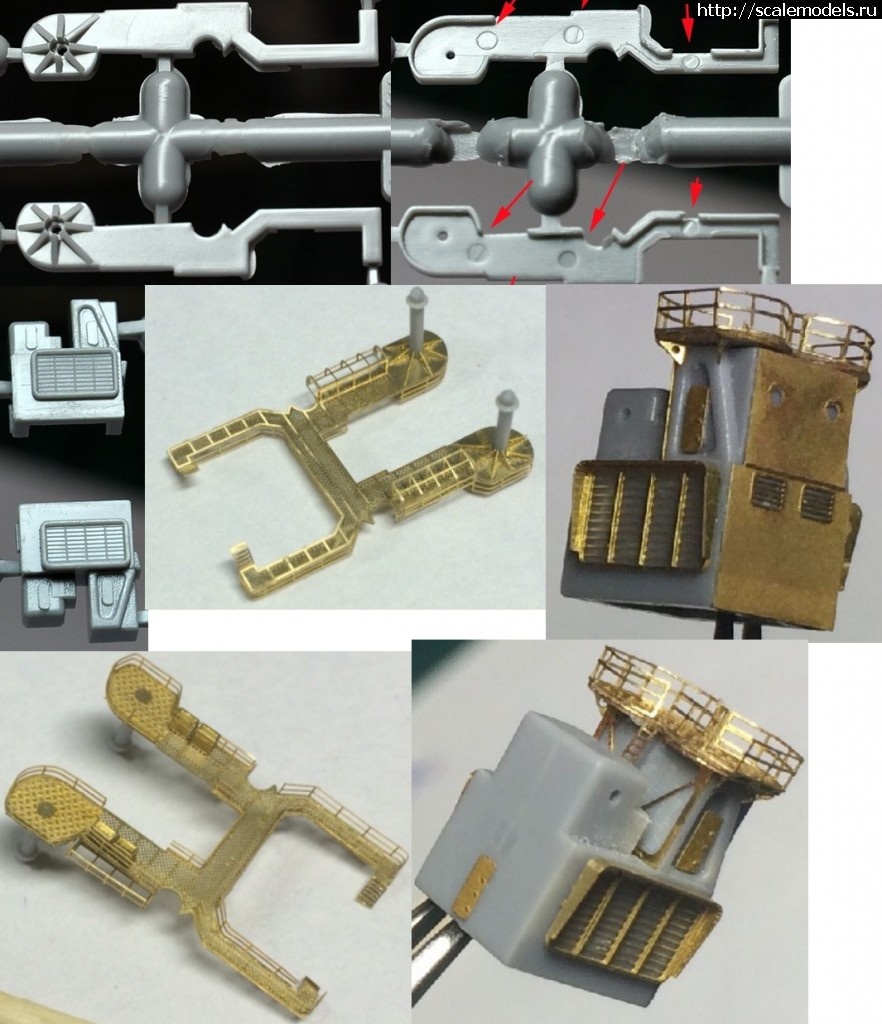

some differences "Before-After"

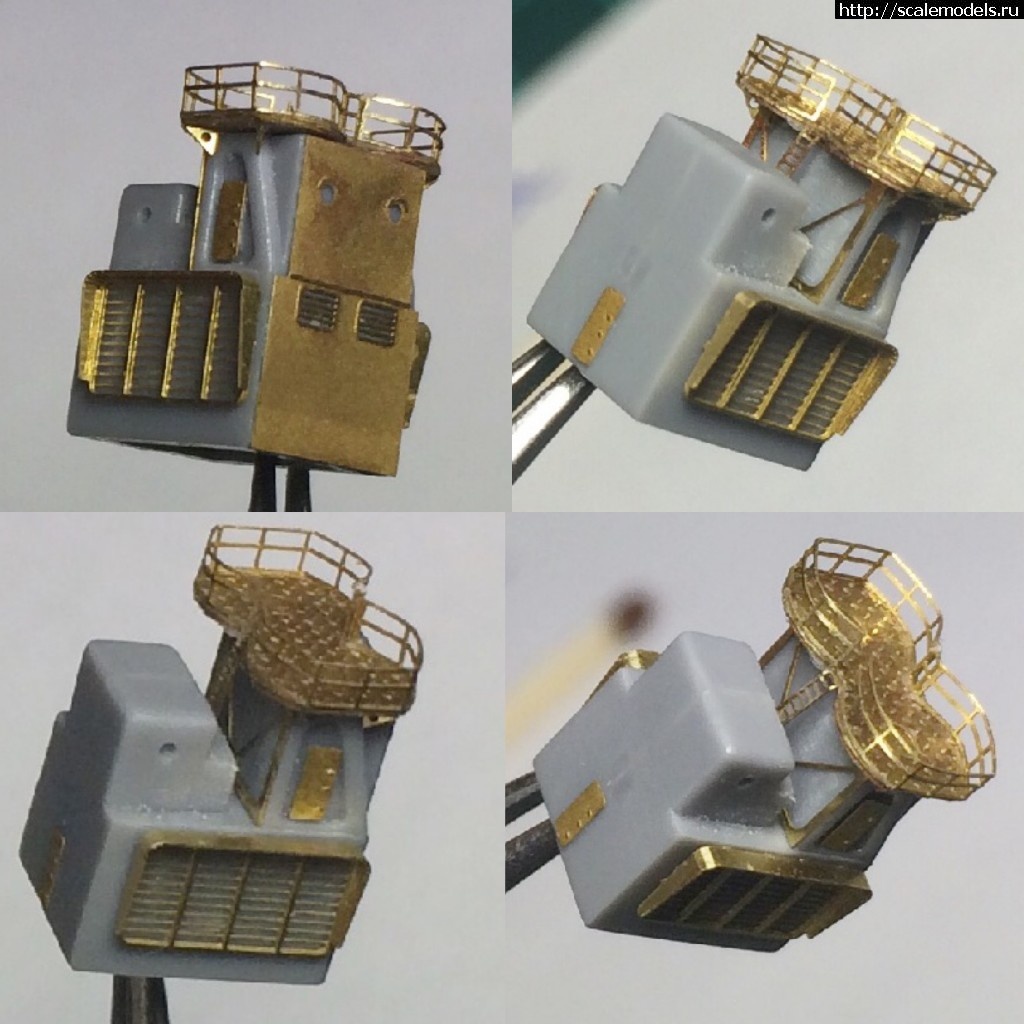

Nose searchlight platform
Flyhawk PE, copper rod/wire, additional ladders, scratchbuild davits from steel wire, Rainbow 0.3 fixing rings

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 7:33 am
Offline
User avatar

Joined: Wed Jul 29, 2015 3:37 am
Posts: 421
Location: Moscow, Russia

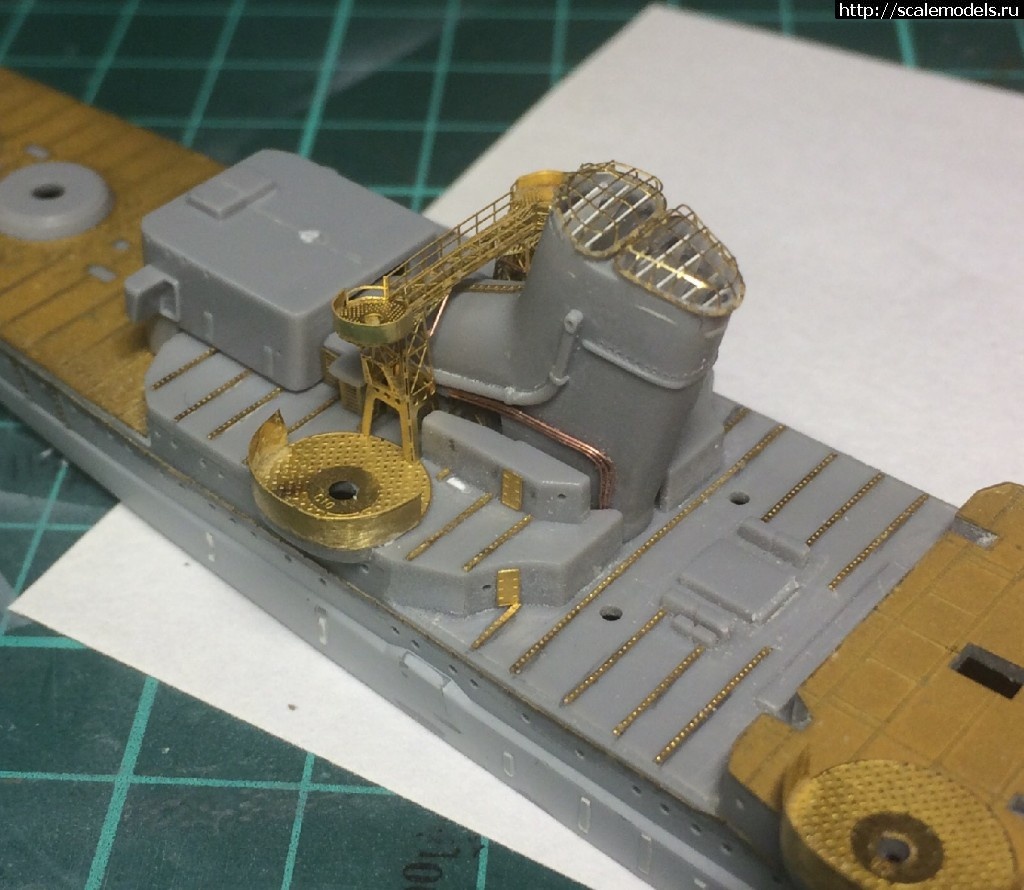

Complete aft superstructure
New portholes, doors, ladders and Flyhawk PE

Next will be crane for Haguro from Rainbow PE

_________________
Andrew
1/350 battleship Sevastopol 1914
1/700 heavy cruiser IJN Haguro 1942
1/350 SSBN K-551 Vladimir Monomakh


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 10:11 am
Offline
User avatar

Joined: Fri Feb 27, 2015 3:59 am
Posts: 21
Location: Ukraine
:thumbs_up_1:

_________________
Best regards, Ievgen Timonin.
My models on this website


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 12:03 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8837
Location: New York City
Top notch work here. Looks great!


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 7:02 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 90
Location: Newyork
:thumbs_up_1:
great work!

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 9:58 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 1321
Location: Tempe, Arizona
Stunning work Andrew, thank you for sharing.

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Mar 23, 2016 10:04 pm
Offline
User avatar

Joined: Mon Nov 11, 2013 11:01 pm
Posts: 1257
Location: Detroit area
Really excellent PE work in such a tiny scale, but...they aren't going to make you sling multicolored paint at this thing for some sort of ARP ship promotional stunt, are they Andrew? :p

(Yes, I know the Haguro is one of the new anime ships WG will be offering soon.)

_________________
Sean Nash, ACG (aircraft camo gestapo)

On the ways:
1/200 Trumpeter HMS Nelson
1/700 Tamiya USS Yorktown CV-5

In the stash:
1/35 Italiari PT-109
1/35 Tamiya "Pibber" Patrol Boat
1/350 Trumpeter USS Yorktown CV-10


Report this post
Top
 Profile
Reply with quote
