PostPosted: Mon Sep 06, 2010 9:15 pm
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ

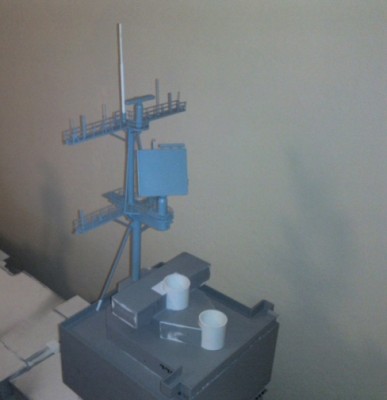

Over the last few weeks have Been finishing off fwd mast [fitting bracing and making up the small details like antennas,etc.] Also the motor's have been refitted and ESC's moved 2 a better position after painting engine and battery spaces.

Cheers Bruce


Attachments:
Fmast3a.jpg [ 149.41 KiB | Viewed 2551 times ]
fwdmstde2a.jpg [ 120.31 KiB | Viewed 2551 times ]

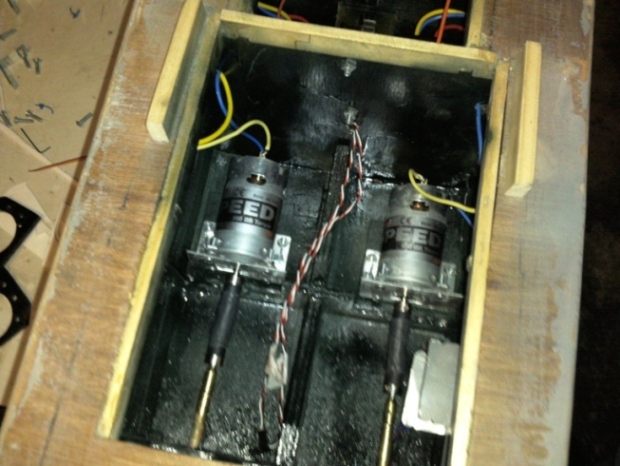

ESCrefit1a.jpg [ 147.31 KiB | Viewed 2551 times ]
Mtrrefit1a.jpg [ 134.03 KiB | Viewed 2551 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Tue Sep 07, 2010 6:08 am
Offline

Joined: Sun Jan 04, 2009 1:31 pm
Posts: 1780
Outstanding! :thumbs_up_1: Keep it coming. I can't wait to see more. I've always had a soft spot for LB and what she could have (should have) been.

Regards,
Bob


Top
 Profile
Reply with quote
PostPosted: Tue Sep 07, 2010 9:52 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Thx Bob!

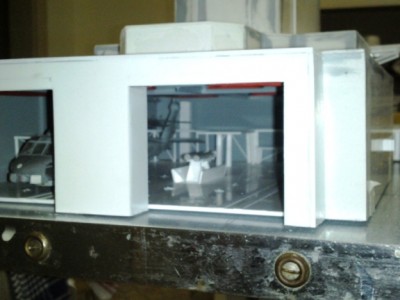

I have 4 projects on the hop at present and things can get misplaced around here! Case in point was going to make up the ASROC launcher yesterday with this large rectangular bit of 2mm styrene that had 2 smaller bits cut off.....nearly cut it up until I noticed faintly written on it "HANGER FLOOR" :heh:
So I ended up making up some catwalks yesterday, a central weapons elevator and RAST tracks tonight. Then remembering something FOOMAN posted on RCGroups about doin tiedown points I did 30 odd of them 2 tonight !! Now I need 2 get some plastic railings and get it all finished so I can paint it!! :cool_1:

Cheers Bruce


Attachments:
File comment: tiedowns just visible
Hgrflr4a.jpg [ 123.12 KiB | Viewed 2533 times ]
Hgrflr3a.jpg [ 103.07 KiB | Viewed 2533 times ]
File comment: before I did Tiedown points
Hgrflr2a.jpg [ 107.93 KiB | Viewed 2533 times ]
Hgrflr1a.jpg [ 143.93 KiB | Viewed 2533 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Tue Sep 07, 2010 11:01 am
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
Those helos are SICK!!!! More photos of them please!!!! :thumbs_up_1:

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Tue Sep 07, 2010 10:04 pm
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ

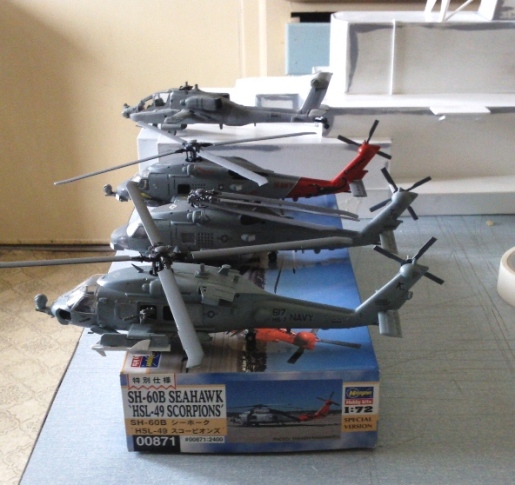

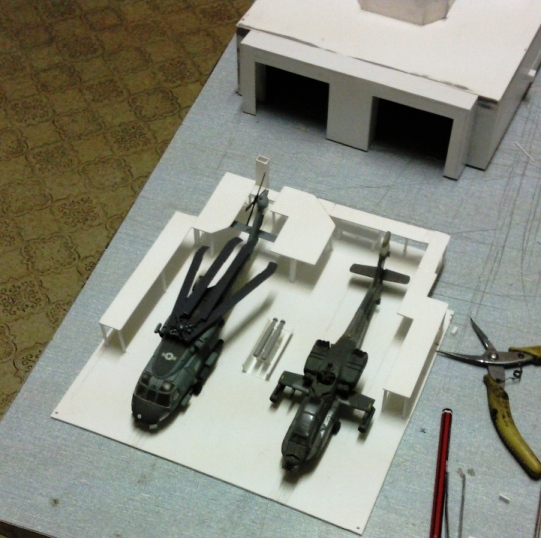

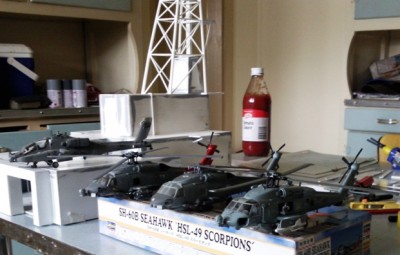

Cliffy B I have lots of chopper's !! The AH-64 is actually being used for 'bits' as it is extensively heat damaged (U can't tell in the pic but up close its very noticeable). I have 3 -60 series Heli's the B with folded rotor's, a B mod'd with Hellfires (sort of R spec) and my newest is a HH-60H with the Minigun and Penguin missile. As well as A CH-53E Super Stallion (+ another building) and an MH-53J PavelowIII (+2 more unstarted in box's)
The SH-60B will be in USS Long Beach's hanger, the SH-60R on her Flightdeck and the HH-60H is for USS California's flight deck.

Cheers Bruce :cool_1:


Attachments:
thelot1a.jpg [ 133.51 KiB | Viewed 2521 times ]
CH53eMH53jSH60bAA.jpg [ 105.13 KiB | Viewed 2521 times ]
's.jpg [ 127.12 KiB | Viewed 2521 times ]
'sBa.jpg [ 120.8 KiB | Viewed 2521 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Tue Sep 07, 2010 11:03 pm
Offline
User avatar

Joined: Thu Mar 05, 2009 10:38 pm
Posts: 3127
Hvy,
I see you are going to some pretty extensive lengths to make everything as real as possible. Most people paint up Mk46 torpedos like they are already in the water and never think about how they actually attach to a helicopte or a plane. I would suggest you look at this page:
http://www.tpub.com/aviord321/54.htm and look up the Mk78 Mod0/1 bands with Air Accessories. Torpedoes don't just magically hang off a helo or fixed wing aircraft. They have to be banded with kits, a parachute put on the back, a bunch of long wires put on them, caps, and some other stuff before you can even attach it to a helo much less drop it.

So, I think it would add some more realism to your model if you were to study this it and include it on your torpedoes.

Keep up the great work! We really like your progress, and we look forward to more posts!

navydave

_________________
Proper Preparation Prevents Poor Performance


Top
 Profile
Reply with quote
PostPosted: Sun Sep 12, 2010 10:00 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Thx Mate,
The Hanger's not going to be super detailed just enough to look good from 2 foot or so looking in the doors. It was mostly made with bits out the off cuts box and some styrene 1.6mm tube.
I have been reworking the fwd superstructure sections yesterday and today will post some pic's of the alterations later when the glue has dried. Finally made a start on fwd Davits have completed fwd most pair, working on the Davits for the 40' motor boats next

Cheers Bruce

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10


Top
 Profile
Reply with quote
PostPosted: Wed Oct 06, 2010 7:30 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ

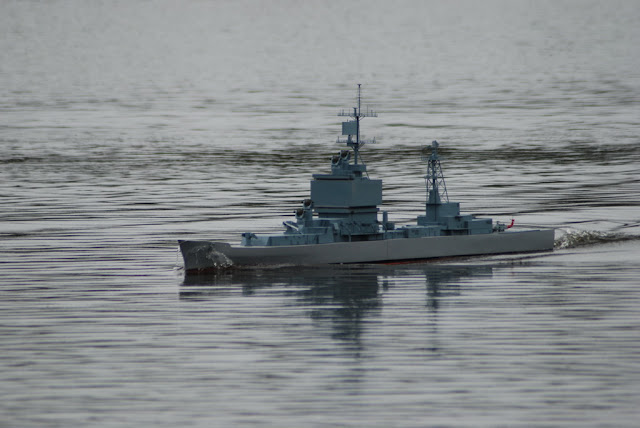

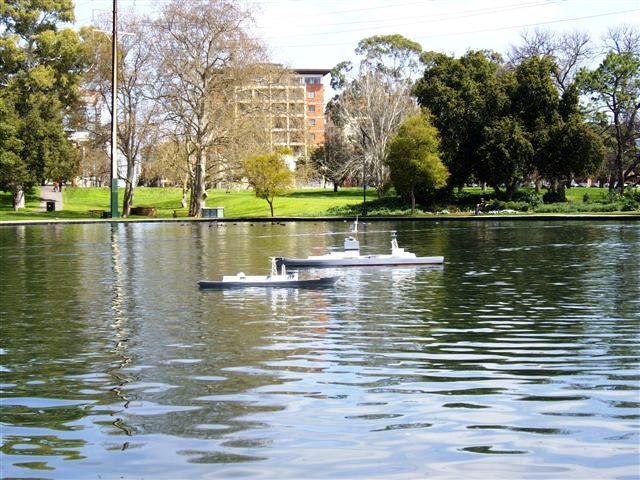

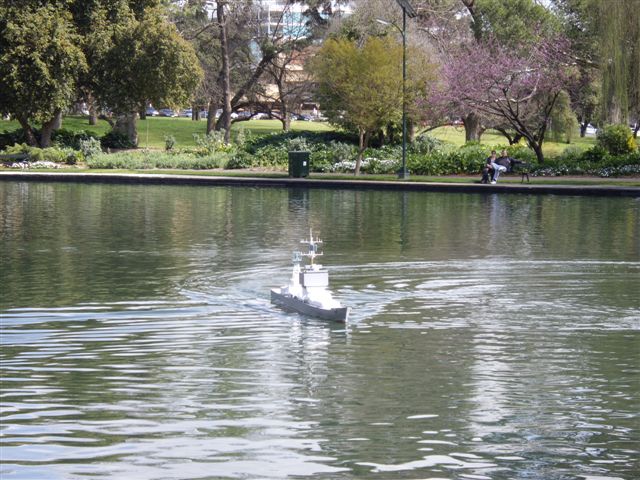

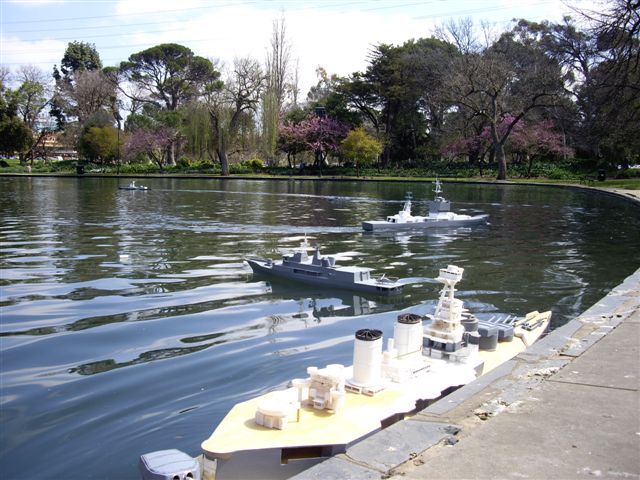

Here R some pix from recent TF72 club sail day. Fwd davits R 80% done and have rebuilt upper bridge around the SPG-55 targeting radar base's for more accurate look. About to start fitting w/t doors and some deck lighting and deck details.
Also all main Radar's now have drive!! both Radar's on fwd mast SPS-48 and upper SPS-67 have separate geared motors and the aft SPS-49 just got a new drive motor replacing the servo that I had previously used in there.

Cheers Bruce


Attachments:
LB1.JPG [ 87.4 KiB | Viewed 2457 times ]
LB2.JPG [ 93.73 KiB | Viewed 2457 times ]
LB3.JPG [ 80.36 KiB | Viewed 2457 times ]
File comment: LB, HMAS Parramatta (ANZAC class) and HMS Hood moored an with Akula surfacing
LB4.JPG [ 89.45 KiB | Viewed 2457 times ]
File comment: Charge! slowing from high speed dash under the bridge
LB5.JPG [ 93.78 KiB | Viewed 2457 times ]
File comment: USS Long Beach moored
LB6.jpg [ 96.14 KiB | Viewed 2457 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Sun Oct 10, 2010 11:44 pm
Offline
User avatar

Joined: Thu Sep 22, 2005 8:58 pm
Posts: 1550
Location: Houston, Texas
That is one awesome RC boat.

_________________
╔═════╗
Seasick
╚═════╝


Top
 Profile
Reply with quote
PostPosted: Thu Oct 28, 2010 3:16 pm
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Thx Seasick,

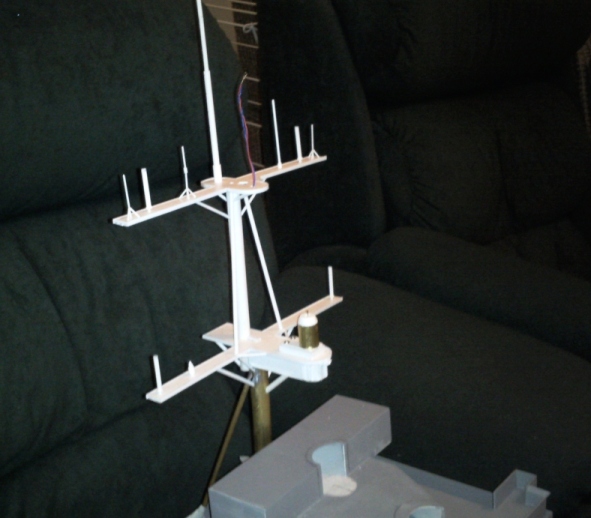

Been busy doin mast details and have been detailing around the upper bridge ( including re-glazing upper bridge windows) going 2 be painting LB with Tamiya Haze Gray spray can(s...) the grey primer just isn't durable on a RC model (and not quite dark enuff).
Should have some decent pics of her after the weekends scale model expo our branch of TF72 is doing a static display.

Cheers Bruce


Attachments:
File comment: Done!!
aftmstptd2a.jpg [ 115.47 KiB | Viewed 2398 times ]
File comment: just need 2 do all the small antenna on upper section. (both radar antennas now rotate!!)
fwdmstptd1a.jpg [ 83.73 KiB | Viewed 2398 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Sun Nov 14, 2010 2:00 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Here r some more pix of the beastie... A couple from scale model expo showing her hanger and one of the completed fwd mast ( except for some wire rigging which will be done later once painting is complete).
Hopefully will have fwd missile launchers and SPG-55 radars within next week They may be on their way tomorrow or tuesday!! Getting some detailing done before the TF72 regatta on 4th&5th Dec Monster road trip coming up for Regatta 1336km...1way or 2672km round trip!!


Attachments:
Fwdmstcomplt.jpg [ 136.78 KiB | Viewed 2349 times ]
File comment: missile loading doors done
misdrs4a.jpg [ 108.14 KiB | Viewed 2349 times ]
File comment: LB on display with USS Saucy and 2 PT boats
Expo1e.jpg [ 135.76 KiB | Viewed 2349 times ]

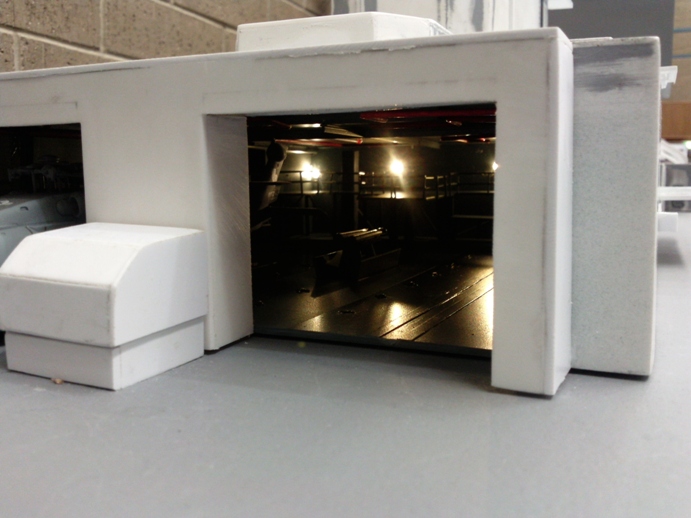

File comment: hanger lights on, still 2 more white LEDs to go in at aft end of hanger ( and 2 more red LED's too)
Expo1c.jpg [ 143.09 KiB | Viewed 2349 times ]
29102010923 (2).jpg
29102010923 (2).jpg [ 49.42 KiB | Viewed 2349 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Sun Nov 14, 2010 4:57 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
Beastly hangar interior sir!!!!! Keep it up! :thumbs_up_1:

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Mon Nov 15, 2010 3:42 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Thx Mate! I never intended 2 do walkways originally but I saw Boatmans 1/144 USS Nimitz(on WMU) and the walkways (and lights setup) he had done in her stern area and I it gave me the idea for the walkways. The port side where the SH-60 is stowed is set up as a maintenance bay , with stbd side for the primary helo ( if you'd call it that).

Cheers Bruce

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10


Last edited by HvyCgn9 on Wed Nov 24, 2010 12:37 am, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Wed Nov 24, 2010 12:36 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Measured the overall height of the fwd mast recently and after making an adjustment for top radar clearance USS Long Beach is (from keel 2 TACAN frisbee) 99cm tall ( or 38.97 inches).
I have been adding resin cast doors, loudspeakers, fire hoses, deck hatches, and some vents. Eventually will have working deck lighting ( I need 2 solder about 40 odd 1.8mm LED's 2 their resistors 1st!!, the wire the buggas up..) and Nav lights ( port N stbd and 2 white mast lights).

Cheers Bruce :cool_1:

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 6:56 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 770
Location: Adelaide,SouthOZ
Recently drove over to New South Wales for the TF72 annual regatta, USS Long Beach had received a weapons fitout of her Fwd mk-10 launchers and associated SPG-55 targeting Radar's thanks to some timely shipping by Alan Pew of APS models. I picked up the rest of her fittings from Alan at the regatta and got 2 sail with his model of INS Mumbai. I have been constructing some of the remaining weapons and had a bit of a test fit this afternoon.

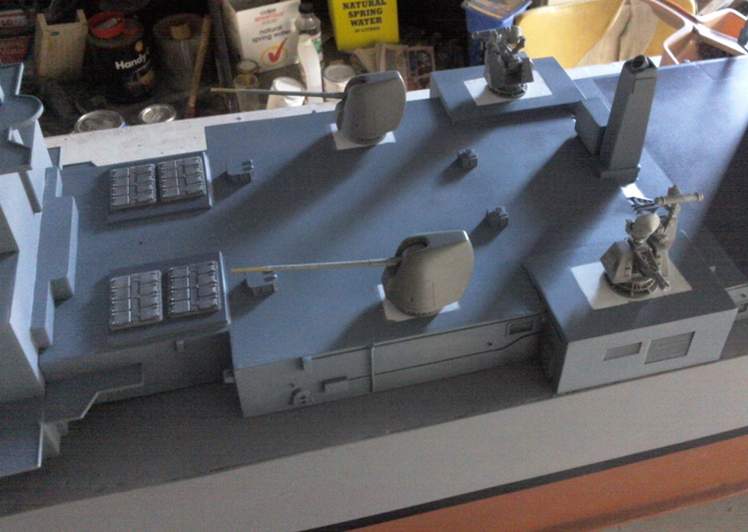

Here R some pic's of the new weapons fit and a couple of LB at the Regatta.

Cheers Bruce :cool_1: :cool_1:

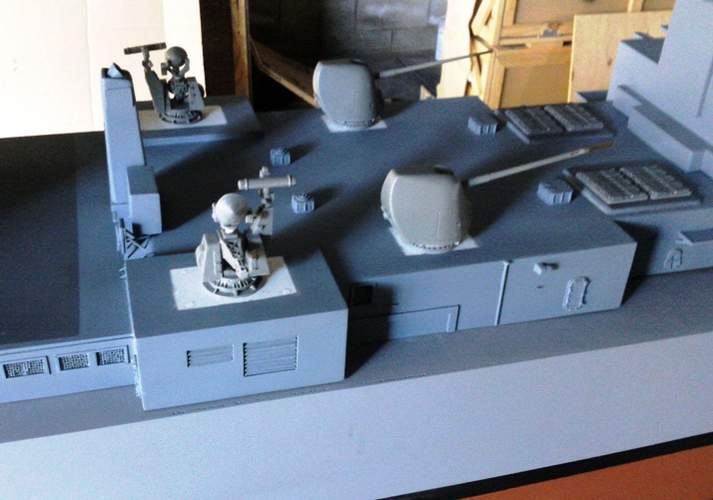

pic by OZpirate
also by OZpirate
CGN-9 USS LONG BEACH, DDL-42 HMAS KOKODA, DDG-62 INS Mumbai
pic by OZpirate

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS SEAWOLF SSN21
1/72 RC USS ALBANY CG10


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 9:10 am
Offline
User avatar

Joined: Sat Feb 03, 2007 1:00 pm
Posts: 935
Location: Bowmanville, ON, Canada
I do like your upgrade choices! Looking sweet! Although, that's an awfully large bird in the background! (Pelican?) Aren't you afraid it may pick a fight with your ship??? :destroyer: :big_grin: :big_grin:

_________________
Darren (Admiral Hawk)
In the not so tropical climate of the Great White North.


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 10:03 am
Offline
User avatar

Joined: Thu Mar 05, 2009 10:38 pm
Posts: 3127
Fan-tastic. Your model is turning out to be quite a master-piece. May I suggestion something? With the installation of VLS aboard, why don't you replace the 0-2 level Mk10 launcher and the main deck's Mk10 magazine with 2 64-cell VLS arrangements? The Mk10's rate of fire is super slow and requires dudes to manually fin each missile. Yikes.

However, if you replace them with VLS, oh boy. Then, on the main deck, you can replace the Mk10 launcher with a Mk71 gun.

Also, since you have the hanger (nice job by the way) replacing aft Mk10 magazine, why keep the Phalanx how they were arranged? Why have both Phalanx and Goalkeeper? If you want to keep that stair-stepped arrangement, may I suggest you replacing Phalanx with RAM instead?

Keep up the good work. By the way, where can I order some of these parts you have? I would love to have a 1/72 scale Phalanx or Goalkeeper? Do you have a link you can send me? Thanks, man!

_________________
Proper Preparation Prevents Poor Performance


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 10:23 am
Offline
User avatar

Joined: Thu Mar 05, 2009 10:38 pm
Posts: 3127
Bruce,

You dirty traitor! http://www.wmunderway.8m.com/cgi/yabb2/ ... 800120/119 What do you have to say for yourself?! :heh:

The pictures you post up there are really nice, man! It would be great if you posted them up here, too! Don't leave us out! We want to see more of your Longbeach!

_________________
Proper Preparation Prevents Poor Performance


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 10:31 am
Offline
User avatar

Joined: Fri Dec 21, 2007 12:57 pm
Posts: 484
Oustaning work on the Long Beach. I'd love to see this in person someday.


Top
 Profile
Reply with quote
PostPosted: Thu Dec 09, 2010 10:43 am
Offline
User avatar

Joined: Sat Feb 03, 2007 1:00 pm
Posts: 935
Location: Bowmanville, ON, Canada
navydavesof wrote:
May I suggestion something? With the installation of VLS aboard, why don't you replace the 0-2 level Mk10 launcher and the main deck's Mk10 magazine with 2 64-cell VLS arrangements? The Mk10's rate of fire is super slow and requires dudes to manually fin each missile. Yikes.

Also, since you have the hanger (nice job by the way) replacing aft Mk10 magazine, why keep the Phalanx how they were arranged? Why have both Phalanx and Goalkeeper? If you want to keep that stair-stepped arrangement, may I suggest you replacing Phalanx with RAM instead?


FWIW, Good suggestions Dave, but I like the Mk10 launchers and SPG 55 directors! I think they look cool! Bring back the LEAHY's!! Don't change it Bruce!!! :big_grin: :big_grin: :wave_1:

Something I found out during discussions about RN ships, the Goalkeeper is used when there is below deck space. The Phalanx is used when there isn't because it can just be plunked down almost anywhere as a self contained unit.

Cheers!
Darren

_________________
Darren (Admiral Hawk)
In the not so tropical climate of the Great White North.


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 104 posts ]  Go to page Previous  1, 2, 3, 4, 5, 6  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 1 guest


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
