Could anyone give me an estimation as to what color the USS Hornet's (CV-8) flight deck was? I think it's blue, but I want to make sure. Any help welcome

_________________
"Going insane is how we keep our sanity"
-Ryan Smithson
* * * * *
IPMS# 46658

It should be deck blue 20-B. I spray a light tan first and cover it with the 20-B and try to weather a worn deck look.

According to this model in the gallery http://www.modelshipgallery.com/gallery ... index.html

The measure at that time period was MS 12 mod.

And here is a description of these colors.

http://www.shipcamouflage.com/measure_12_modified.htm

Timm

_________________
Timm Smith
Learn something new about the ship or your job every day. Ignorance is not bliss aboard a warship in wartime. Ignorance could cost the life of yourself, a shipmate, or the loss of the ship.
- Personal Information Booklet CV- 38

From here viewtopic.php?f=46&t=4866&start=165#p258355


The three vertical colors used on Hornet are Navy Blue 5-N on the lower hull and Ocean Gray 5-O on the upper hull. The island is Ocean Gray 5-O and Haze Gray 5-H, which is the lighter shade. Metal weather decks were Deck Blue 20-B except the flight deck, which was Norfolk 250-N Blue Flight Deck Stain (a similar shade). Interior of the hangar should be white vertical and overhead surfaces and Deck Gray #20 decks up the the threshold of the exterior openings. Deck Gray #20 was a neutral gray, all the exterior camo grays are actually blue-grays.

Timm

_________________
Timm Smith
Learn something new about the ship or your job every day. Ignorance is not bliss aboard a warship in wartime. Ignorance could cost the life of yourself, a shipmate, or the loss of the ship.
- Personal Information Booklet CV- 38

Flight Deck markings are probably the equivilent of 5-O Ocean Gray unless you're doing the Doolittle raid.

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman

I am doing the doolittle raid

_________________
"Going insane is how we keep our sanity"
-Ryan Smithson
* * * * *
IPMS# 46658

Looks brighter to me than 5-O... probably white. Just a guess though....

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman

The flight deck would have been 250N Norfolk Flight Deck Stain. It's a more vibrant blue than 20-B.

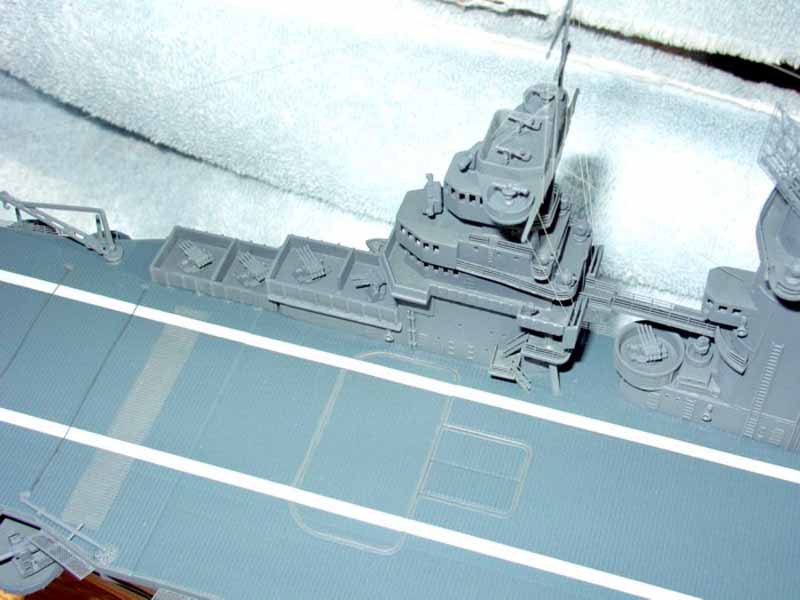

Here is how it looks on a 1/350 Trumpeter Lexington - the 20B is in the gun tubs and other horizontal surfaces.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Here is a color photo of Hornet's deck (Norfolk Blue 250-N)

_________________
Mike
