Tom,

True, to an extent - in this case the base of the kingpost is still somewhat of a mystery in that the two views I now have of the crane (side elevation/plan view) still leave a LOT to be desired in showing what's actually there and how it all fits together. I'm hoping for some detail sheets but that's not a given that they have those available.

In the meantime, I've gone ahead and redesigned a few of the associated parts and have just about completed the crane boom -

This is quite a bit different from my original model - and, with more details added. My original model did not have the Fair Lead Sheaves or the 10" Wood Block for the Safety Runner Ropes. I have plenty of scaled wood blocks that I will choose from in my parts dept. to use for this item. These views have also proved how many sheaves were in place (my original design was incorrect) and also shows a set that I wasn't aware of in the base of the kingpost. Those have all been redrawn to scale and await printing. The part I had called an "outrigger" is actually the Boom Head Assembly and I'm working on that now. There is an assembly detail drawing of that, but I don't know if the BB-55 archives has that available. It will certainly solve some questions if they do.

And, awaiting more paint in order to finish a couple of my other mini-builds.

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

I've received additional scanned drawings w/dimensions which make my last attempt an exercise in futility - again, close but no cigar! So, with the actual boom dimensions I've been able to accurately design this major piece of the puzzle -

This includes the two sets of Fairlead Sheaves which are mounted in a couple of the Diaphragm Plates to guide the cables thru the boom. I've also drawn up the boom ladder which I did not have on my first model. That's a separate design file. Both boom & ladder will have to (again) be split into two parts for printing purposes. I will next begin work on the Boom Head if I'm able to receive dimensioned drawings on that piece of equipment. I've now got properly scaled/dimensioned parts for the following items:
Boom Crane & Ladder
Boat Hoist Sheaves
Topping Sheaves
Whip Hoist Shock Absorber Assy.
Whip Hoist Swivel Hook Assy.
300-Watt Floodlight & Mounting Bracket

The Boat Hoist Block Assy. will require a complete redesign as the details & dimensions I've received show something quite different than the photos I was referencing show - this will be an interesting piece of gear to design and take some time to do so properly. The assembly & details are somewhat involved and not an easy piece of equipment to design - so this will take some time to construct.

Phil's suggestion re. the Bead Stringing Wire I'm looking into for this next version - I will try to find diameters that correspond to the scaled wire rope diameters. Seems like these products are fairly common.

One other interesting bit of lore is that these cranes (port/starboard) are exact mirrors of each other - the equipment layout is a flip-flop if you're looking at the plan view of the ship. I suspected that this SHOULD be the case, but until I saw an actual drawing of the cranes from overhead, I wasn't sure.

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Hank:

I would be surprised if the winches etc were mirrored, which might lead to other minor alterations port to starboard in the crane construction? But who knows?

Great that you were able to get update info on their construction.

Cheers from Sub Tropical NZ. Tom

Tom,

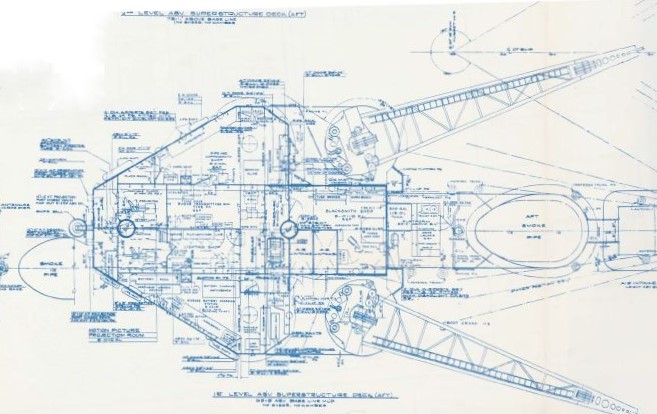

I can't answer that, but the equipment LOCATION was flip-flopped symmetrically - here's an overhead view of the cranes:
