carr

Post subject: Re: Calling all FFG Fans!

Posted: Fri Aug 14, 2009 7:35 pm

Joined: Sun Jan 04, 2009 1:31 pm
Posts: 1780

Last edited by carr on Tue Jun 06, 2023 5:31 pm, edited 1 time in total.

Top

carr

Post subject: Re: Calling all FFG Fans!

Posted: Fri Aug 14, 2009 8:58 pm

Joined: Sun Jan 04, 2009 1:31 pm
Posts: 1780

Last edited by carr on Tue Jun 06, 2023 5:41 pm, edited 1 time in total.

Top

Christian Bruer

Post subject: Re: Calling all FFG Fans!

Posted: Sat Aug 15, 2009 6:04 am

Joined: Tue Nov 21, 2006 7:44 am
Posts: 556
Location: Germany

Hi Bob,

very interesting photos, thanks for sharing!

_________________
Cheers,
Christian
_________________
AKA "Painter"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Tue Oct 13, 2009 1:38 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all after the long absence since last February,

And here we are again...

This week I was doing a couple of unpleasant things : I closed the hull, and it was not pleasant because there was a big gap, almost 1 mm., between the breakwater and the deck that could not be closed forcing the breakwater because it would be badly bent. I filled it with some stripes of strectched sprue soaked in glue, let it dry completely, cut the exccess with a blade and finished it with fine sandpaper. It was excellent, without a trace of gap or joints.

Attachment:

(160).JPG [ 141.59 KiB | Viewed 872 times ]

Attachment:

(161).JPG [ 163.36 KiB | Viewed 872 times ]

The other thing was the flight deck that I wanted to refine making good use of the reasonably big scale. The lines and equipment are no problem at all --only that the center line is for whatever reason displaced almost two feet to port-- but there is a big number of drills that are troublesome. apparently they are distributed following a fixed pattern, but if we cross a couple of pics it is clear that not of them are, because of the towing tracks.

I used this pic for doing the basic scheme :

Attachment:

(162).jpg [ 300.28 KiB | Viewed 872 times ]

And the scheme was basically like this :

Attachment:

(163).JPG [ 130.02 KiB | Viewed 872 times ]

And I completed it with this pic that shows the places covered by the Seaking.:

Attachment:

(164).JPG [ 217.9 KiB | Viewed 872 times ]

The general pattern is then like this :

Attachment:

(165).JPG [ 172.82 KiB | Viewed 872 times ]

The pattern must be 4mm. squares that suits perfectly to a 1/300 scale. It has some mistakes that I think are minor and that I hope will go unnoticed when the deck is painted.

I will make the drills when I have the handle I have ordered, using the plan attached to the deck.
It is necessary to observe that this pattern is valid for a Spanish FFG Santa Maria-class, and is not valid for an American FFG O.H.Perry, because the drilling pattern is quite different, as can be seen in a pic of USS McClusky :

Attachment:

(166).jpg [ 139.22 KiB | Viewed 872 times ]

And that´s all for today.
Very best regards from Spain,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 3:13 pm, edited 1 time in total.

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Thu Oct 15, 2009 3:51 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all,

As the handle for my drills has not arrived yet I thought I could make the capstan and the cable accessories, because these are thing that i can do with knife and file.

This is what had to be made :

Attachment:

(167).jpg [ 145.87 KiB | Viewed 872 times ]

And this is what I made :

Attachment:

(168).JPG [ 149.41 KiB | Viewed 872 times ]

Attachment:

(169).JPG [ 211.09 KiB | Viewed 872 times ]

Attachment:

(170).JPG [ 195.06 KiB | Viewed 872 times ]

The chain boxes are a bit too large, but I have to adapt to the chain, that in this scale is a bit complicated to find.

Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 3:41 pm, edited 2 times in total.

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Sun Oct 18, 2009 4:13 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all,

The work for today was to start the chopper and to finish the fo´cas´le. This fo´cas´le is very poor reg. details, and it needs to be completed as much as possible, to give it some smart appearance.

The fo´cas´le itself is like this :

Attachment:

(171).jpg [ 319.29 KiB | Viewed 872 times ]

Attachment:

(172).jpg [ 310.55 KiB | Viewed 872 times ]

The frames are made with Evergreen stripes, so that all of them are even, retouched with fine sandpaper. The process is quite boring, because, as all frames are to be seen together, they allow no mistakes, and the joints have to be exact. It was finished like this :

Attachment:

(173).JPG [ 212.85 KiB | Viewed 872 times ]

Attachment:

(174).JPG [ 211.07 KiB | Viewed 872 times ]

Attachment:

(175).JPG [ 218.6 KiB | Viewed 872 times ]

Attachment:

(176).JPG [ 191.74 KiB | Viewed 872 times ]

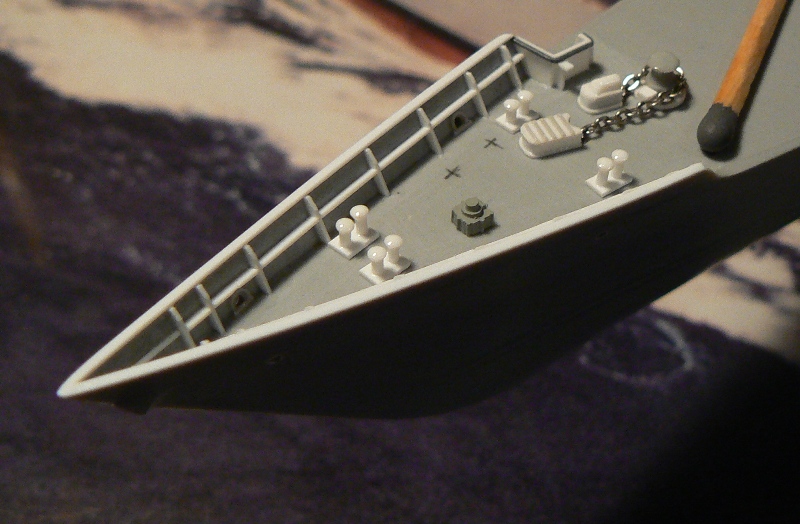

The macro pics show that not all frames are at even, so they will be retouched again.

The forepeak towing guide as a headache. It is one of those things that go unnoticed if they are well done, but will ruin the bows line if they are not, because there is no other detail to mask it. This is what had to be done :

Attachment:

(177).jpg [ 277.42 KiB | Viewed 872 times ]

I drilled a 1mm. hole, and made it wider with a file. Then I carved a piece of sprue till it was more or less the shape required, fixed it in place with lots of glue, let it dry for a whole day, and finished it with file and sandpaper. It is now like this :

Attachment:

(178).JPG [ 198.48 KiB | Viewed 872 times ]

Attachment:

(179).JPG [ 188.01 KiB | Viewed 872 times ]

Attachment:

(180).JPG [ 193.98 KiB | Viewed 872 times ]

I know it is not perfect, But I don´t want to temp fate...

I hope you like it, and very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 3:51 pm, edited 2 times in total.

Top

GTDEATH13

Post subject: Re: Calling all FFG Fans!

Posted: Mon Oct 19, 2009 4:07 am

Joined: Tue Jan 01, 2008 7:15 am
Posts: 1205
Location: ATHENS, GREECE

A muchawaited update... Awesome work as always... Especially with the towing guide... Very ingenious method... :thumbs_up_1:

Looking forward to more pics and updates...

P.S. Are the photos taken in Malaga harbour? It looks like the new part/extension of the harbour to me, after the lighthouse and the arena area... Really love Malaga... My favourite spanish city... :wave_1:

_________________
NIKOS (NICK)
ΜΕΓΑ ΤΟ ΤΗΣ ΘΑΛΑΣΣΗΣ ΚΡΑΤΟΣ
(GREAT IS THE NATION THAT MASTERS THE SEAS)

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Mon Oct 19, 2009 4:39 am

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi there GTDEATH13 and all,

Thanks for your kind remarks.
And yes, it is Málaga although these two specific pics were not made by myself. Your eyes are as sharp as can be for recognizing Málaga in such tiny details.

Very best regards from Spain,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 3:52 pm, edited 1 time in total.

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Mon Oct 19, 2009 3:10 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all again,

I have drilled today all the holes on the flight deck, using as a pattern the original plan --well, actually a copy-- carefully cut and placed on the flight deck as precisely as possible, then drilling directly through it :

Attachment:

(181).JPG [ 190.56 KiB | Viewed 872 times ]

The drill is a 0.6 mm. which is the most accurate I could find, and the result, after retiring the pattern, retouching each drill and refining with sandpaper is like this :

Attachment:

(182).JPG [ 159.2 KiB | Viewed 872 times ]

I think it is quite recognizable, and once painted in dark grey and with the white markings, all the little mistakes will go more unnoticed, I hope.

Very best regards from Spain,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 3:55 pm, edited 1 time in total.

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Fri Oct 23, 2009 8:24 am

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all once more,

Yesterday´s work was the chopper, that in these FFG´s of Spanish Navy is a Sh 60 sea Hawk. This type :

Attachment:

(183).jpg [ 122.95 KiB | Viewed 872 times ]

Attachment:

(184).jpg [ 54.94 KiB | Viewed 872 times ]

Attachment:

(185).jpg [ 192.78 KiB | Viewed 872 times ]

This is what the kit offers, with some obvious mistakes :

Attachment:

(186).JPG [ 172.28 KiB | Viewed 872 times ]

The first thing to do was to cover all windows and doors, and to close with plastic the gap between the tail and the fuselage. The rotor can be used if it is thinned with sand paper, the mechanism is detailed and an axis put in place, taking care that it is pretty horizontal so that it can be set in place on the helo without further problem. As can be seen in the shadows, this one is quite well equilibrated :

Attachment:

(187).JPG [ 187.85 KiB | Viewed 872 times ]

Attachment:

(188).JPG [ 214.11 KiB | Viewed 872 times ]

As to complete the rest, it is necessary to say that the models in the Spanish Navy are not the same versions as in the American Navy, so it is necessary to be careful with the pics to be used as a model. Awaiting for the final painting it is like this :

Attachment:

(189).JPG [ 202.07 KiB | Viewed 872 times ]

Attachment:

(190).JPG [ 185.21 KiB | Viewed 872 times ]

Attachment:

(191).JPG [ 164.14 KiB | Viewed 872 times ]

Attachment:

(192).JPG [ 173.73 KiB | Viewed 872 times ]

I hope you like it, and very best regards from Vigo,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 4:05 pm, edited 2 times in total.

Top

Sauragnmon

Post subject: Re: Calling all FFG Fans!

Posted: Fri Oct 23, 2009 11:19 am

Joined: Wed Dec 05, 2007 12:37 pm
Posts: 1111
Location: Smith's Falls, Canada

Absolutely massive details so far, Willie. Beautiful work on that chopper.

_________________
Die Panzerschiffe - Putting the Heavy in Heavy Cruiser since 1940.

It's not Overkill, it's Insurance.

If you think my plastic is crazy, check out my Line Art!
http://s37.photobucket.com/albums/e58/S ... %20Images/

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Mon Nov 09, 2009 5:35 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all again :

Yesterday´s work was the screw. It is a delicate point, because there are usually no pics of this area for obvious reasons, but I was lucky enough to find somewhere two quite clear pics.

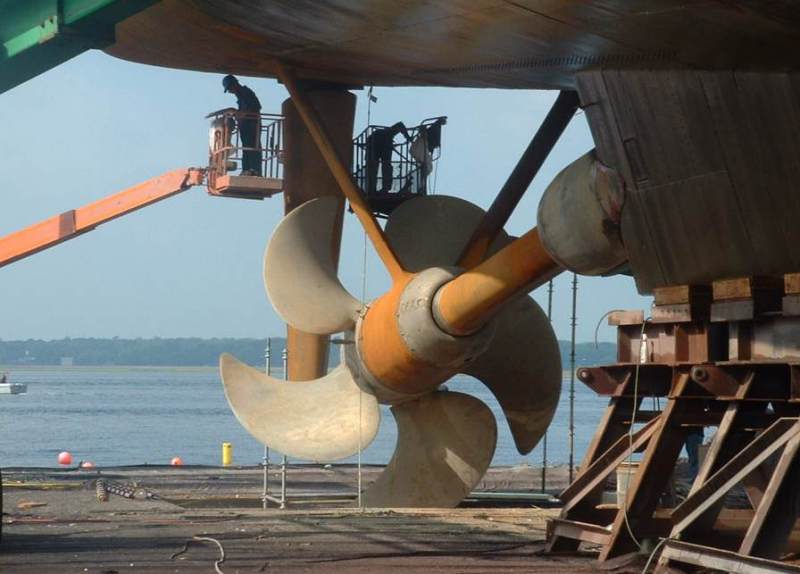

This is what has to be reproduced :

Attachment:

(193).jpg [ 42.17 KiB | Viewed 877 times ]

Attachment:

(194).jpg [ 48.89 KiB | Viewed 877 times ]

The pieces in the box are basically correct, but some details have to be added anyhow, and the usable elements have to be detailed as well. The shaft has a quite steep falling angle, and the support has to me modified accordingly, and the rudder has to be balanced to rectify the angle of the hull bottom. Quite simple.
The blades of the propeller have to be thinned, but there is not plastic enough to make the tips as they should be. I don´t think I am able to make a new propeller from scratch, so this time I will leave it as it is now :

Attachment:

(195).JPG [ 190.88 KiB | Viewed 877 times ]

Attachment:

(196).JPG [ 203.65 KiB | Viewed 877 times ]

I hope you like the overall view, anyhow.

Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 4:13 pm, edited 1 time in total.

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Sun Nov 15, 2009 8:09 am

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

Hi all,

Some friends in the Spanish forum and Tony Bunch in this thread made me see that the prop in this model is to rev. in the opposite direction, and not clockwise, as it should... and they are right... :doh_1:

So after this fiasco I had to revise the entire prop. I tried first to cut a whole blade set in a single piece using a yogourt container, but no way, those blades were not to be identical in all the years of my life :

Attachment:

(197).JPG [ 178.71 KiB | Viewed 877 times ]

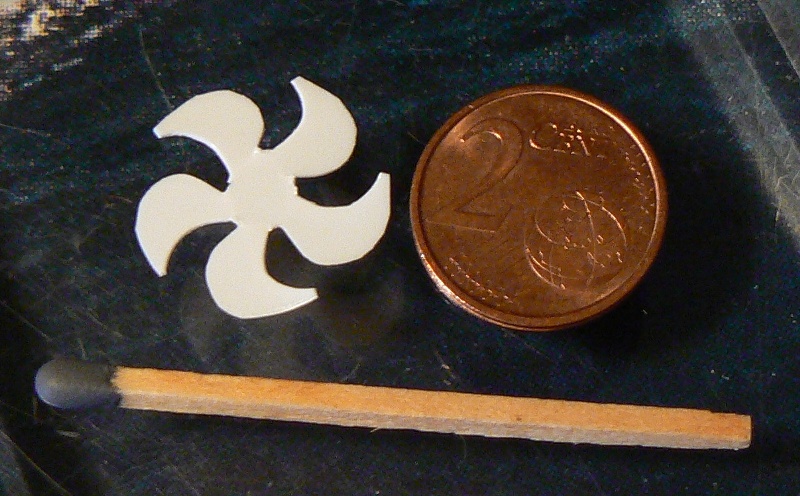

I tried then a second solution, that is to make each blade independently, cutting a pattern and reproducing it the necessary number of times until I had 5 more or less identical. I used this time Evergereen strip :

Attachment:

(198).JPG [ 198.92 KiB | Viewed 877 times ]

I managed to make this :

Attachment:

(199).JPG [ 167.92 KiB | Viewed 877 times ]

This prop corresponds quite nicely to the original piece, whose diameter we are going to assume is the correct one :

Attachment:

(200).JPG [ 176.2 KiB | Viewed 877 times ]

Compared with the first attempt I think it is quite more acceptable :

Attachment:

(201).JPG [ 213.53 KiB | Viewed 877 times ]

I managed to give the blades some curve, which makes them a bit more realistic, as can be seen in the original pics :

Attachment:

(202).JPG [ 154.34 KiB | Viewed 877 times ]

Attachment:

(203).JPG [ 242.47 KiB | Viewed 877 times ]

I made a correction to the rudder as well :

Attachment:

(204).jpg [ 37.68 KiB | Viewed 877 times ]

And as for now, with everything in place the result is like this :

Attachment:

(205).JPG [ 188.34 KiB | Viewed 877 times ]

Attachment:

(206).JPG [ 137.69 KiB | Viewed 877 times ]

I hope you like it, and best regards from Spain,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 4:27 pm, edited 1 time in total.

Top

Neptune

Post subject: Re: Calling all FFG Fans!

Posted: Sun Nov 15, 2009 8:17 am

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2429
Location: Belgium

Very impressive work you did there Willie. Love this thread, you have a lot of skill!!! Strange with a rudder off-centre... But well seen and corrected. :thumbs_up_1:

_________________
The merchant shipyard

Top

Tony Bunch

Post subject: Re: Calling all FFG Fans!

Posted: Sun Nov 15, 2009 12:41 pm

Joined: Mon Jan 10, 2005 5:22 pm
Posts: 1260
Location: Santee, CA

Hi Guys,
Willie,
Nice job sweet-heart!!!
In the words of a famous prophet whose name escapes me, "If first you don't succeed, try, try again".
Succeed you have my friend!!
The SH60 is too cool for school!
Tony

_________________
"You guys make this hobby fun!"
"Some of my dearest friends I have made right here on Modelwarships"

Top

orb

Post subject: Re: Calling all FFG Fans!

Posted: Sun Nov 15, 2009 4:24 pm

Joined: Sun Aug 24, 2008 6:06 am
Posts: 445
Location: 51°22′N 7°29′E

Fantastic work, Willie. Great to see all your efforts paying off so well. :thumbs_up_1:

_________________

Heiko S. | MY SHIPYARD | Under construction: JDS Takanami (Takanami Class Destroyer)

Top

Cadman

Post subject: Re: Calling all FFG Fans!

Posted: Mon Nov 16, 2009 9:08 am

Site Admin

Joined: Sat Jan 08, 2005 4:31 pm
Posts: 3577
Location: Plattsburg, Missouri

Wow, Willie, that is an incredible difference. Glad you fixed the props, they look much better than those in the kit.

_________________
Timothy Dike
Owner & Administrator
ModelWarships.com

Top

navydavesof

Post subject: Re: Calling all FFG Fans!

Posted: Mon Nov 16, 2009 9:32 am

Joined: Thu Mar 05, 2009 10:38 pm
Posts: 3127

Willie,

Wow, some great posts and craftsmanship here! What kind of camera do you use for your tight close-ups?

_________________
Proper Preparation Prevents Poor Performance

Top

Willie

Post subject: Re: Calling all FFG Fans!

Posted: Mon Nov 16, 2009 1:17 pm

Joined: Sat Apr 29, 2006 7:36 am
Posts: 679
Location: Vigo, Spain

navydavesof wrote:

What kind of camera do you use for your tight close-ups?

Hi Navydavesof and all,

Thanks for your remarks. My camera is a Panasonic Lumix DMC-FZ7, quite a compact thing, but very good, IMHO.

And something else I have tested : the prop has resulted to be hydrodynamic --or aerodynamic at least, when blown at at a close distance !!!!:

Attachment:

(207).JPG [ 126.86 KiB | Viewed 863 times ]

Very best regards,

Willie.

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Last edited by Willie on Sat Oct 12, 2019 4:31 pm, edited 1 time in total.

Top

pingjockey

Post subject: Re: Calling all FFG Fans!

Posted: Tue Dec 01, 2009 5:53 am

Joined: Sat Jan 22, 2005 6:54 am
Posts: 275
Location: Connecticut

Looking great Willie!

_________________
Scott

Top

Page 8 of 27

[ 531 posts ]

Go to page Previous 1 ... 5, 6, 7, 8, 9, 10, 11 ... 27 Next

Board index » ModelWarships.com general forum » Calling all Ship Fans » CASF » Destroyers and Frigates

All times are UTC - 6 hours [ DST ]

Who is online

Users browsing this forum: No registered users and 58 guests

You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
