The profile labelled 1912 looks about the same as the 1920's profile, to my eye but will compare more fully when I print both up. Will be interesting what other documents are placed online.

You're a scholar & a gentleman, thanks again.

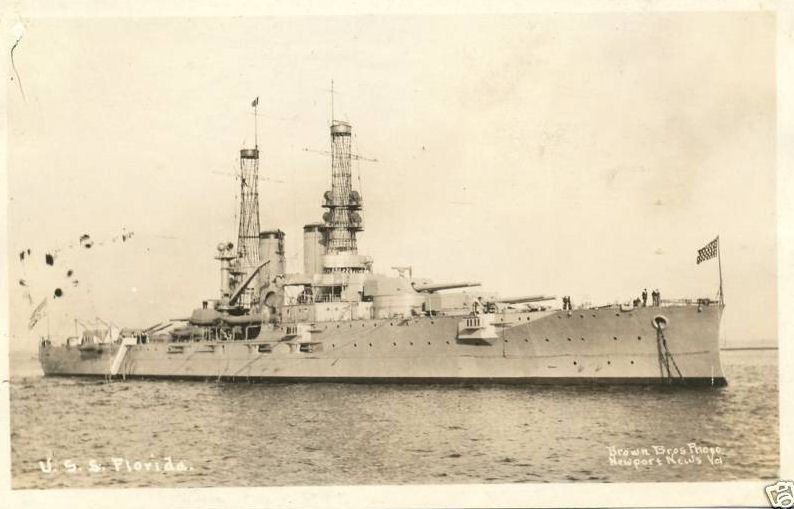

I scanned plans of Florida at the archives. While looking to see what version they were, I found this (haven't found the plans yet)

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

That appears to be early on in her career (1912'ish), overhead plans would be stellar if they still exist. Building the model in a more as launched form will alleviate recreating some pretty challenging rigging.

Can't seem to post direct links or attachments (user ineptitude no doubt), but I think you can paste the following and it will take you to a great shot of her conning tower & foremast base area. The lower navigation level and the one just above are the two I'd need clear drawings of.
https://www.history.navy.mil/content/hi ... 54168.html

Really appreciate all the assistance.

Cheers

Seeking some feedback/thoughts/reference material on the USS Utah AG-16 as she was on 12/7/1941. I have found photos of her wreck showing large portions covered in some sort of solid concrete/cement like coating. In "Forgotten Casualty: USS Utah at Pearl Harbor and her Memorial" by Anthony Tully, he states "In time, it was found that the 100-pd water bombs dropped on her in practice would sometimes freeze, increasing the damage to the teak decks. To help protect them, patches of concrete were poured over the areas of the deck most often struck. (Contrary to most reports, cement was laid only in patches, and did not cover all the deck)." I have studied several images of her salvage and her wreck from time periods ranging from her partial righting in 1944 to current day, and I feel that the deck forward of the super structure was completely coated back to the first 5/25 on the starboard side and the 01 deck as well. I feel evidence shows that aft of the 01 deck this was exposed wood decking. There is a NPS Dive video where wood planking can be spotted and if the video has not been edited, it is aft around turrets 4&5. So was just the forward portion of the ship coated? I feel the patches could be picked out in her August 1941 PSNY image, but yet the deck seems very uniform on the exposed starboard side. You can make out the dividing line as seen in her wreck images and even see what appear to be non slip strips heading forward of the 5/25. Aft on the main deck, you can pick out areas where there seem to be rows of lines that indicate planking. So that leaves us with something like this in appearance,

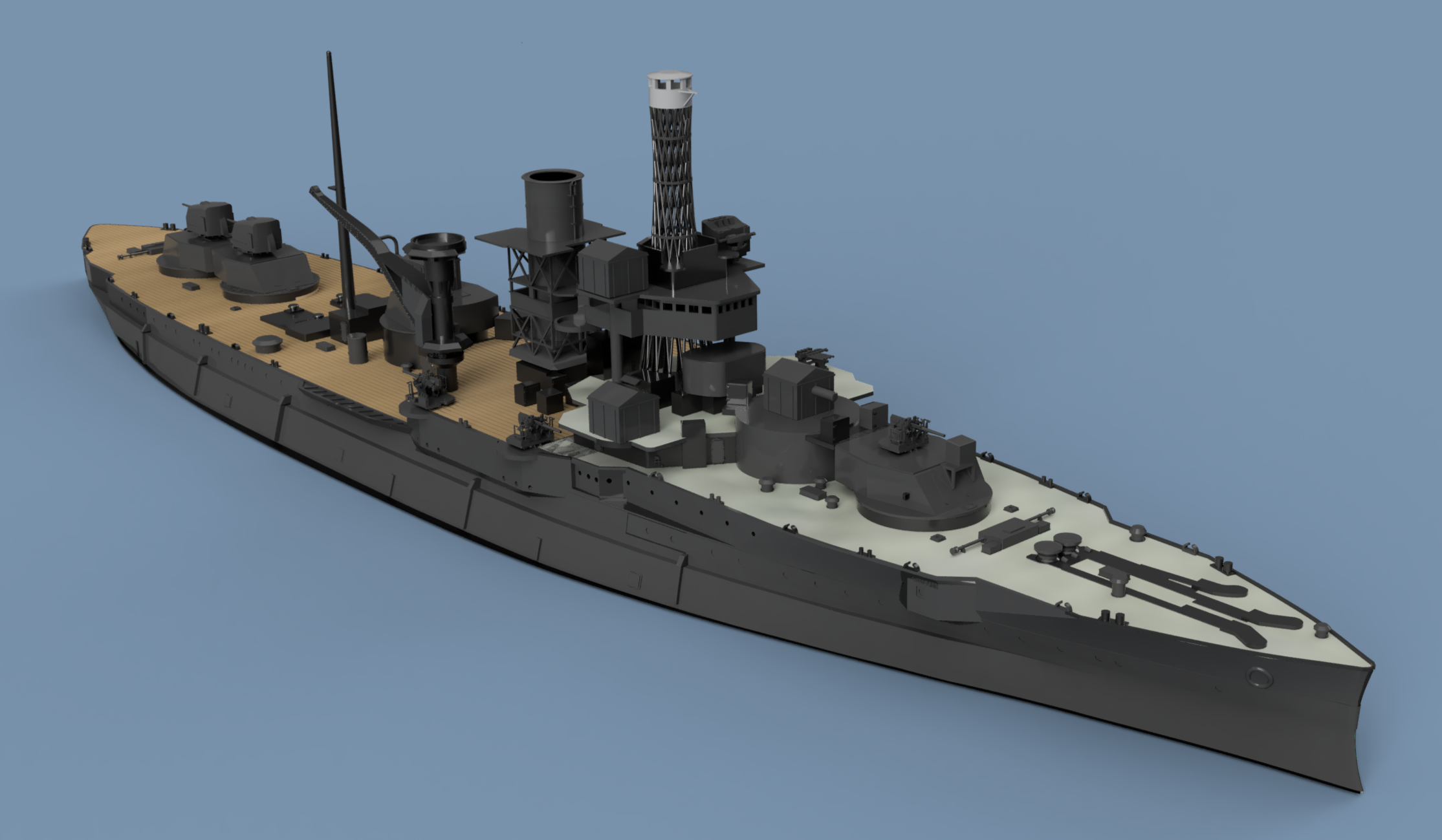

In progress 3D Model

Anyone with any better references to how this actually looked or exact areas where it was applied? I attempted several years ago to go through NARA in Seattle in hopes to locating something from PSNY where her last refit was done, but nothing was found. I am awaiting some microfilms from NARA that allegedly hold details about UTAH in her AG-16 fit, but there were many changes over her time spent as an auxiliary and dating can often be off, so not sure how much help they will be.

Looking forward to hearing some thoughts,

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Hi Matt,
I think your conclusion looks pretty spot on. I was always under the impression that the entire deck was also covered with wooden planks as well. Any idea if this is accurate?
Jeff

Matt,

I concur with your conclusions.

Jeff,

In the books "Resurrection: Salvaging the Battle Fleet at Pearl Harbor" and "Descent into Darkness" they both indicate needing to clear away timbers that had floated free from Utah's deck after she rolled over. They indicated the deck was covered in these timbers usually when she was used for bombing practice

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

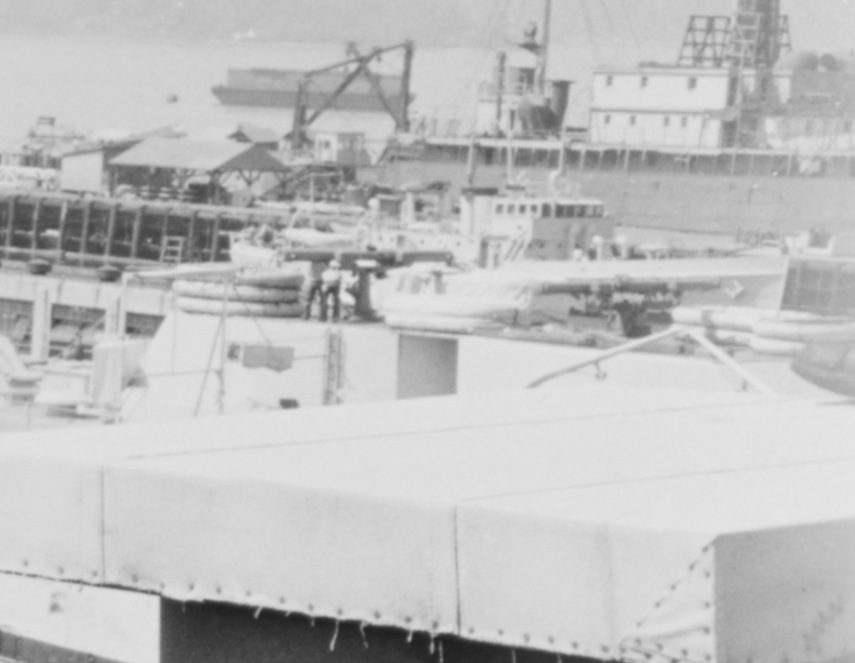

So the quest to understand the Utah in her final fit continues. Clearly visible in her August 1941 refit image, we see a canvas covered object on the roof of former Turret #3. I have seen several references to her carrying a "gun director" amidships. The image looks to be about the shape and size of a 12ft Rangefinder that Utah and many other USN BB's of her vintage carried, but my question is why? These directors were used to help guide the main battery and if used for secondary batteries, it would have been the 5/51 guns for surface action. Utah at this stage in life was a AA training ship, she mounted a MK19 AA director (Older 2 part type) and a MK33 director. Why would she carry a director for which none of the AA guns she carried utilized? I began to wonder if perhaps it was a MK44 since the Utah carried 1.1's, but I don't feel it quite fits the profile we are seeing. Anyone have any thoughts? It has been recently installed as she did not have it there in 1940, so it wasn't just a hold over?



Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

it is a 12' range finder & she has 2x 5"/30 cal gun mounts on the stern so range finder maybe used for them.

She had 4-5/38's, 2 in enclosed mounts on old Turrets 4&5 and 2 open on the Port side amidships opposite of the 5/25's. While I do suppose the 12ft rangefinder could be used, seems an odd pairing as it would not be one found on other ships I am aware of. The MK33 on the Port Bridge wing would have served the purpose of both Surface and Aerial ranging and direction for those mounts.

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

You are overlooking the possibility that she was also training men to use the rangefinder, not just the guns.

Dick,

I thought of it, absolutely a very real possibility. Just with her focus being on the AA training, felt a lone antiquated(but yes in 1941 still very in use) surface Rangefinder seemed out of place.

However-

It appears I need to take back my previous comment about the Rangefinder not being there earlier than this refit. I located an image that shows the Utah being prepared for her final refit in June of 1941, and much to my surprise she sports not one but two Rangefinders. It does not show the Rangefinder in question as the former #3 turret can't be seen, but on former Turret #4 and #5 there are clearly two types mounted. So very real possibility that she was being employed in training or equipment evaluation and one of these could have been relocated amidships or another one was already there and just can't be seen.



So the quest continues.....

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Hey Matt,

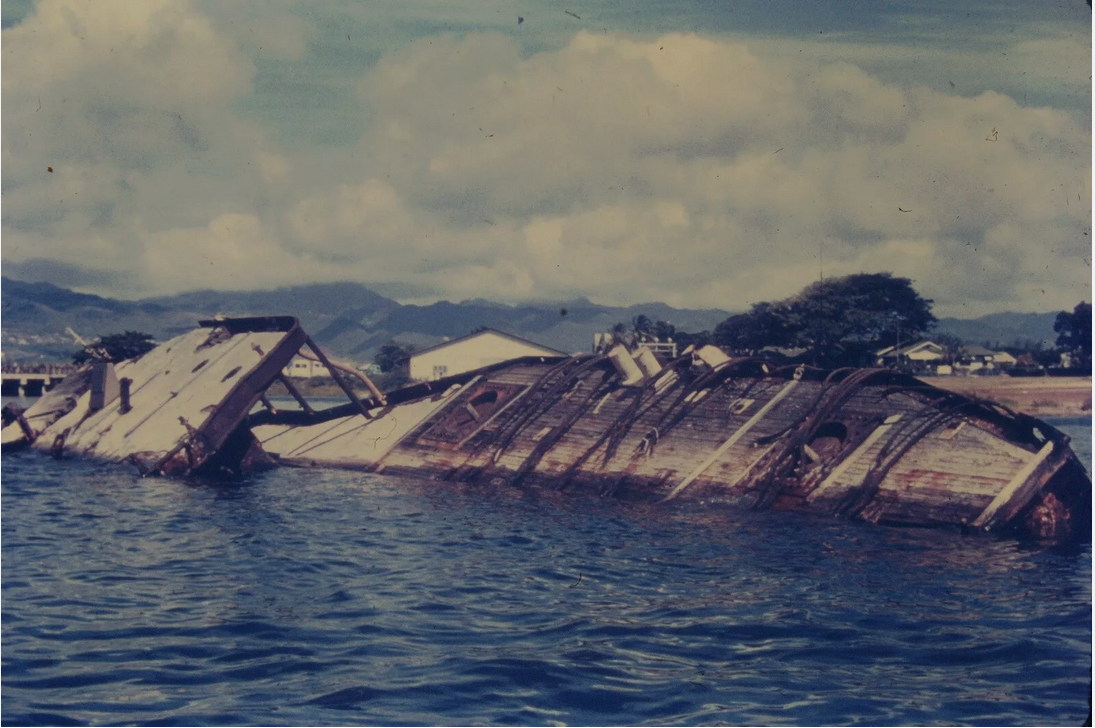

Here is a decent look at the concrete decking in 1965.

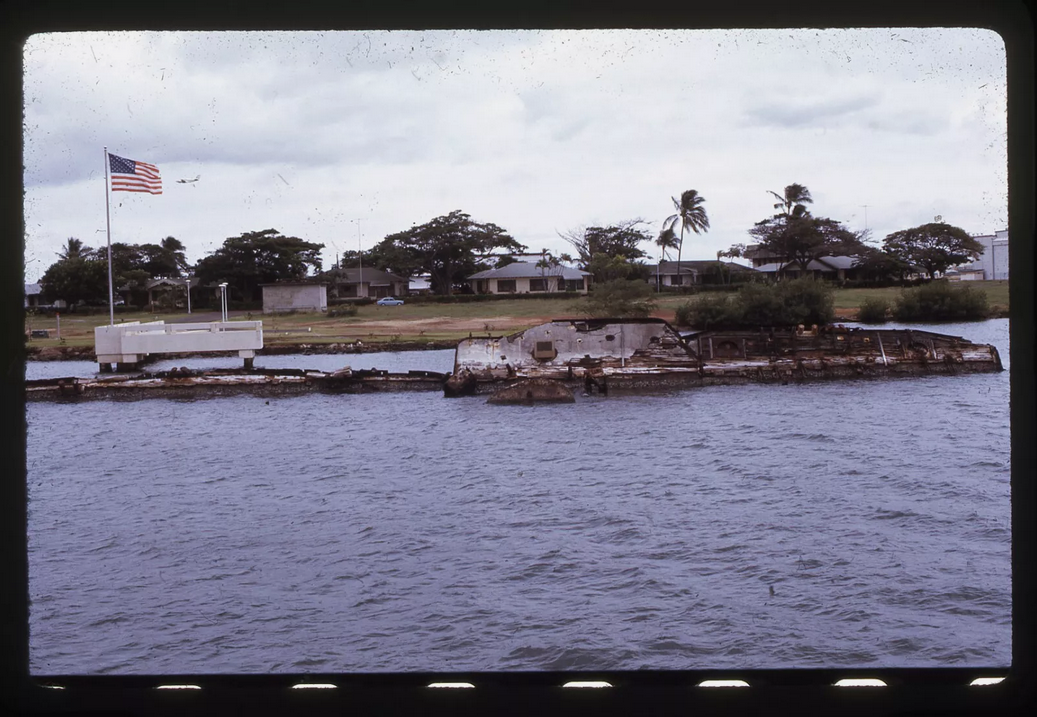

...and in 1972

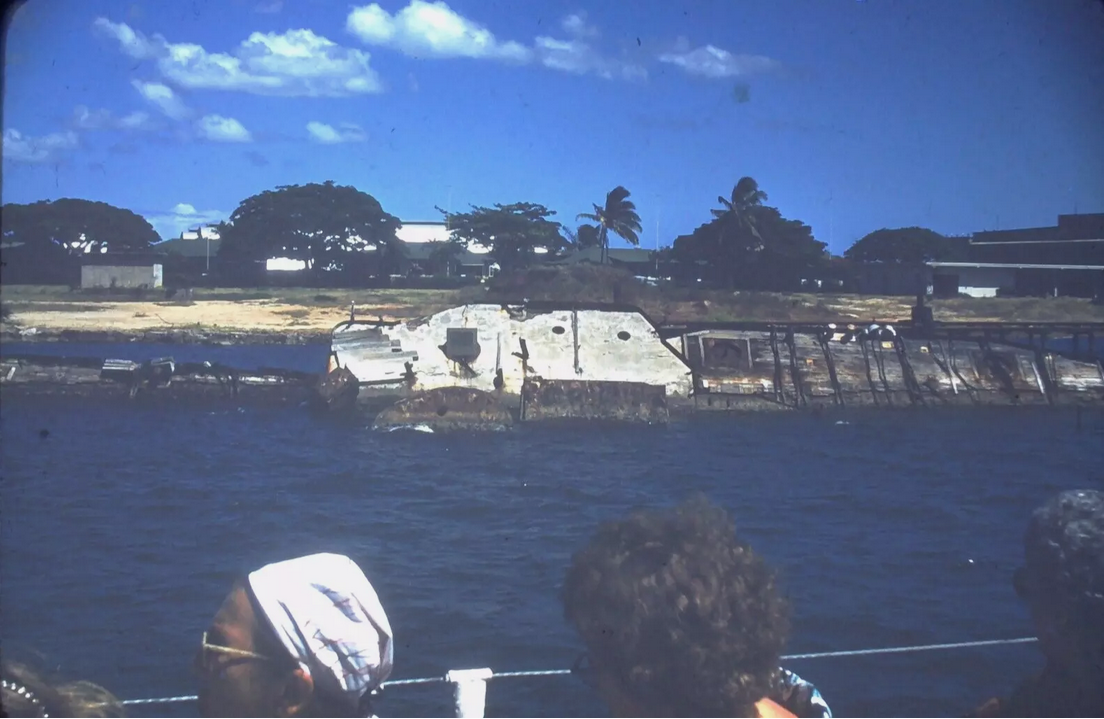

...and one dated 1955.

Jeff,

Thanks for sharing! The 1955 shot definitely supports the covered forecastle.

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Great photos, Jeff! Thanks for sharing.

_________________
Thanks,
Jim

The more I learn, the more I realize how little I know.

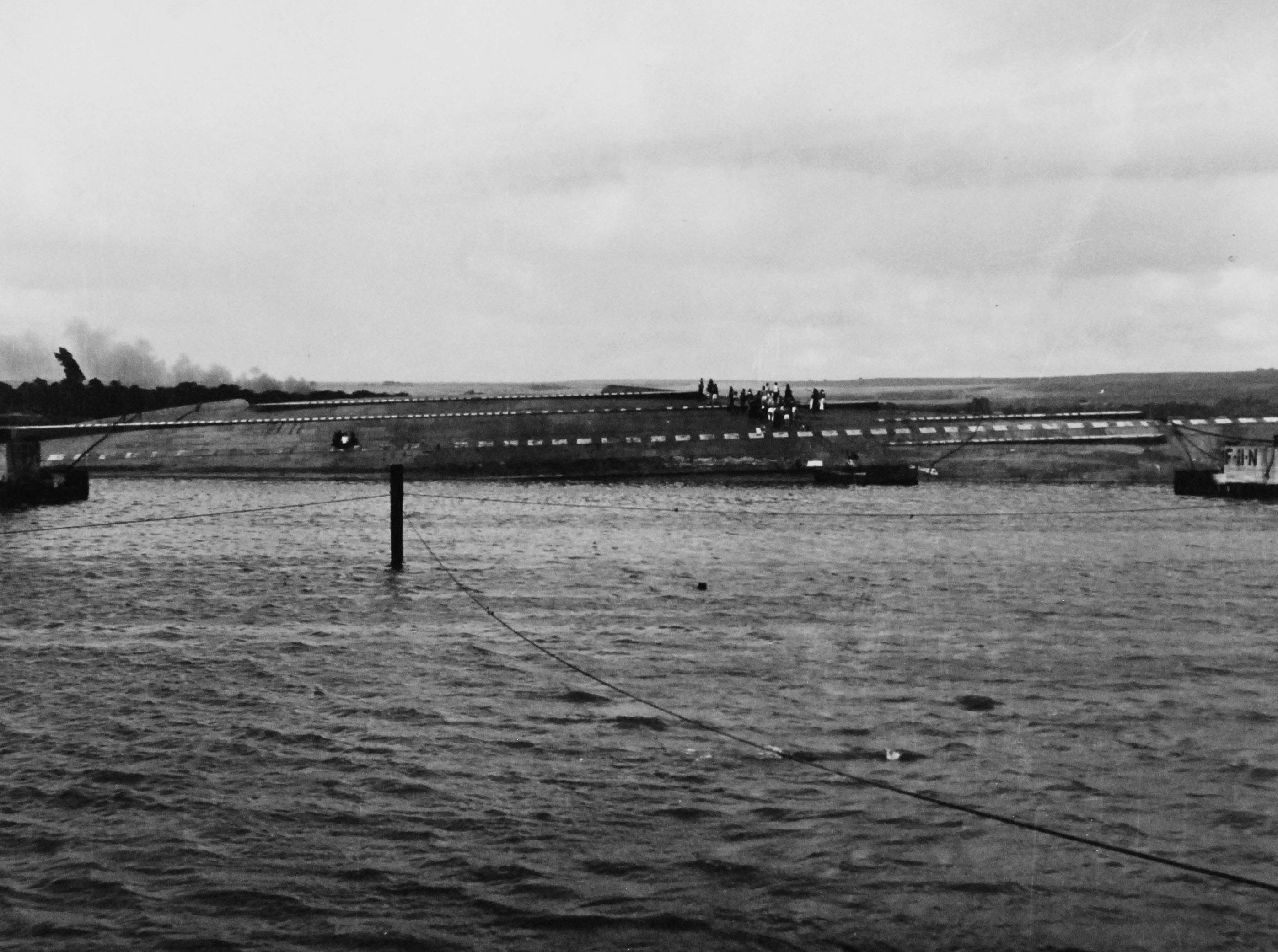

Recently a picture was posted on eBay for sale and it was of the Utah after she overturned and teams are working to cut through he hull to rescue survivors. Seems like I have seen this image a thousand times, but this time something jumped out at me- Rows of dash marks along the length of the hull. I did some investigating thinking that the picture was taken at latter date during salvage and these were markings for frames and found the picture to not taken later. It is actually 80-G-19950 and it appears to have been taken the day of the attack as rising smoke can still be seen in the background and after closer inspection of other photos taken right after the attack we see them there. What are they? We know Utah was in Drydock at PSNY during the summer of 41, are these marking from her drydock blocks that never got painted?
Thoughts?

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

I think those painted areas enable the hardhat divers to see them so that they can give the surface course adjustments so that the ship settles onto the blocks at those locations.

You are probably correct. Once the keel blocks are set in place, the drydock is filled and the ship is moved into the drydock. Lines on both sides & ends are adjusted accordingly to the dockmaster's plan for the exact location of the ship. The water is slowly pumped out and lines are adjusted as the ship lowers to settle on the blocks. The blocks are stationary, the ship is moved as needed. There are no divers involved that I've ever heard of. The ship's position is moved by the personnel on the drydock, not in it. I don't think drydocking methods had changed between the 1940s & 1960s and more than likely is the same today.

Hope this helps!

Edit - To be a bit more specific, the lines from the drydock to the ship are on wheeled reel cars which move up/down the drydock walkway as directed my the dockmaster. Surveyor transits are used to pinpoint the exact location of the ship per the docking plan (and location of the blocks below) and readings are taken throughout the process to guide the ship to its proper location on the blocks.

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

I've been curious about those "white blocks" as well... I'll look through some of my references and try to find an answer. Until now, I have assumed they were some sort of "pad" between the docking keels and the blocks in the dock, as I have seen a reference to that somewhere...now, I just need to re-find that reference!

_________________
Thanks,
Jim

The more I learn, the more I realize how little I know.

Came across this tonight by accident. While no new details of her fit can be found, it is still a a visually interesting interactive video.

https://tapestry.cyark.org/content/uss-utah

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Work on my 3D model of the Utah got sidetracked for sometime, been almost year since working on it

But took a few minutes to knock the digital dust off and add a few details. I would say she is about 70% done, still a lot of minute details and most of the Port side details yet to add.




The mystery of her Concrete deck still haunts me, I feel I have it as photos support, but so much is still in question. Looking at the wreck images, I am beginning to believe that the concrete was carried aft further around the 5/25's. Nothing concrete(see what I did there?) but a feel that I get from images taken of the wreck that it may have been removed during the righting process.

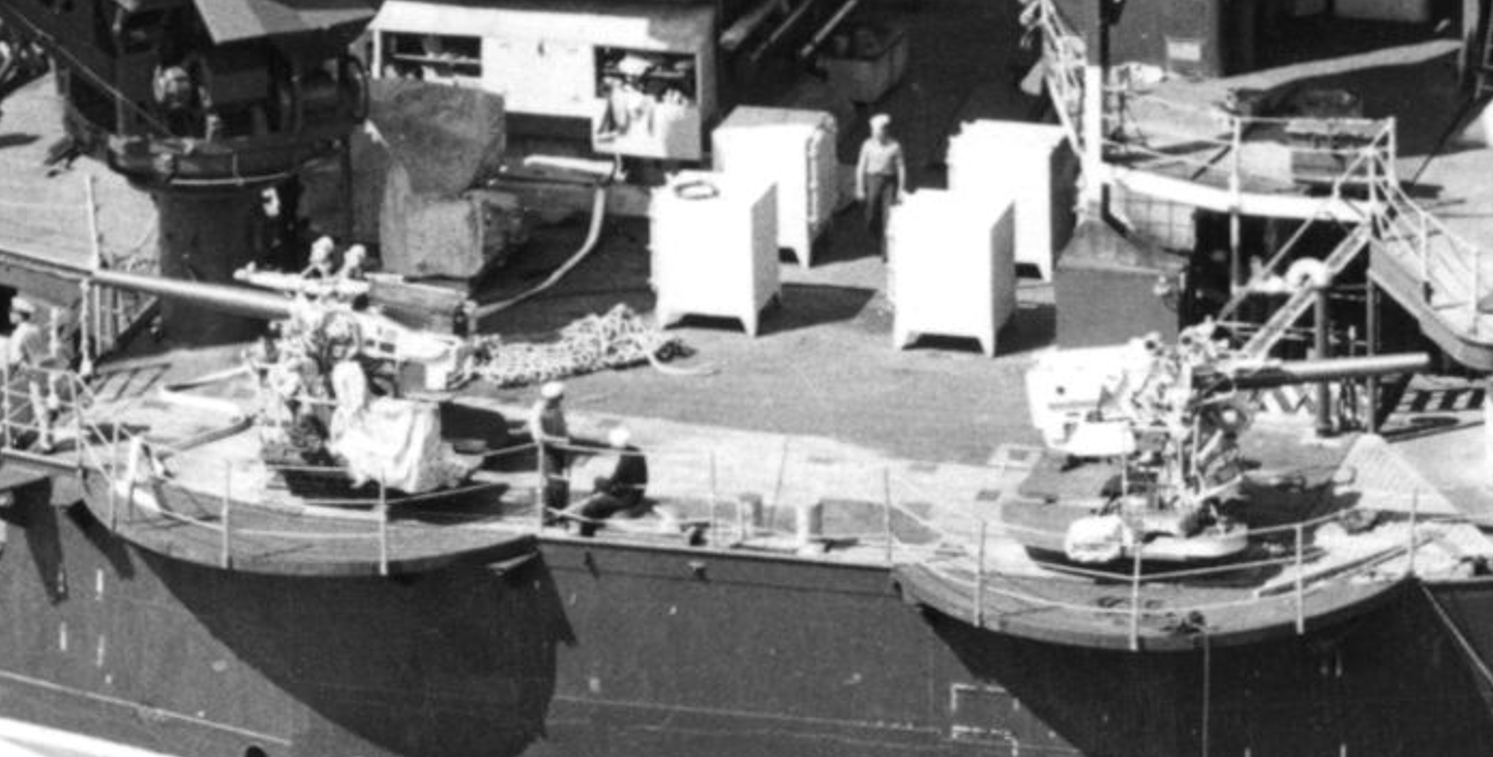

This image captures what makes me think it was there. Around the square base of the 5/25, there is a wood frame or margin plank. While these are not unusual around fittings, this one is clearly raised which is odd as they were usually flush with the deck. One then also needs to ask why there would be the need for a raised plank frame around something that would be covered by the base of the gun mount? I believe this was there and at one point surrounded by cement which would have made this flush and made it easier if the mount were to be removed later as this foundation would not be cemented in. We see the righting cables draped across the hull which this operation could have necessitated the removal of the concrete or knocked it loose.


The tone difference has made me wonder in this image as well, Just forward of the 5/25 on the right we see the dividing line that is visible in the wreck images where cement becomes wood. But there is clearly two very different tones here, shadows are evident, so don't believe it to be that. There is a hose just behind the 5/25 on the left, so it's possible it is a wet deck which would help explain the uneven shape of the darker area but then we look just behind the breech of the right 5/25 and see an almost perfect square that stands out if it were just random wet deck. So not sure if I want to extend the cement deck further aft or as this image may suggest, just around the 5/25's themselves. Any one else care to take a stab at what we are seeing?

Matt
