Dutch company Artitec produces quite a few well-done resin ship kits in the standard train modeling scales. I picked up this little guy at the local model train show, after seeing how nice board member Elmarriachi's coaster Noordborg came out.
The instructions suggest it depicts a MS Forelle and/or Isabelle, but I've been unable to find information on a ship that resembles the kit's. If anyone has any clues, I'd love to know!
Anyway, onto the quick photo review of the kit:
Artitec 1/160 Passenger Ship
Moderators: MartinJQuinn, JIM BAUMANN, Timmy C, HMAS, ModelMonkey
-
Timmy C
- Posts: 12444
- Joined: Mon Jan 10, 2005 6:00 pm
- Location: Ottawa, Canada
Artitec 1/160 Passenger Ship
- Attachments
-
- Boxart - note the flap on the side showing how thin the box is. Everything's crammed and jammed with packing peanuts. Really snug.
-

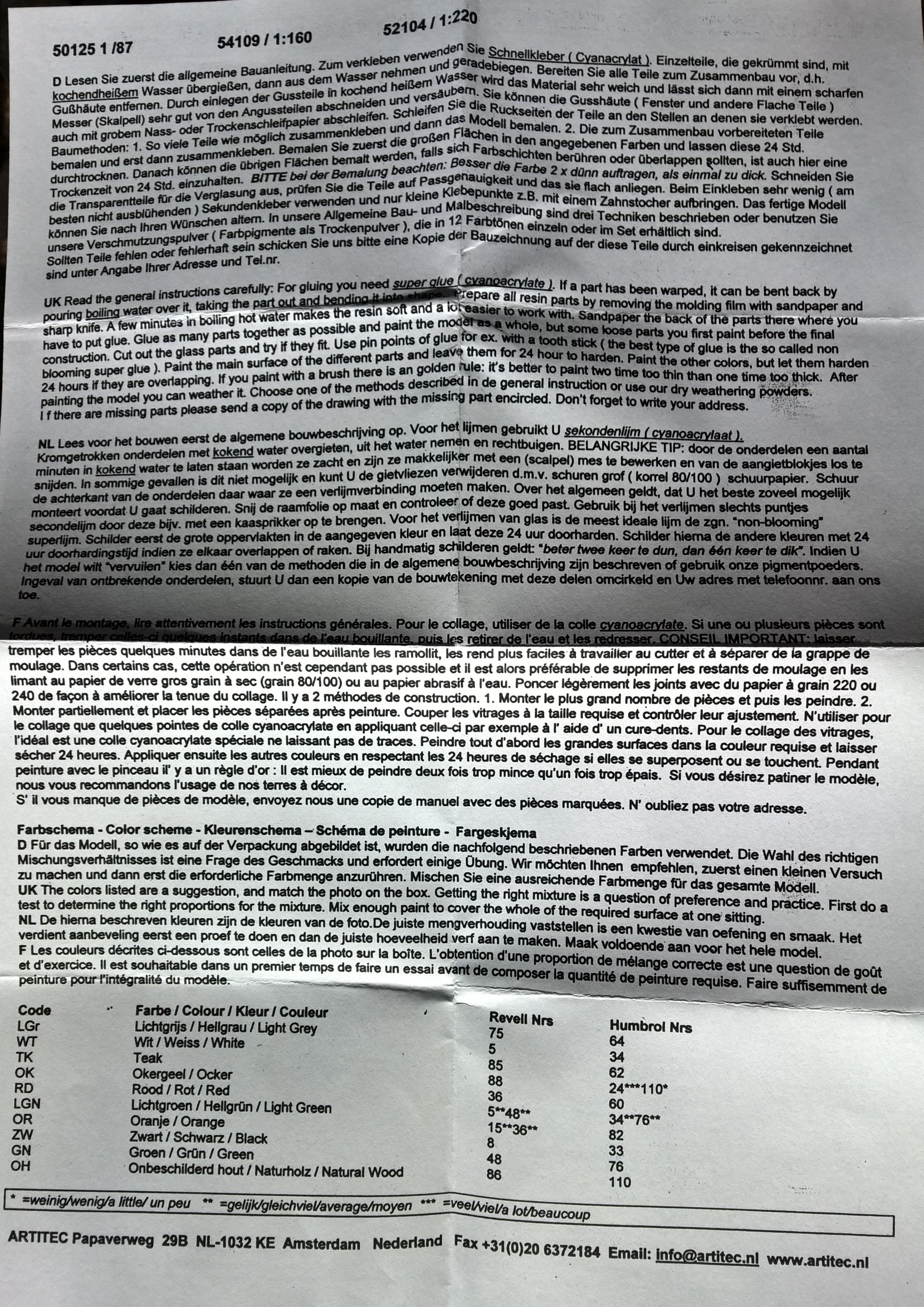

- First page of instructions - all that text is just various translations of basic resin/multimedia kit procedures, nothing on the subject itself. Paint references at the bottom.
-
- The second page of the instructions show steps for all three scale variants of the kit - really cramped, but should be just barely sufficient. Artitec's website has a few close-ups of the 1/87 scale kit built up for reference.
-

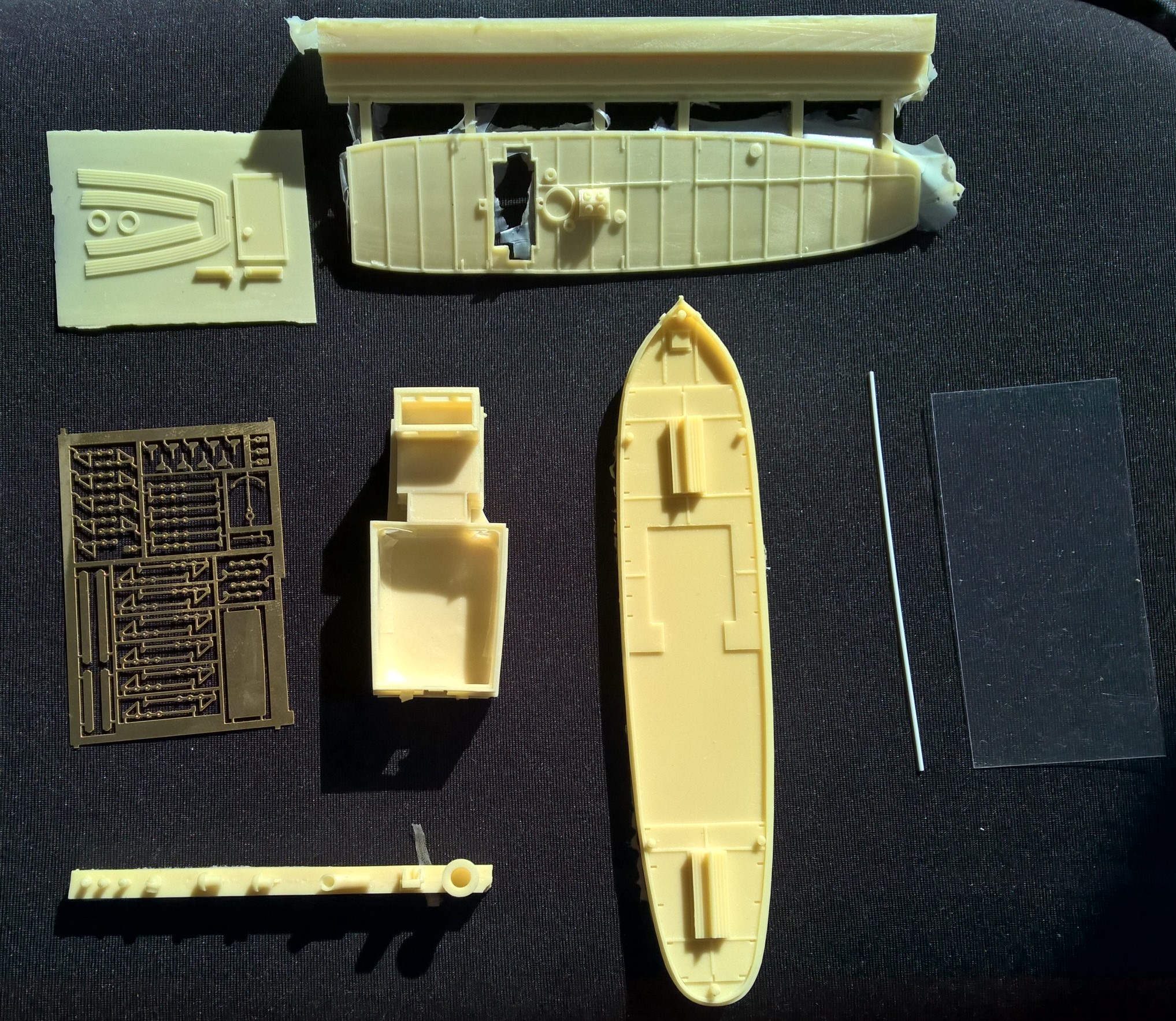

- Overview of all the parts that come in the box. Styrene rod for the flag poles on the right, as is a piece of clear acrylic for window glazing. The PE is nice, but the holes in the lifeline stanchions are not etched all the way through, so some work will have to be done to allow lifelines to be rigged.
-

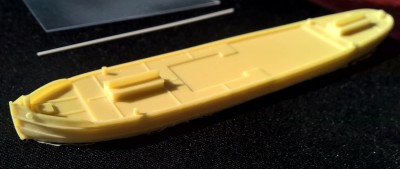

- Hull's nice and neatly cast, with some of the deck chairs molded on.
-

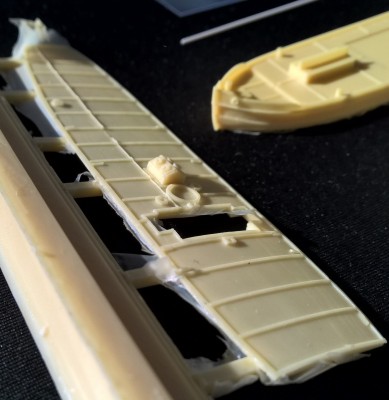

- This is the upper "deck" providing shelter for the passengers on the main deck. With no references, I can't tell whether this was all metal or if parts overhanging the main deck were canvas.
-

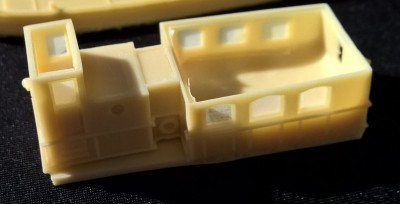

- Deckhouse. Nice and sharp, a film of resin covers the windows so they could be removed from the mold. Scraping them open and adding the clear glazing should be easy. Lots of room for interior detailing should you desire.
-

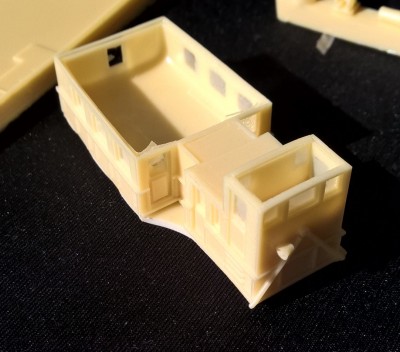

- Another view of the deckhouse.
-

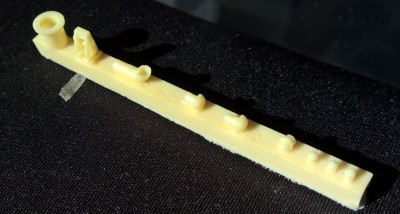

- Fittings. Funnel, cowl vent, anchor winch, and lights/lanterns.
De quoi s'agit-il?
-
wefalck
- Posts: 2082
- Joined: Wed Sep 28, 2011 12:04 pm
- Location: Paris
- Contact:
Re: Artitec 1/160 Passenger Ship
These Artitec are indeed very nicely made, to the limit of what can be done with a commercial resin kit. This means that there is still room for improvement
See also: viewtopic.php?f=59&t=152611
See also: viewtopic.php?f=59&t=152611
Eberhard
Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
